Powerful 4kW Universal Cylindrical Grinding Machine UG-200 G-320 for Precise Grinding
Price:
$50,000.00/sets 1-2 sets
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
TIMAC
Product Description

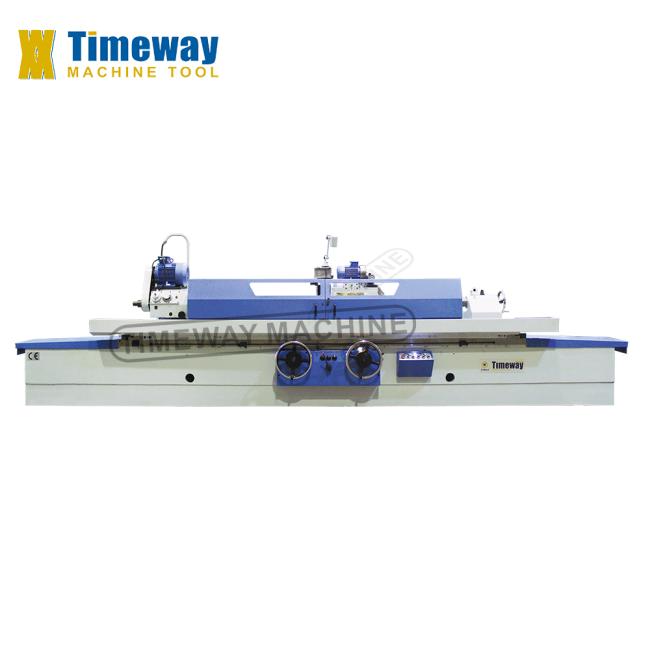

Universal Cylindrical Grinding Machine UG-200, G-320
| Model | Unit | G-200 | UG-200 | G-320 | UG-320 | |
| General capacity | ||||||
| Distance between centers | mm | 500/750 | 500/750 | 1000/1500/2000/3000 | 1000/1500/2000/3000 | |
| Center height | mm | 135 | 135 | 180 | 180 | |
| Dia. Ground (O.D) | mm | 5-200 | 5-200 | 8-320 | 8-320 | |
| Dia. Ground (I.D) | mm | - | 25-100 | - | 30-100 | |
| Max. length ground (O.D) | mm | 500/750 | 500/750 | 1000/1500/2000/3000 | 1000/1500/2000/3000 | |
| Max. length ground (I.D) | mm | - | 100 | - | 125 | |
| Max weight of work piece | Kg | - | 100 | 150 | 150 | |
| Workhead | ||||||
| Swiveling angle | ° | - | +90 ° | - | +90 ° | |
| Center taper (MT) | MT | 4 | 4 | 5 | 4 | |
| Spindle speed | r/min | 50HZ:25-380 | 50HZ:25-380 | 26,52,90,130,180,260 | 50HZ:25-220 | |
| Wheel head | ||||||
| Wheel spindle speed | rpm | 1335 | 1670 | 110 | 1670 | |
| Wheelhead rapid travel | mm | 50 | 50 | 50 | 50 | |
| Max. travel | mm | 205 | 205 | 235 | 246 | |
| Swiveling angle | ° | - | ±30° | - | ±30° | |
| Wheel size(ODxWxID) | mm | 500x50x203 | 400x50x203 | 600x63x305 | 400x50x203 | |
| Peripheral speed | m/s | 35 | 35 | 35 | 35 | |
| Internal grinding device | ||||||
| Spindle speed | r/min | - | 10000 | - | 10000 | |
| Wheel size | mm | - | Max:35x25x10, Min:17x20x6 | - | Max:50x25x13, Min:17x20x6 | |
| Table | ||||||
| Hand feed per. rev | mm | 6 | 6 | 6 | 6 | |
| Max. swiveling angle | clockwise | ° | 3 ° | 3 ° | 3 °(1000/1500)/2 °(2000/3000) | |
| anticlockwise | ° | 9 °(500)/8 °(750) | 7°(1000)/6°(1500)/5°(2000)/3°(3000) | |||
| Longitudinal feed speed | m/min | 0.1-4 | 0.1-4 | 0.1-4 | 0.1-4 | |
| Tailstock | ||||||
| Center tape (MT) | MT | 4 | 4 | 4 | 4 | |
| Quill travel | mm | 30 | 30 | 30 | 30 | |
| Motor | ||||||
| Wheelhead motor power | kw | 5.5 | 4 | 11 | 5.5 | |
| Internal grinding | kw | - | 1.1 | - | 1.1 | |
| Workhead motor power | kw | 0.75 | 0.75 | 0.75/1.5 | 1.5 | |
| Machine | ||||||
| Gross weight | T. | 4/4.2 | 4.1/4.3 | 5.3/6.1/7.9/9.9 | ||
| Packing dimension | cm | 260/300x203x205 | 260/300x203x205 | 322/422/540/739x200x205 | ||
