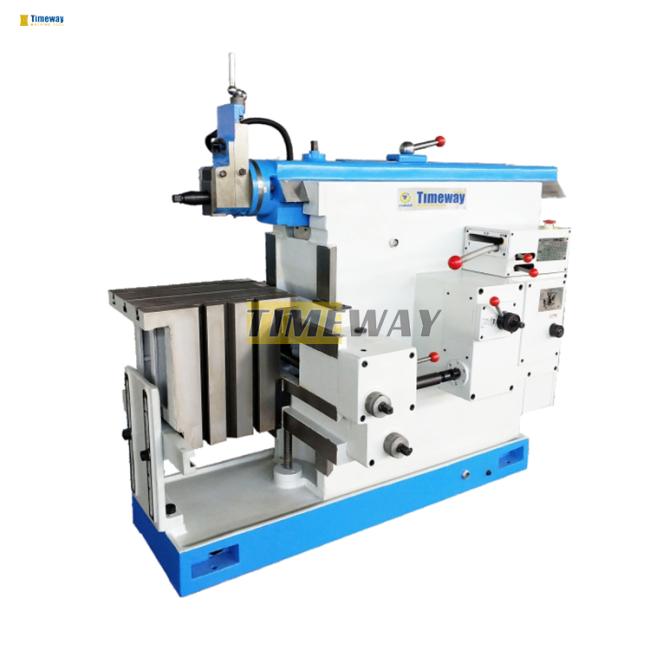

Mental Shaping Machine SM-500 for benefit 1943x1160x1533 mm within Garment Shops
Price:
$9,500.00/sets 1-2 sets
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
TIMAC
Product Description
Product Description
Features:
1. This machine is designed for shaping plane and formed surfaces.
2. If used for shaping plane surfaces, T-slots and dovetail slots, etc.
3. On narrow and long workpieces, the machine will obtain much higher productivity.
4. With the equipment of a special vice or a dividing head, the machine can be send for processing the end surfaces and slots with equal distance on cylindrical or rectangular workpieces.
1. This machine is designed for shaping plane and formed surfaces.
2. If used for shaping plane surfaces, T-slots and dovetail slots, etc.
3. On narrow and long workpieces, the machine will obtain much higher productivity.
4. With the equipment of a special vice or a dividing head, the machine can be send for processing the end surfaces and slots with equal distance on cylindrical or rectangular workpieces.
Specification | Unit | SM-500 | |||
Max. Shaping length | mm | 500 mm | |||
Max. distance from lower edge of ram to table | mm | 370 mm | |||
Max. travel of table (Horizontal/Vertical) | mm | 525 mm/270 mm | |||
Max. swivel angle of table (Without vice/With vice) | ° | ±60° | |||
Max. vertical travel of tool head | mm | 120 mm | |||
Frequency of ram stroke | times/min | 15, 20, 28, 40, 56, 80 times/min | |||
Table feed per ram stroke | |||||
Pawl riding over 1 ratchet tooth (Vertical/Horizontal) | mm mm | 0.0845 mm/0.133 mm | |||
Pawl riding over 10 ratchet teeth (Vertical/Horizontal) | mm | 0.845 mm/1.33 mm | |||
Motor | kw | 3 kw | |||
Packing size (LxWxH) | mm | 2000x1250x1400 mm | |||
Net weight | kg | 1650 kg | |||
Gross weight | kg | 1760 kg |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
