High Accuracy Vertical Machining Center CNC Milling Machine 550 mm Vertical Travel
Price:
$38,900.00/sets 1-2 sets
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
TIMEWAY
Product Description
Products Description

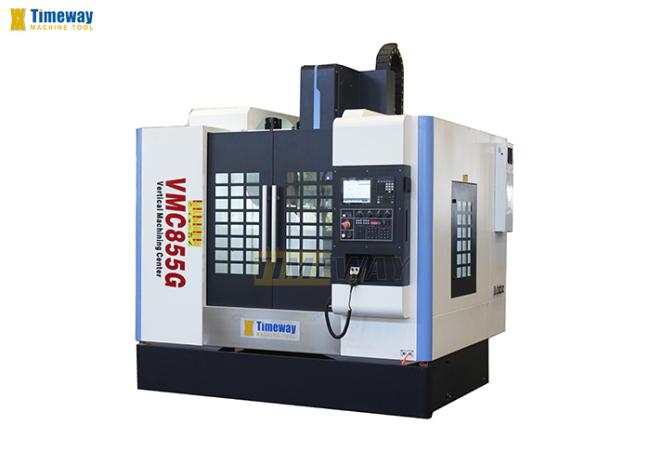

Vertical Machining Center VMC855G
Technical Parameter
Specification | Unit | VMC650G | VMC850G | VMC855G |
Worktable size (LxW) | mm | 1000×420 | 1000×500 | 1000×550 |
T-slot (No./width/pitch) | mm | 5-18-80 | 5-18-100 | 5-18-100 |
Loading capacity | kg | 400 | 500 | 500 |
Longitudinal travel (X) | mm | 700 | 800 | 800 |
Cross travel (Y) | mm | 450 | 500 | 550 |
Vertical travel (Z) | mm | 450 | 500 | 550 |
Spindle taper | - | BT-40 | BT-40 | BT-40 |
Spindle speed | rpm | 8000 | 8000 | 8000 |
Main motor power | kw | 7.5/11 | 7.5/11 | 7.5/11 |
Air pressure source | kg/cm2 | 6/8 | 6/8 | 6/8 |
Power capacity | Kva | 18 | 20 | 20 |
Tool magazine capacity | T | 12 (Crousel) | 24 (Disc) | 24 (Disc) |
Guideway type | - | Linear | Linear | Linear |
Machine weight | kg | 3500 | 4200 | 5200 |
Machine dimensions (LxWxH) | mm | 2400×1900×2400 | 2800×2250×2600 | 2800×2350×2800 |
Accessories
· SIEMENS 808D control · Manual pulse generator(MPG) · USB &LAN interface · Work lamp · Pilot lamp · Cooling system · Auto. lubrication system · Leveling wedge and bolts · Full enclosed splash guard · Heat exchanger · Tool & tool box · Operator manual(English) | · 4th axis wring · NC rotary table · Direct driven spindle · Circular coolant nozzle · Coolant through spindle(CTS) · Spindle oil cooler · Air conditioner for electrical cabinet · Auto. measurement system · Screw type chip conveyor · Chain type chip conveyor · Safety door · Oil skimmer |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
