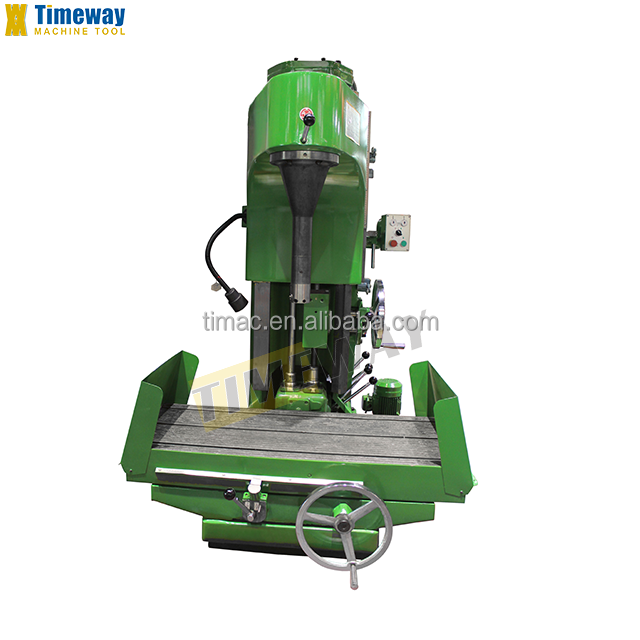

Single Spindle 160mm Boring Dia. Vertical Cylinder Boring Machine T716A for Machinery Repair Shops
Price:
$15,980.00/sets 1-2 sets
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
TIMAC
Product Description
Products Description

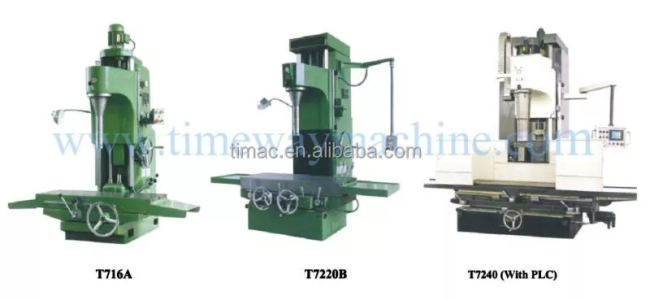

1. The T716A is mainly used for fine boringhole s of cylinder and sleeve for various engines and other sccurate holes.
2. The T7220B vertical boring machine is mainly used to bore high accurate holes of cylinder body and engine sleeve and other accurate holes.
3. The T7220C is mainly used for fine boring high accurate holes of cylinder body and engine sleeve, also for other accurate holes, it's can used for milling surface ofcylin der.
2. The T7220B vertical boring machine is mainly used to bore high accurate holes of cylinder body and engine sleeve and other accurate holes.
3. The T7220C is mainly used for fine boring high accurate holes of cylinder body and engine sleeve, also for other accurate holes, it's can used for milling surface ofcylin der.
The machine can be used to boring, milling, drilling, reaming.
Specification | T716A | T7220B | T7220C | T7240 | |||
Max. boring diameter | Φ160mm | Φ200mm | Φ200mm | Φ400mm | |||
Max. boring depth | 410mm | 500mm | 500mm | 750mm | |||
Milling cutter head diamenter | - | - | 250mm | ||||
Max. milling area (L×W) | - | - | 850×250mm | ||||
Spindle speed range | 190-600r/min | 53-840m/min | 50-1000r/min | ||||
Spindle feed range | 0.05-0.20mm/r | 0.05-0.20mm/r | 6-3000mm/min | ||||
Spindle travel | 550mm | 710mm | 1000mm | ||||
Distance from spindle axis to carriage vertical plane | 310mm | 315mm | 500mm | ||||
Table longitudinal travel | 700mm | 900mm | 1100mm | 1600mm | |||
Table longitudinal feed speed | - | - | 54,108mm/min | ||||
Table longitudinal quick move speed | - | - | 1500mm/min | ||||
Table cross travel | 100 mm | 100mm | |||||
Boring dimension accuracy | IT7 | IT7 | IT7 | ||||
Milling dimension accuracy | - | - | IT8 | IT8 | |||
Roundness | 0.005 | 0.005 | 0.008 | ||||
Cylindricity | 0.02/300 | 0.01/300 | 0.02 | ||||
Boring surface roughness | Ra1.6 | Ra1.6 | Ra1.6 | Ra1.6 | |||
Milling surface roughness | - | - | Ra1.6-3.2 | Ra1.6-3.2 | |||
Overall dimensions (L×W×H) | 1845x1712x2225 | 2210x1600x2340 | 2610×1600×2350 | 3260×2063x3140mm | |||
Packing dimensions (L×W×H) | 1460x1890x2190 | 1850x1840x2230mm | |||||
N.W./G.W. | 2800/3000 | 3300/3800 | 3600/4000kg | 7500/8000kg | |||
