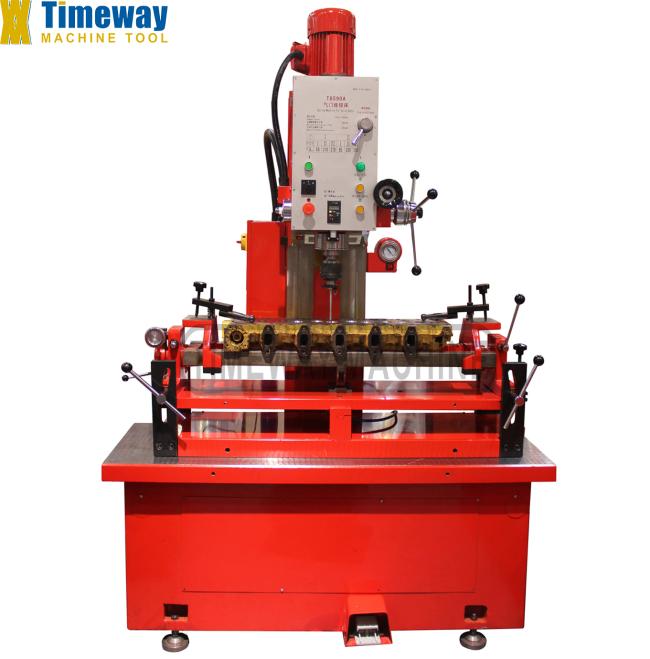

T8590A T8590B Gas Valve Seat Boring Machine with 1.1kw Main Motor and Weight of 1200KG
GAS VALVE SEAT BORING MACHINE T8590A & T8590B
Features:
1. The machine tool suits the needs of various cylinder cover for every engine.
2. It can manufacture the gas valve seats hole for cylinder cover with various angles.
3. When equipped with boring-drilling tools, it can bore, drill, ream the pipe seats hole for gas valve or repair it.
4. It's adopted floating worktable and adjustable special clamps, easy operation and high precision.
5. It can be widely used with many knives and Positioning Mandrel.
6. Equipped with vacuum test equipment, It’s rapid-checking and non-pollution.
7. Equipped with cutter grinder, it has long use life and cost-saving.
Specification:
| Specification | T8590A | T8590B | |
| Boring dia. | φ20mm-φ90mm | ||
| Spindle speed range | 55,85,210,320,370,550rpm | 30-550(stepless) | |
| Spindle travel | 180mm | ||
| Distance from spindle axis to guideway surface | 270mm | ||
| Max. distance from end ofspindle to working table | 750mm | ||
| Moving speed of machine head | 512mm/min | ||
| Moving range of machine head | Cross | 120mm | |
| Longitudinally | 860mm | ||
| Main motor power | 1.1/0.85kw 1400/950rpm | ||
| Overall dimension(LxWxH) | 1300x800x1930mm | ||
| Packing dimension(LxWxH) | 1700x1100x2000mm | ||
| N.W/G.W | 1200/140kg | ||
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
