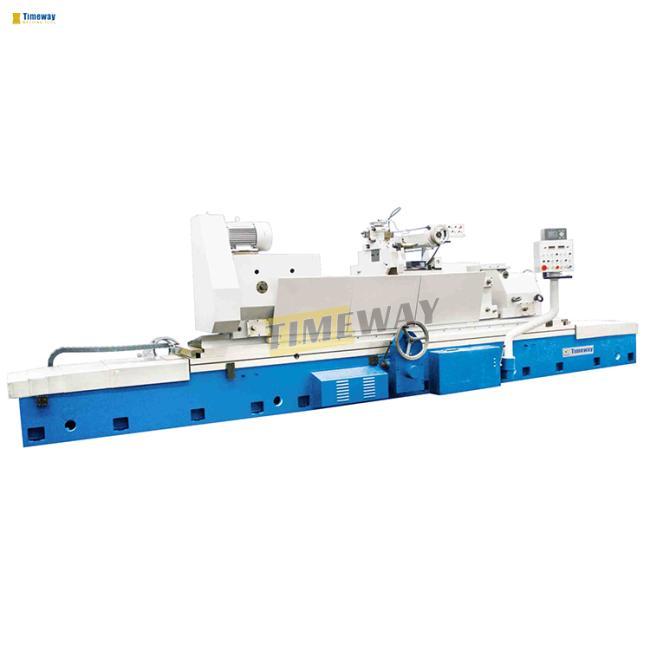

Voltage-optional O.D 800mm High Precision Cylindrical Grinding Machine
Price:
$40,000.00/sets 1-2 sets
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
TIMEWAY
Product Description
Products Description
Features:
1. The machine is mainly used to grind external cylindrical surface and conic surface of parts with small coning, the accuracy of ground parts can reach IT5, IT6, and grind end face of step parts with lower dimensional accuracy. 2.The machine is suitable for using in machinery manufacturing industry, printing machinery, heavy machinery, etc.
3. Longitudinal movement of the worktable is carried out by hydraulic stepless transmission or by handwheel. Swiveling movement of workpiece is controlled by variable frequency motor together with frequency converter. Fast advance or reverse of grinding wheel stand is driven by hydraulic system. The machine adopts a dynamic-hydrostatic pressure spindle.
4. Grinding wheel is dressed through manual or automatic mode. Cross feed is carried out by hydraulic device as well as hand operation device.
Specification | Unit | G-630E | G-800E | G-1000E |
Grinding diameter (without steady rest) | mm | 30-630 | 50-800 | 100-1000 |
Grinding diameter (with steady rest) | mm | 150-350 | 250-400 | 250-400 |
Max. grinding length | mm | 2000/3000/ 4000/5000 | 3000/4000/ 5000/6000 | 3000/4000/ 5000/6000 |
Max. weight of workpiece | kg | 3000 | 5000 | 5000/6000 |
Center height | mm | 335 | 500 | 500 |
Distance between centers | mm | 2200/3120/ 4300/5300 | 3100/4100/ 5100/6100 | 3100/4100/ 5100/6100 |
Headstock spindle speed | rpm | 8-200 | 6-80 | 6-80 |
Max. peripheral speed of grinding wheel | m/s | 35 | 35 | 35 |
Grinding wheel size | mm | 900x75x305 | 900x75x305 | 900x75x305 |
Headstock spindle taper | / | Metric80 | Metric100 | Metric100 |
Tailstock quill taper | / | Metric80 | Metric100 | Metric100 |
Main motor power | kw | 22 | 22 | 22 |
Total power | kw | 35 | 40 | 40 |
Roundness | mm | 0.0025 | 0.0025 | 0.0025 |
Flatness | mm | 0.008 | 0.008 | 0.0012 |
Roughness | um | Ra0.32 | Ra0.32 | Ra0.32 |
Net weight | kg | 17000/21000/ 23000/26000 | 31000/33000/ 35000/37000 | 32000/34000/ 35000/38000 |
Gross weight | kg | 19000/23000/ 25000/28000 | 33000/35000/ 38000/40000 | 34000/36000/ 39000/41000 |
· Collant tank · Internal grinding head · Wheel dresser · Wheel with flange · Wheel dismount tool · Wheel balancing arbor · Measuring plate · Driving dog · Parallel wedge · Three-jaw chuck | · Radius wheel dresser · Wheel balancing stand · Open-type steady rest · Digital dresser · End dresser · Close-type center rest |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
