Customerized Grinding Wheel Size Hydraulic Column Moving Automatic Surface Grinder
Price:
$65,000.00/sets 1-2 sets
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
TIMEWAY
Product Description
Products Description
* Double walled column construction, providing high rigid support. Adopt counterweight balance, making the machine moving stably, and reducing the load of the ball screw, keeping the accuracy for long time.
* High rigidity rectangular guideway is designed on vertical motion, and coat with Turcite-B belt, to get low fricion coefficien.
* The wheelhead spindle use the hydrostatic bearing with high rigidity(high precision ball bearing for export), which can provide the power force together with 18.5kw motor, suitable for the heavy machining. The spindle rotary is supported by rigidity oil layer without wear, ensure the high precision and long life span.
* The machine bed and rear slide bed are assembled to one piece,to supply super strong base for efficient working.
* The independent and large capacity integrated hydraulic station equipped with air cooling and pressurizer, isolate heat and vibroseis, to provide excellent power for precision grinding.
* Adopt the Flat-V type guideway on longitudinal and transverse to set good guidance quality, precision scraping to keep stable work accuracy by hand.
* The transverse and vertical movement are driven by AC servo motor, and the electronic hand
wheel(MPG) instead of the tradition mechanical hand wheel, to get high accuracy and easy operation.
wheel(MPG) instead of the tradition mechanical hand wheel, to get high accuracy and easy operation.
* Adopt SIEMENS 7 inch LCD-TFT colourful touch screen, built in program of our engineer's genius
designation to make the operation very simple and convenient for the opeator.
designation to make the operation very simple and convenient for the opeator.
* Well designed machine bed is one high grade casting iron, which ensure heavy duty cutting.
* Strengthen ribs are set inside of the rear slide base, make sure great stability support for spindle.
* Super great power spindle unit is most important to the machine. It is really an elaboration under well designed, and our ultimate goal is to balance high rigidity and great accuracy.
Specification | Unit | SGT-81160FR | SGT-81220FR | SGT-81300FR | SGT-81400FR |
Table size | mm | 810x1600 | 810x2200 | 810x3000 | 810x4000 |
Grinding area | mm | 810x1600 | 810x2200 | 810x3000 | 810x4000 |
Grinding height | mm | 790 (heighten) | 790 (heighten) | 790 (heighten) | 790 (heighten) |
Wheelhead swivel angle | ° | ±5° / ±30° | ±5° / ±30° | ±5° / ±30° | ±5° / ±30° |
Loading capacity (include chuck) | kg | 1900 | 2300 | 3100 | 6000 |
Table longitudinal feed speed | m/min | 5-25 | 5-25 | 5-25 | 5-25 |
Column cross feed rate (MPG) | mm/gra | 0.005 | 0.005 | 0.005 | 0.005 |
Column cross continuous feed speed | mm/min | 50-2000 | 50-2000 | 50-2000 | 50-2000 |
Wheelhead vertical continuous feed speed | mm/min | 50-2000 | 50-2000 | 50-2000 | 50-2000 |
Wheelhead vertical feed rate (MPG) | mm/gra | 0.005 | 0.005 | 0.005 | 0.005 |
Spindle speed | rpm | 1450 | 1450 | 1450 | 1450 |
Grinding wheel size | mm | According to the tech request | According to the tech request | According to the tech request | According to the tech request |
Main motor power | kw | 5.5 | 5.5 | 5.5 | 5.5 |
Total power | kw | 17 | 17 | 19 | 27 |
Machine dimensions (LxWxH) | mm | 4700x3500x2950 | 6000x3500x2950 | 8200x3500x2950 | 13500x3600x2950 |
Machine weight | kg | 10000 | 12000 | 14000 | 22000 |
- PLC+SMART auto. grinding controller - Coolant tank - Work lamp - Balancing arbor - Wheel flange and extractor - Wheel dresser stand - Y/Z axis electrical wheel(MPG) - Operation manual (English edition) - Splashing guard - Standard grinding wheel - Leveling wedge and boltd - Tools & tool-box - Operation manual(English edition) | - Balancing stand - Magnetic separator - Paper filter - Oil tank guard - Electrical magnetic chuck - Built-in magnetic chuck controller - Parallel wheel dresser - 2 axis digital readout - Extra wheel flange |
Company Video

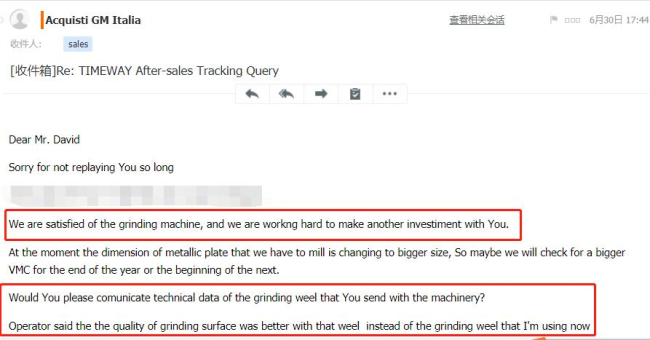

Client feedback
