UG-500 Cylindrical Grinder with 500mm Grinding Diameter and 1000kg Loading Capacity
Price:
$55,000.00/sets 1-2 sets
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
Timac
Product Description
Product Description
Hot-selling cylindrical Grinder Universal Cylindrical Grinding Machine UG-500
1. For UG-500, spindle of workhead adopts sliding bearing structure. the clearance of the front bearing can be adiusted to make it suitable for the grinding use center or chuck.
2. For UG-500, the workhead can be rotate to any position within its conterclock direction 90°, so it can be suitable for grinding inner or outer surface of taper.

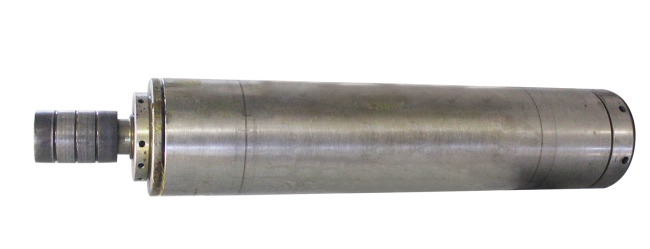

3. For UG-500, the cylindrical grinding machine has internal grinding apparatus, internal grinding spindle is supported by precise roll-bearing.
Specification
Specification | Unit | UG-500 | UG-500A | UG-630A |
Distance between centers | mm | 1500/2000/3000/4000 | 3000/4000 | 2000/3000/4000/5000 |
Center height | mm | 270 | 270 | 370 |
Dia. ground (O.D) | mm | 25-500 | 25-500 | 30-630 |
Dia. ground (I.D) | mm | 30-200 | 30-200 | 30-250 |
Grinding length (O.D) | mm | 1500/2000/3000/4000 | 3000/4000 | 2000/3000/4000/5000 |
Grinding length (I.D) | mm | 320 | 320 | 320 |
Loading capacity | kg | 1000 | 2000 | 3000 |
Workhead swivel angle | ° | ﹢90° | ﹢90° | ﹢90° |
Workhead spindle taper | - | MT6 | MT6 | MT6 |
Workhead spindle speed | rpm | 20-224 | 20-224 | 14-140 |
Wheelhead spindle speed | rpm | 1330/665 | 1330/665 | 1100/550 |
Wheelhead rapid feed travel | mm | 100 | 100 | 100 |
Machine Details
Packing & Delivery
This is the picture of the packaging in our factory！You can see our package is standardized andcentralized , then they will be shipped to your designated place.
Factory show
Our factory is the joint-stock enterprise, has 50 years of machine tool development, and manufacturing history, is the largest machine tool manufacturer in central China, is the "National Torch Plan Key High-tech Enterprise", "China Industry Leading Enterprise", "China Machinery Industry 500 ", China's machine tool industry" well-brand Top Ten Enterprises ".
Company Profile
ZHENGZHOU TIMEWAY MACHINE TOOL Co., Ltd. is a professional machine tool supplier.
The factory occupies more than 500 acres, built a foundry, machining, heat treatment, assembly, painting, logistics and other domestic advanced production lines, with vertical machining centers, horizontal machining center, five-sided machining centers, large boring and milling machine, large German rail grinder, Zeiss coordinate measuring instrument, gear detector and laser interferometer and other advanced equipment, instruments and a total of more than 600 sets. Our product mainly cover conventional lathe, CNC lathe, CNC oil country lathe, vertical lathe, milling machine, CNC machining center, drilling machines, grinding machines, shaping/slotting machines, sawing machines and related accessories & tools, etc.
Exhibition&Training
This is a picture of clients visiting our company when we hold exhibitions around the world.
