10 Forward Shift 2023 Sinotruk Howo 8x4 Tipper Truck Dump Truck with Heavy Duty Engine
Price:
$31,027.00/units 1-4 units
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
HOWO
Product Description
Product Video
Products Description
HOWO
400 HP
8x4
Dump Truck
New

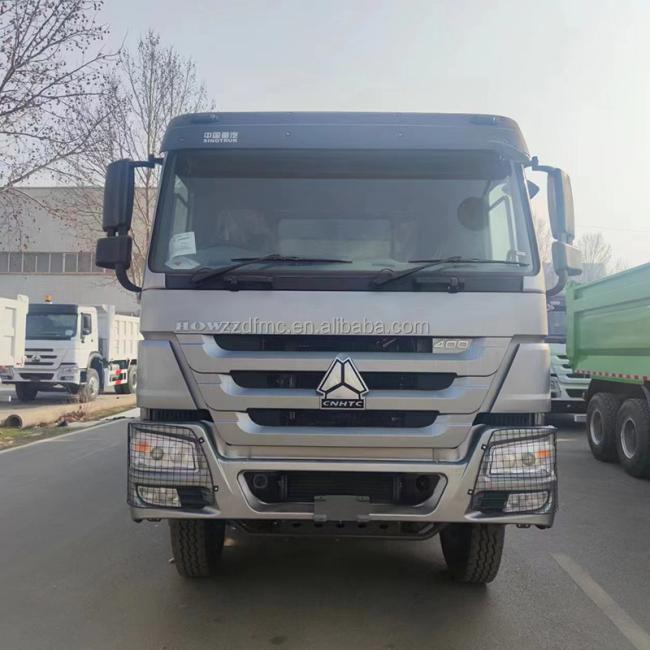

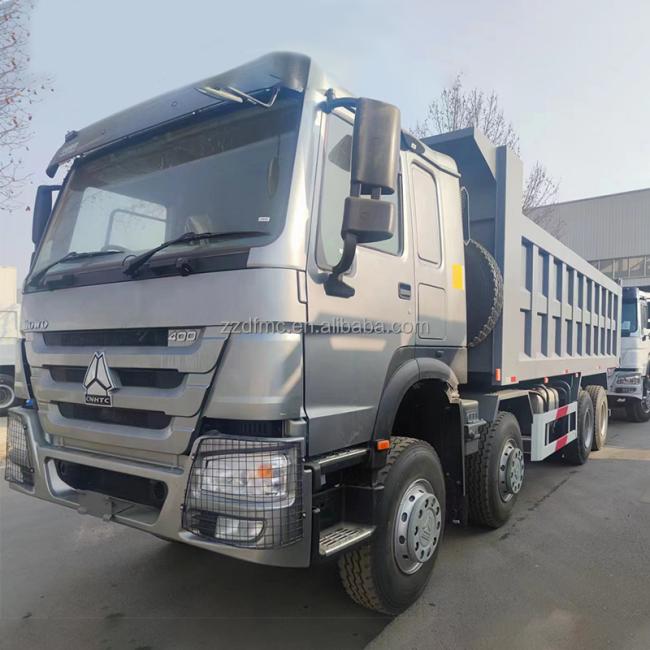

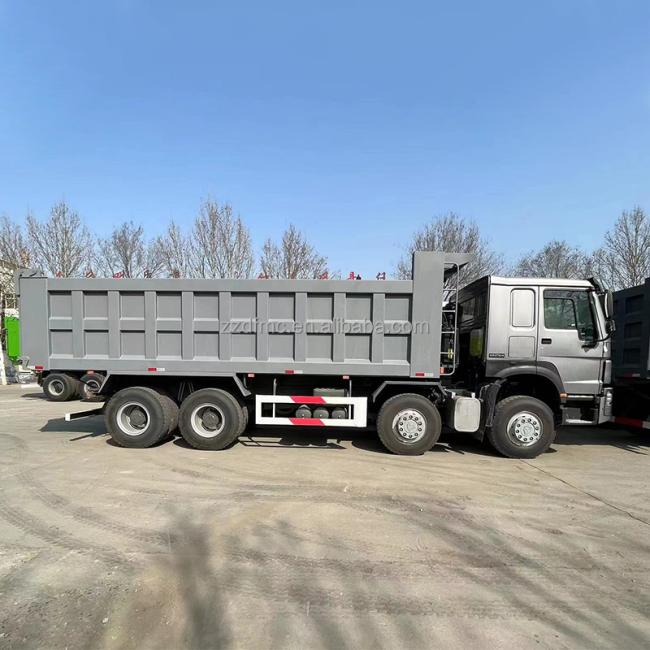

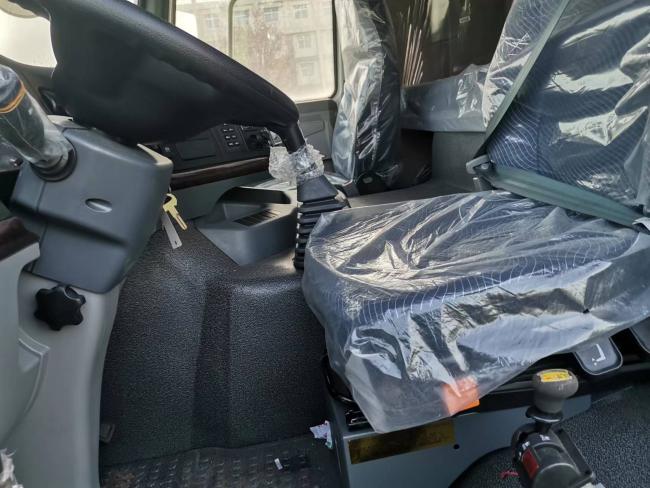

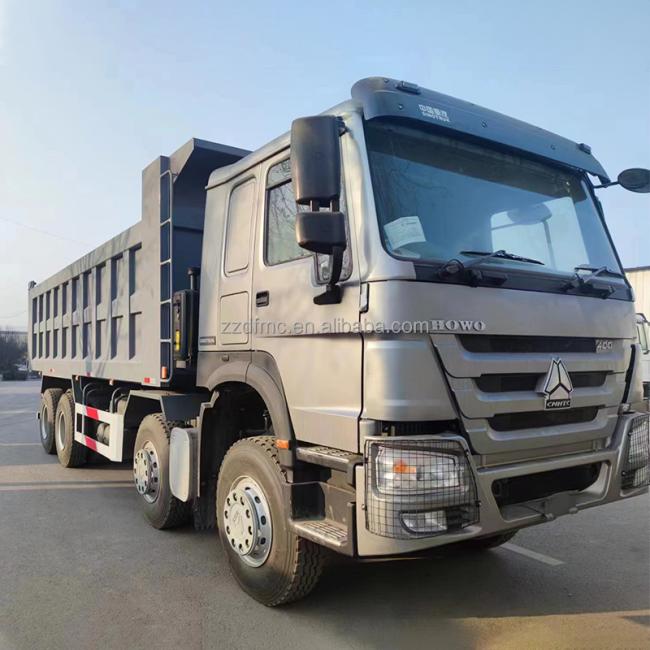

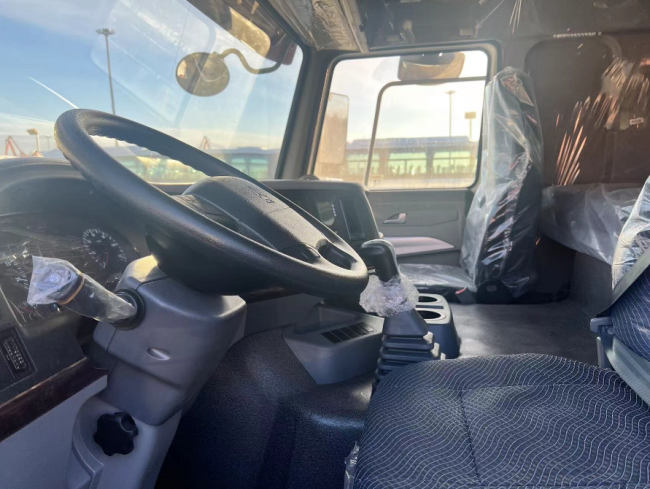

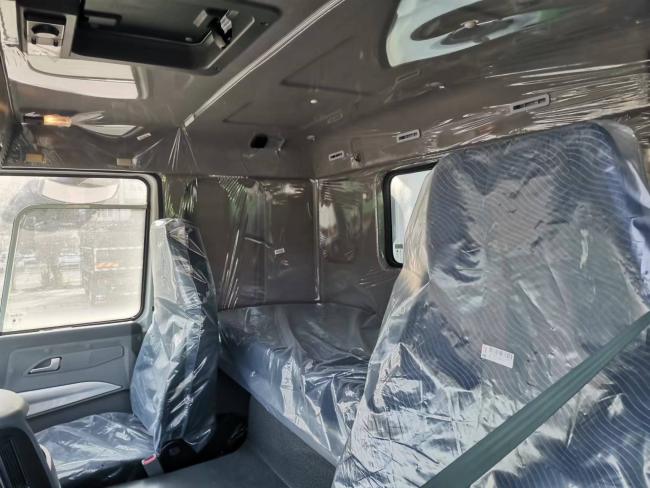

Details Images
Product Paramenters
Truck Model | 8x4 | ||||
Truck Brand | SINOTRUCK –HOWO | ||||
Dimension(Lx W xH)（unloaded）（mm） | 10300x2550x3450 mm | ||||
Cargo body size (L*W*H) | 7600 x 2300 x 1500 mm | ||||
Cargo body thickness(mm) | bottom:8mm, side:6mm | ||||
Lift type of Carriage | Central lifting | ||||
Approaching angle/Departure angle（°） | 19/23 | ||||
Overhang(front/rear) (mm) | 1500/1870 | ||||
Wheel base (mm) | 3625+1350 | ||||
Max speed（km/h） | 75 | ||||
Curb weight（kg） | 12600 | ||||
Loading Weight（kg） | 25000 | ||||
Fuel tanker capacity(L) | 300L with locking fuel cap | ||||
Clutch | Single-plate dry clutch Φ430mm | ||||
Engine Model (Steyr technology, made in China) | Model | WP12.400E201 | |||
Horse Power | 400HP | ||||
Emission | EURO II | ||||
Fuel Type | Diesel | ||||
Transmission | Model | HW19710,10 forwards and 2 reverse | |||
Brake system | Service brake | Dual circuit compressed air brake | |||
Parking brake | spring energy, compressed air operating on rear wheels | ||||
Auxiliary brake | Engine exhaust brake | ||||
Steering system | Model | hydraulic steering with power assistance Ratio：22.2-26.2 | |||
Front axle | VGD95 | ||||
Rear axle | HC16 X2, Pressed axle housing, central double reduction with differential locks between axles and wheels Loading capacity: 16000kg | ||||
Color | Optional | ||||
Tire | 12.00R 20.00 10+1 | ||||
Cab | HOWO76 cab | ||||
