sinotruck 6*4 371hp dump truck ESC Electronic Stability Control System None
Price:
$41,500.00/units 1-2 units
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
SINOTRUCK
Product Description
Products Description
HOWO 6X4 New Dump Truck

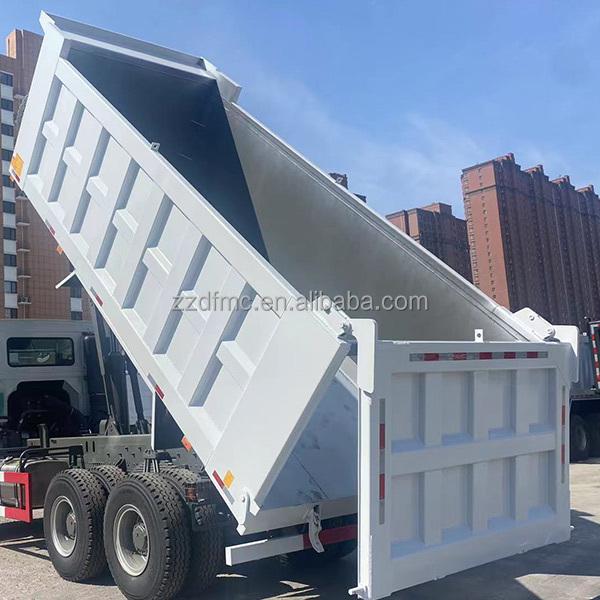

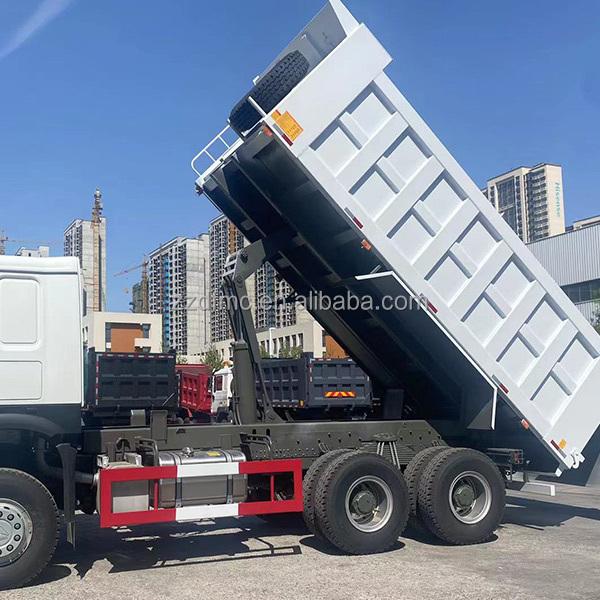

Details Images
--HYVA Lifting Cylinder: Imported lift cylinders for faster lifting and more complete discharge.--Hydraulic lifting system: Middle lifting (HYVA front lifting is optional).
--Strong Body: 8MM Thick Box, Thickened bottom plate，More strong anti-weight.

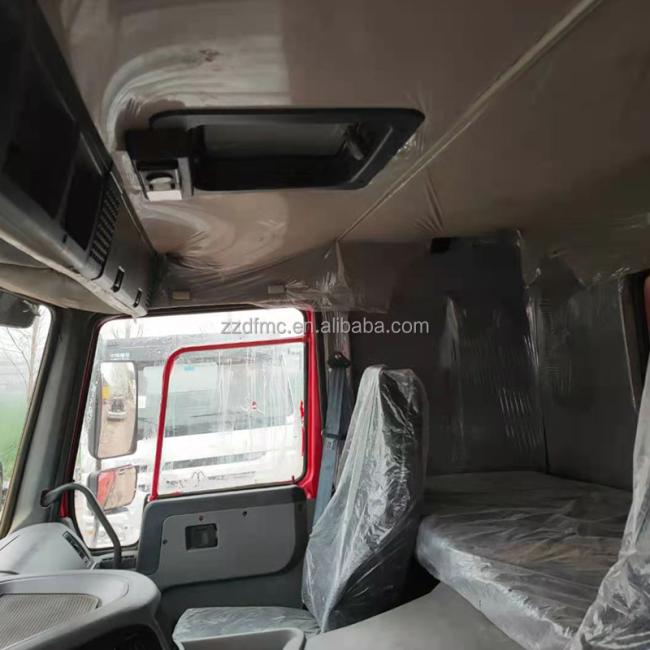

--New Type Cab: Shacman F3000, Single sleeper with air conditioner, All-steel forward control.
--Options for tires: 12.00-20 bias tire, 12.00R20 radial tire, 12R22.5 and 315/80R22.5 tubeless tire.
--Heavy-duty five-leaf spring: heavy-duty axle for transporting gravel loads.
--Large-capacity fuel tank: The standard self-tilting truck fuel tank size is 300-400L, which supports customization.
--Truck body volume of 15cbm~20cbm, sand and gravels transportation normal type dump body, big stones and rocks transportation with rock type dump body.
--Heavy-duty five-leaf spring: heavy-duty axle for transporting gravel loads.
--Large-capacity fuel tank: The standard self-tilting truck fuel tank size is 300-400L, which supports customization.
--Truck body volume of 15cbm~20cbm, sand and gravels transportation normal type dump body, big stones and rocks transportation with rock type dump body.
Product Paramenters
Truck Model | 6x4 | ||||||
Truck Brand | SINOTRUCK –HOWO | ||||||
Dimension(Lx W xH)（unloaded）（mm） | 8245x2550x3450 mm | ||||||
Cargo body size (L*W*H) | 5400 x 2300 x 1500 mm | ||||||
Cargo body thickness(mm) | bottom:8mm, side:6mm | ||||||
Lift type of Carriage | Central lifting | ||||||
Approaching angle/Departure angle（°） | 19/23 | ||||||
Overhang(front/rear) (mm) | 1500/1870 | ||||||
Wheel base (mm) | 3625+1350 | ||||||
Max speed（km/h） | 75 | ||||||
Curb weight（kg） | 12600 | ||||||
Loading Weight（kg） | 25000 | ||||||
Fuel tanker capacity(L) | 300L with locking fuel cap | ||||||
Clutch | Single-plate dry clutch Φ430mm | ||||||
Engine Model (Steyr technology, made in China) | Model | WD615.47，4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , turbo-charging and inter-cooling | |||||
Horse Power | 371HP, 9.726L | ||||||
Emission | EURO II | ||||||
Fuel Type | Diesel | ||||||
Transmission | Model | HW19710,10 forwards and 2 reverse | |||||
Brake system | Service brake | Dual circuit compressed air brake | |||||
Parking brake | spring energy, compressed air operating on rear wheels | ||||||
Auxiliary brake | Engine exhaust brake | ||||||
Steering system | Model | hydraulic steering with power assistance Ratio：22.2-26.2 | |||||
Front axle | HF9 , Steering with double T-cross section beam Loading capacity:9000KG | ||||||
Rear axle | HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels Loading capacity: 16000kg | ||||||
Color | Optional | ||||||
Tire | 12.00R20 Steel tires 10+1 spare | ||||||
Electrical system | Operating voltage | 24V,negative grounded | |||||
Starter | 24V,7.35KW | ||||||
Alternator | 28V,1500W | ||||||
Batteries | 2*12V.165Ah | ||||||
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light. | |||||||
Cab | HOWO76 cab | ||||||
