Forward Shift Number 12 Used SHACMAN Dump Truck 8X4 6X4 420HP for Heavy Duty Mining
Price:
$10,200.00/sets 1-4 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Shacman
Product Description
Products Description

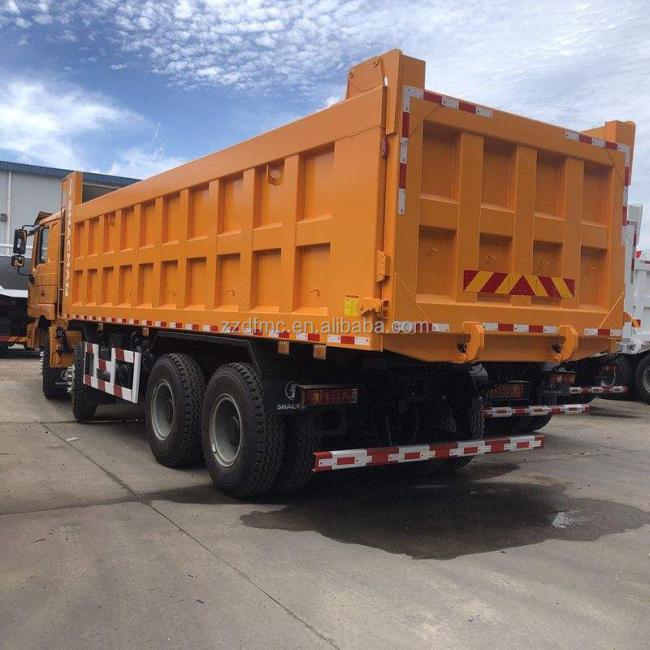

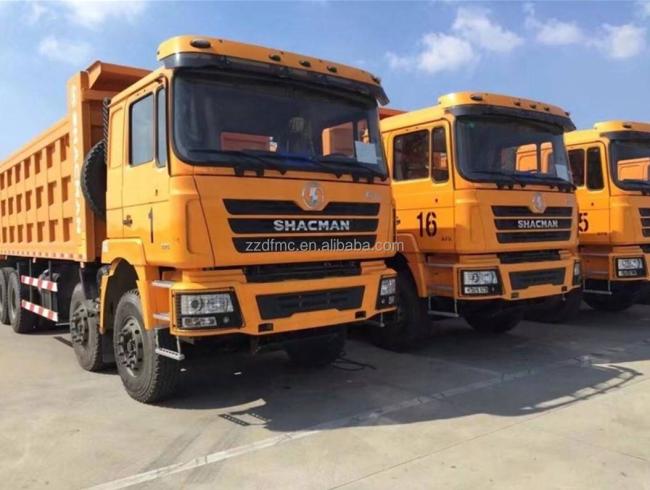

Shacman 8X4 Dump Truck
1) WECHAI 400 HP Engine
2) MAN Technolodgy Axles
3) Stong , Effecient and Heavy Load
Details Images

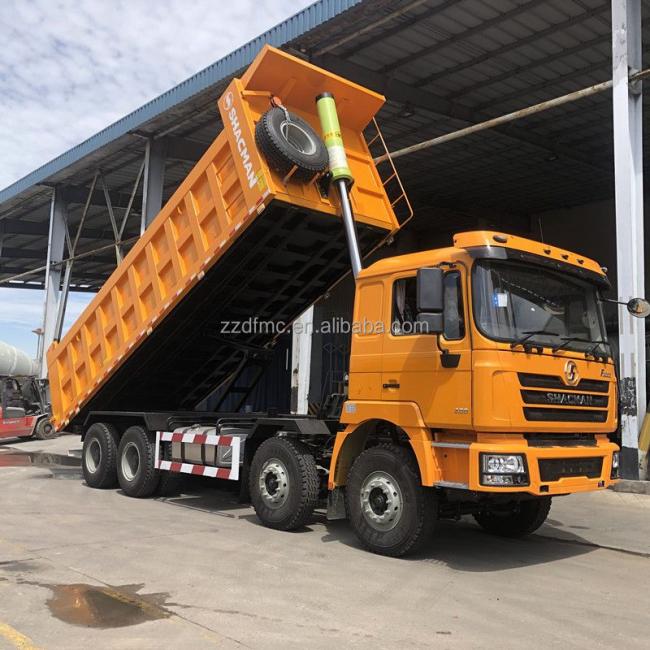

--HYVA Lifting Cylinder: Imported lift cylinders for faster lifting and more complete discharge.--Hydraulic lifting system: Middle lifting (HYVA front lifting is optional).
--Strong Body: 8MM Thick Box, Thickened bottom plate，More strong anti-weight.

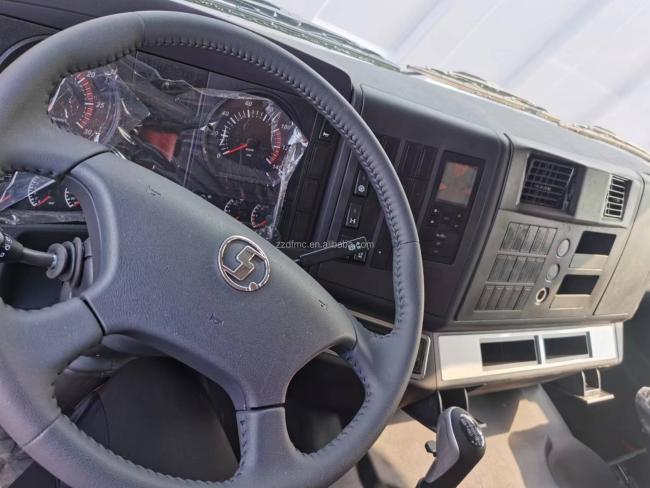

--New Type Cab: Shacman F3000, Single sleeper with air conditioner, All-steel forward control.
--Options for tires: 12.00-20 bias tire, 12.00R20 radial tire, 12R22.5 and 315/80R22.5 tubeless tire.
--Heavy-duty five-leaf spring: MAN Technolodgy heavy-duty axle for transporting gravel loads.
--Large-capacity fuel tank: The standard self-tilting truck fuel tank size is 300-400L, which supports customization.
--Truck body volume of 15cbm~20cbm, sand and gravels transportation normal type dump body, big stones and rocks transportation with rock type dump body.
--Heavy-duty five-leaf spring: MAN Technolodgy heavy-duty axle for transporting gravel loads.
--Large-capacity fuel tank: The standard self-tilting truck fuel tank size is 300-400L, which supports customization.
--Truck body volume of 15cbm~20cbm, sand and gravels transportation normal type dump body, big stones and rocks transportation with rock type dump body.
Product Paramenters
Max. running speed (km/h) 最高车速 | 82 | ||||
Drive System 驱动形式 | 8×4 | ||||
Dimensions （L*W*H）(mm) | Overall 外部尺寸 | 10635×2490×3790 | |||
Dump body 内部尺寸 | 7800×2300×1500+200 | ||||
Thickness (mm) 厚度 | Bottom 12, side 8 底12边8 | ||||
Hydraulic lifting system 液压举升系统 | Ф200 Before the lifting Ф200前举 | ||||
Approach / departure angle (°) 接近角/离去角 | 28 / 20 | ||||
Kerb weight (kg)自重 | 15500 | ||||
Total mass (kg)总重 | 31000 | ||||
Wheel base (mm) 轴距 | 1800+3575+1400 | ||||
Engine 发动机 | WEICHAI WP12.400E201 Euro Ⅱ 潍柴动力 欧2排放 | ||||
Horsepower 马力 | 400 hp | ||||
Gearbox 变速箱 | FAST 10JSD180,法士特10档变速箱 | ||||
Clutch 离合器 | Ф 430 Diaphragm type Ф 430膜片离合式 | ||||
Steering 转向机 | ZF technology | ||||
Cab 驾驶室 | F3000 mid-lengthened Cabin with single-sleeper F3000中长平顶驾驶室带单卧铺 | ||||
Axle 桥 | Front axle前轴 | 9.5T MAN | |||
Rear axle 后桥 | 16Ton MAN axle, final ratio 5.262 16吨曼双极桥，速比5.262 | ||||
Tyre (radial tyre) 轮胎（钢丝胎） | 12.00R20（12+1 备胎） | ||||
Oil tank 油箱 | 300L(Metal) 300L金属油箱 | ||||
