IPS TFT LCD HD Display 3.2 Inch Industrial Digital 240*320 Resolution

Price Negotiable

Price: Negotiable

MOQ: 3PICS

Delivery Time: 3-5weeks

Brand: RGH

Product Description

Item	Specification
Display mode	Transmissive TFT
Part NO.	RT32QV002A
Resolution	240(RGB)*320
Outline size	53.60(H) X 76(W) X2.45(T)
Active area	48.60(W) X64.80 (H)
View direction	ALL o’clock
Piexl pitch	240X(RGB)X320
Interface	MCU
Backlight	6LEDS
Surface luminance	420cd/m2
Driver IC	ST7789V
Logic voltage	2.5V-3.3V
Operating temperature	-20℃~70℃
Storage temperature	-30℃~80℃
Weight	TBD

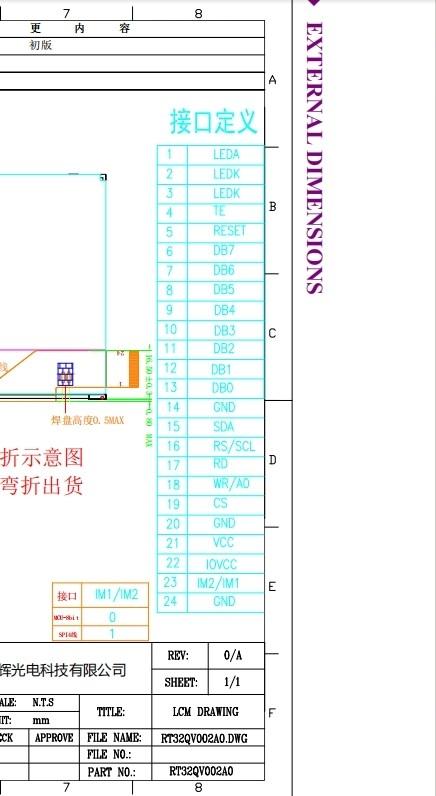

NO.	Symbol	Level	Function
1	LEDA		LED,anode
2-3	LEDK		LED,cathode
4	TE		TE
5	RESET		This signal will reset the device and it must be applied to properly
6-13	DB7-DB0		data bus.
14	GND		Ground
15	SDA		Ground(0V)serial portdata input end
16	RS/SCL		-Display data/command selection pin in parallel interface
17	RD		-Read enable in 8080 MCU parallel interface
18	WR/A0		-Write enable in MCU parallel interface
19	CS		-Chip selection pin
20	GND		Ground
21	VCC		system voltage
22	IOVCC		system voltage
23	IM2/IM1
24	GND		Ground
