35 Big diamond crystal lamp Internet Celebrity Tube Art Museum Lighting

Price Negotiable
Price: $0.86- $1.00/PCS
MOQ: 100PCS
Delivery Time: 10 work days
Brand: XQD
Product Description

35 Big diamond crystal lamp Light Cube Internet Celebrity Tube Art Museum Lighting Illumination





Product features:

Application scenario:

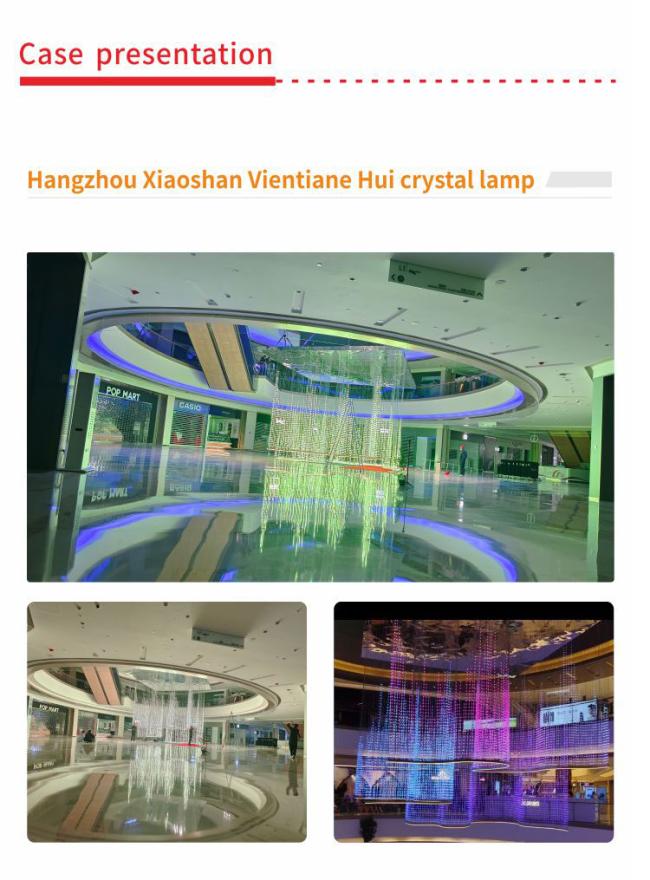

Art installation: Used as an art installation in galleries, museums, public Spaces and other places to create a unique visual experience.
Commercial display: Used in shopping malls, exhibitions, product launches and other occasions to attract customer attention and enhance brand image.
Entertainment venues: In nightclubs, bars, concerts and other entertainment venues, as atmospheric lighting, enhance the atmosphere of the scene.
City lighting: Installed in the city's squares, parks, pedestrian streets and other places to beautify the city night scene.

Functions and Features:

Dynamic display: 3D light Cube can display dynamic lighting effects, including color change, light flow, flicker, etc.

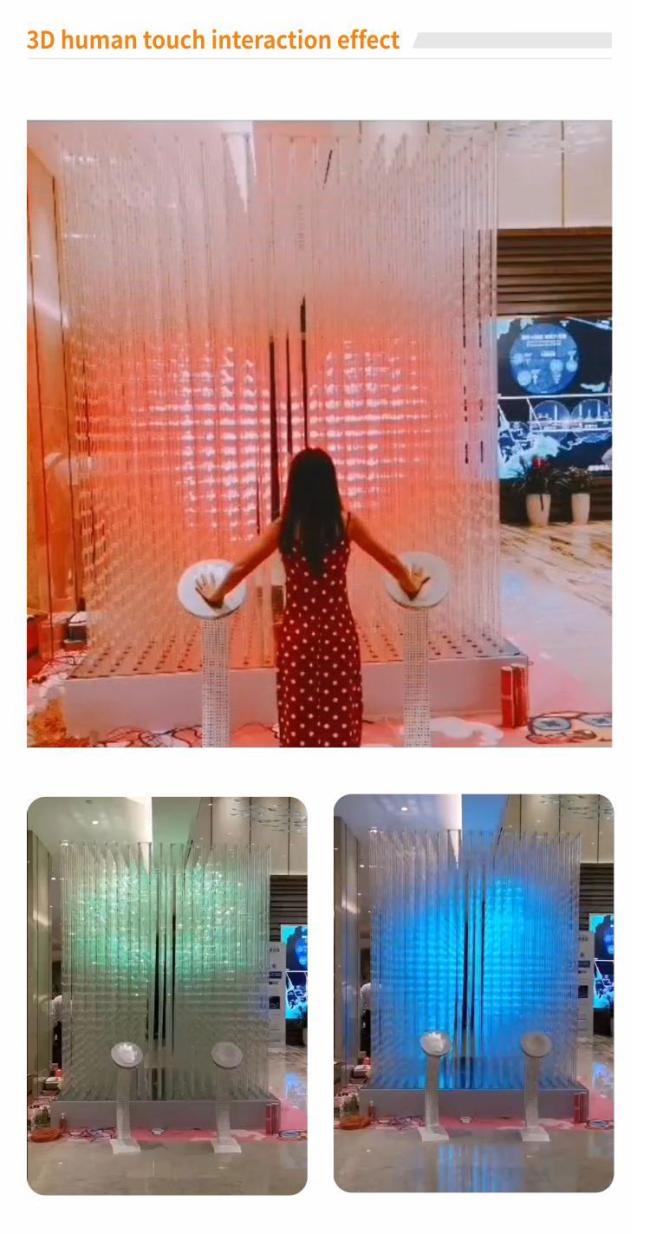

Interactivity: Some light cube designs have interactive features that can respond to human movements or environmental changes by touch, sound, or other sensors.
Customization: Light Cube can be customized with different sizes, shapes and lighting effects to suit different display needs.
Energy saving and environmental protection: The application of LED technology makes light Cube have lower energy consumption and longer service life, in line with environmental protection requirements.



3D 35Diamond Crystal Lamp Technical Parameter Description

Basic product parameters Product protection parameter
Product model XQD-3D-35ZSSJ waterproof level IP66
Product size Φ23mm*28mm Shell flame retardancy V-0
Application environment Indoor UV resistance level 4
Product weight About 11g Impact resistance Salt spray resistance
Shell material PC Electrical safety level IK10
Maximum number of connections 100PCS/bar safety certificate Ⅲclass
center distance Smallest 5cm±0.5mm safety certificate CE FCC RoHS
Average product life 50000hours perating temperature -40℃-55℃
Optional accessories T-shaped terminal/Crystal ball tensile strength ≤7.5kg
Wire core 4x0.25mm²
Wire material PVC
PCB material FR-4 fiberglass board
Product optical parameters Electrical parameters of the product
LED color RGB Operating voltage DC12V
Luminous Angle  360° Rated power 0.72W
Luminous Angle 3*12bit Supporting system
Lamp bead SMD3535*2LED Control system SPI
Pixel point luminous flux 11.7lm Power supply system DC12Vconstant voltage
brightness 4.3cd



Quality certification:
Through international quality certification, such as CE, ROHS, FCC, etc., to prove that the product meets international standards.
Conduct regular third-party quality tests to objectively assess product quality.
Environmental testing:
Environmental simulation tests such as high and low temperature test, humidity test and vibration test are carried out to ensure that products can work stably in various environments.
Life test:
The aging test is carried out to simulate the long-term use of the product to ensure that the product life meets the design requirements.
Customer feedback:
Establish customer feedback mechanism, collect market feedback information in time, and make continuous improvement of products.
Follow up customer complaints and problems to ensure they are resolved effectively.



Applications:
Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots,

building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting ,

shopping malls, supermarkets, kitchen, display, backlight and so on.
