12V IP68 Outdoor Permanent LED Lights for Christmas Holiday Funfair

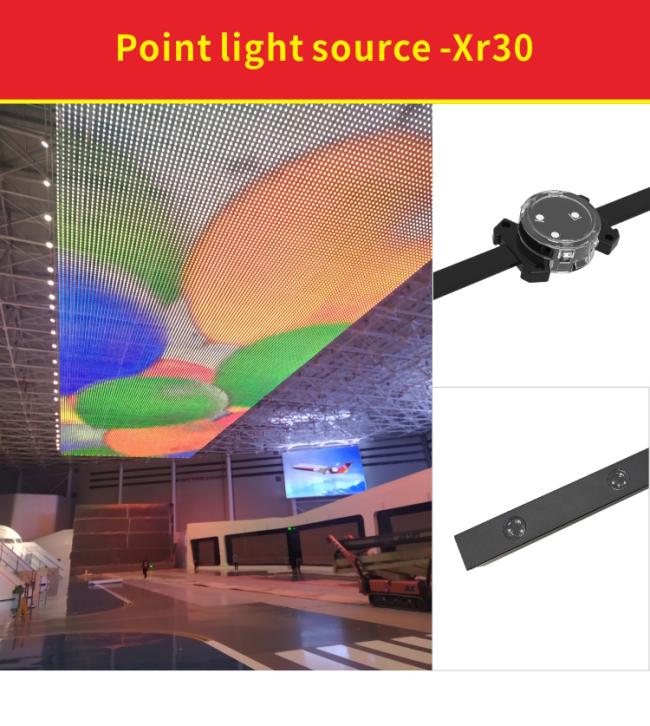

Outdoor advertising display:
LED point light source can be used to make large outdoor advertising display, such as LED display, building display and so on.
They are able to display dynamic images and videos to bring a stunning visual experience to the audience.
Outline of buildings, viaducts and Bridges:
LED point light sources can be used to outline the outline of the building, especially at night, such lighting can highlight the structural beauty of the building.
This kind of application is often seen in urban beautification projects.

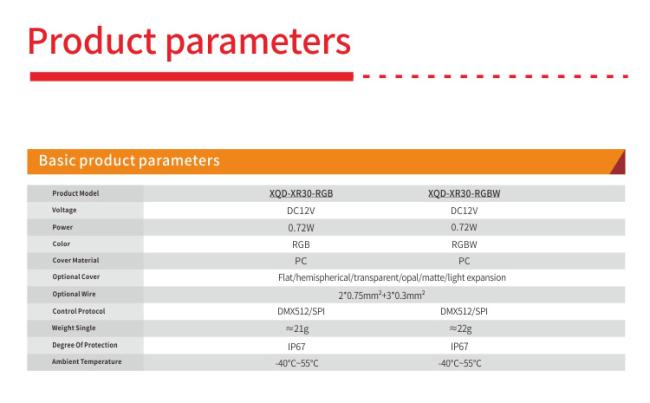

XR30 point light source technical parameters
| Basic product parameters | Product protection parameter | ||
| Product model | XR30-RGB-1.2W | Waterproof grade | IP67 |

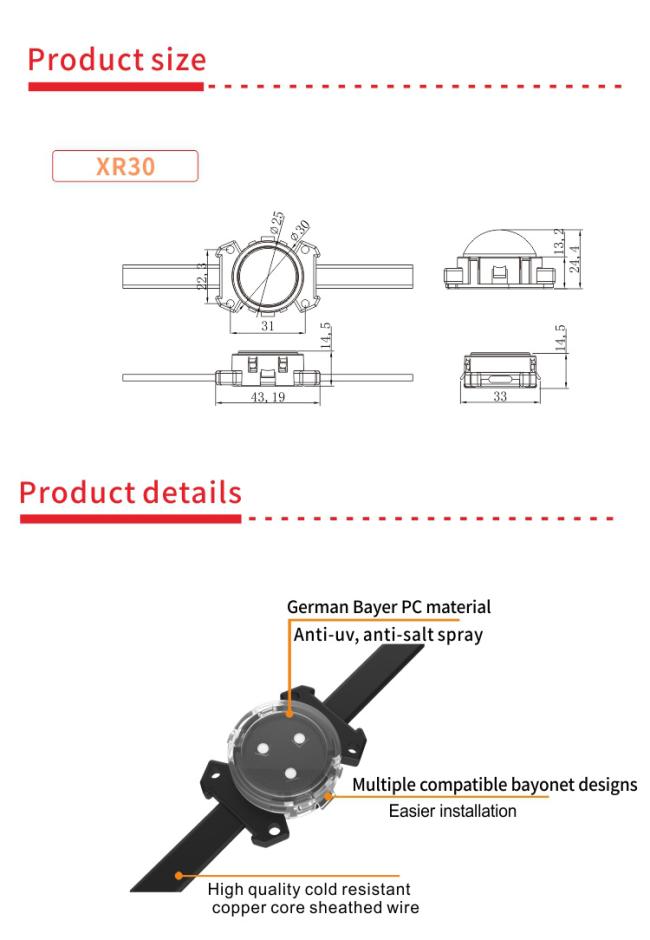

| Product size | Φ30mm*14.5(23.5Ball cover)mm | Shell flame retardant | V-0 |
| Application environment | Indoor and outdoor | UV resistance grade | 4 |
| Product weight | About21g | Salt spray test | Salt spray resistance |
| Shell material | PC | Impact resistance | IK10 |
| Maximum number of connections | 100PCS/string | Electrical safety class | Ⅲ class |
| Center distance | Minimum 7CM | Safety certification | CE FCC ROHS |
| Average product life | 50,000 hours | Operating temperature | -40℃-55℃ |
| Optional accessories | Aluminum groove, steel wire buckle | Case color | Black/Grey |
| Wire core | 2x0.75mm²+3x0.3mm² | ||
| Wire material | PVC | ||
| PCB material | FR-4 Fiberglass board | ||
| Product optical parameters | Electrical parameters of the product | ||
| LED color | RGB | Operating voltage | DC24V |
| Luminous Angle | 120° | Rated power | 1.2W |
| Color resolution | 3*16bit | Supporting system | |
| Lamp bead | SMD3535*4LED | Control system | DMX512 |
| Pixel point luminous flux | 25.1LM | Power supply system | DC24V Constant voltage |
| luminance | 7.4-7.8cd | ||
Applications:
Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots, building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, display, backlight and so on.
