DC24V 50mm RGBW LED Point Light Amusement Hotels Buildings lighting led string lights outdoor
IP67 50mm RGB RGBW DMX Pixel LED Point Light Source for Building Exterior Facade Lighting
DC24V 50mm RGBW LED Point Light Amusement Hotels Buildings lighting led string lights outdoor
Product features:
1. Adopt front full seal filling structure, good heat dissipation performance, high protection level;
2. Outdoor special waterproof lamp beads, pure color, stable performance;
3. Dust and anti-UV material mask, small size, exquisite appearance, indoor and outdoor universal;
4. Can be applied to large and medium-sized advertising signs, large area display on building facades,
Contour trench edge, interior and exterior surface decoration lighting;
XR30 point light source technical parameters
| Basic product parameters | Product protection parameter | ||
| Product model | XR30-RGB-1.2W | Waterproof grade | IP67 |

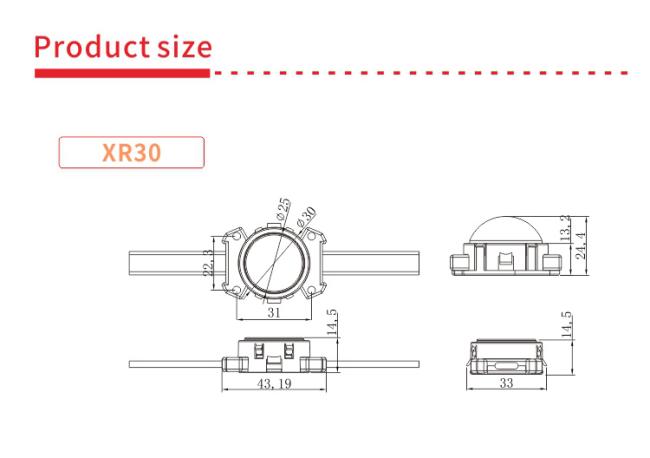

| Product size | Φ30mm*14.5(23.5Ball cover)mm | Shell flame retardant | V-0 |
| Application environment | Indoor and outdoor | UV resistance grade | 4 |
| Product weight | About21g | Salt spray test | Salt spray resistance |
| Shell material | PC | Impact resistance | IK10 |
| Maximum number of connections | 100PCS/string | Electrical safety class | Ⅲ class |
| Center distance | Minimum 7CM | Safety certification | CE FCC ROHS |
| Average product life | 50,000 hours | Operating temperature | -40℃-55℃ |
| Optional accessories | Aluminum groove, steel wire buckle | Case color | Black/Grey |
| Wire core | 2x0.75mm²+3x0.3mm² | ||
| Wire material | PVC | ||
| PCB material | FR-4 Fiberglass board | ||
| Product optical parameters | Electrical parameters of the product | ||
| LED color | RGB | Operating voltage | DC24V |
| Luminous Angle | 120° | Rated power | 1.2W |
| Color resolution | 3*16bit | Supporting system | |
| Lamp bead | SMD3535*4LED | Control system | DMX512 |
| Pixel point luminous flux | 25.1LM | Power supply system | DC24V Constant voltage |
| luminance | 7.4-7.8cd | ||
Applications:
Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots, building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, display, backlight and so on.
