Customized Optical Glass Plano Convex Cylindrical Lens For Optics And Lighting

Price Negotiable

Price: Negociation

MOQ: 500 pieces

Delivery Time: Negotiable

Brand: LONGWAY

Product Description

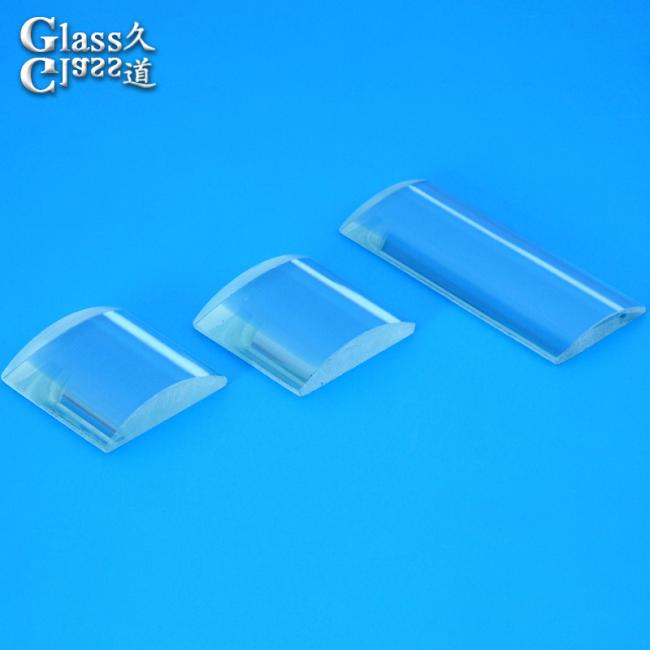

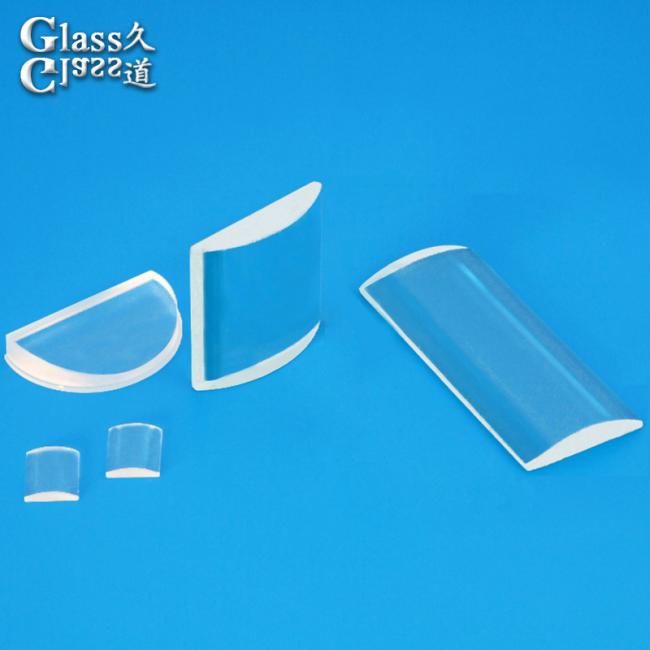

Customized Optical Glass Plano Convex Cylindrical Lens For Optics And Lighting

Raw Material: High-quality optical glass is used to ensure minimal aberrations and distortion.
Quality: These lenses are manufactured with high precision standards in mind, ensuring minimal defects and imperfections. They provide excellent optical quality, making them ideal for optics and lighting applications.
Function:
- Light focusing: The plano convex design focuses light onto a single point, enabling precise imaging.
- Image formation: It forms images with high accuracy and resolution.
- Minimized distortion: The cylindrical shape reduces distortion and ensures minimal aberrations.
Application: These lenses are used in various optics and lighting applications, including:
- Microscopes
- Telescopes
- LED lights
- Scientific research (interferometry and microscopy)
- Industrial inspection systems
Benefits:
- High-quality imaging: Customized optical glass plano convex cylindrical lenses provide high-quality imaging and accurate results.
- Minimized distortion: They minimize distortion and ensure minimal aberrations.
- Cost-effective: By reducing the need for post-processing, these lenses can help save time and resources.

Name	optical glass
Material	Optical Glass,Bk-7,Pyrex,Fused Silica,Sapphire,quartz
Diameter Tolerance	+0/-0.2 mm
Thickness Tolerance	+/-0.2 mm
Cler Aperture	over 90%
Flatness	^/4 @632.8nm
Surface Quality	80/50~10/5 scratch and dig
Transmission	above 92%
Chamfer	0.1-0.3 mm x 45 degree
Focal Length Tolerance	+/-2%
Back Focal Length Tolerance	+/-2%
Coating	available
Usage	opticl system, photographic sysem, Lighting system,Electronic apparatuse.g.laser,camera,monitor,projector, magnifier,telescope,polarizer, electronic instrument,led etc.
