Pneumatic ball type diverter valve for single channel powder particle conveying
Pneumatic ball type diverter valve for single channel powder particle conveying
Product Description:
Our ball type high-pressure directional valve can withstand a pressure difference of 6.0 barg and is used at any position in dense phase transmission pipelines. It adopts a precision cast shell and a smooth channel design without dead corners. The strict processing accuracy ensures that the directional valve channel is closely adhered to the valve core, solving the problem of material jamming in the conveying of powder particles. According to customer requirements, stainless steel or carbon steel materials can be selected to meet various additional requirements such as mirror polishing, ceramic lining, and PTFE coating.
Product Features:
1) Meet a pressure difference of 6.0 barg
2) Applicable temperature: -20 ° C to 120 ° C
3) Can be lined with ceramic
4) Can be used in explosion-proof areas
5) With CE and EAC Certificate
Product Parameters:
| No | Item | Note |
| 1 | Valve type | Ball form diverter valve |
| 2 | Pressure | 6.0 barg |
| 3 | Height | 468mm |
| 4 | Temperature | From minus 20 degrees to 120 degrees |
| 5 |
Seal |
Optional hard seal structure |
| 6 | Cylinder | SEN Brand |

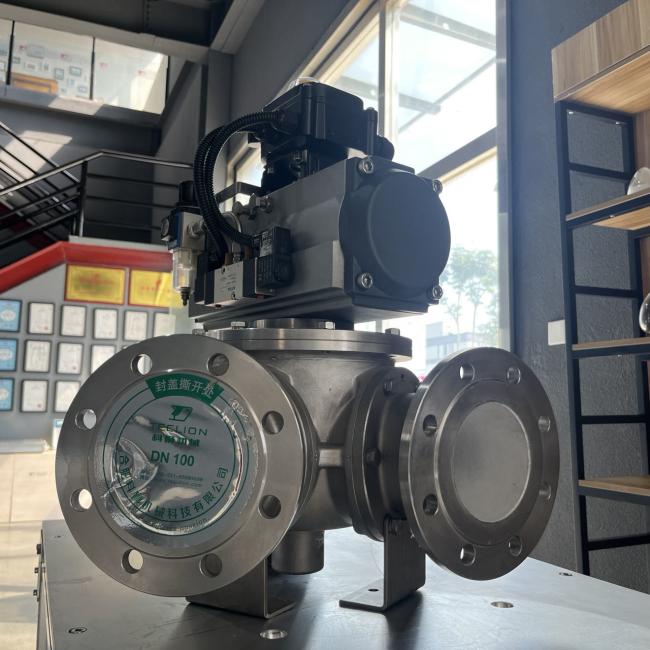

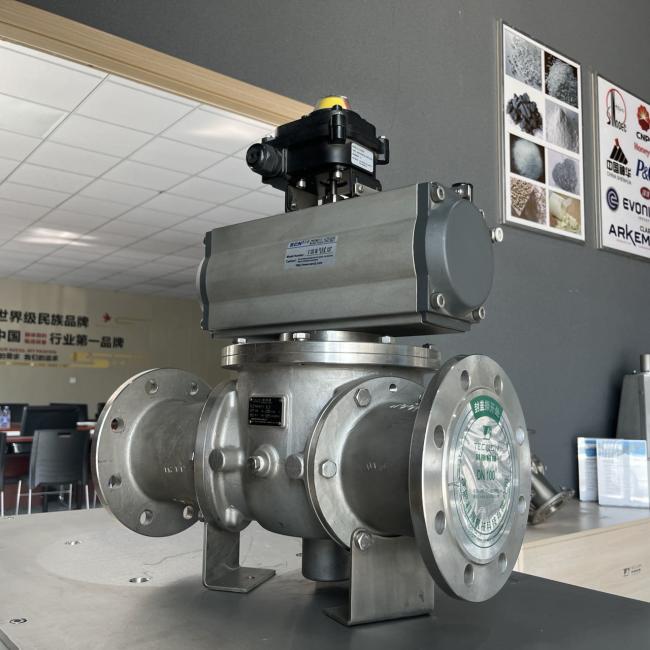

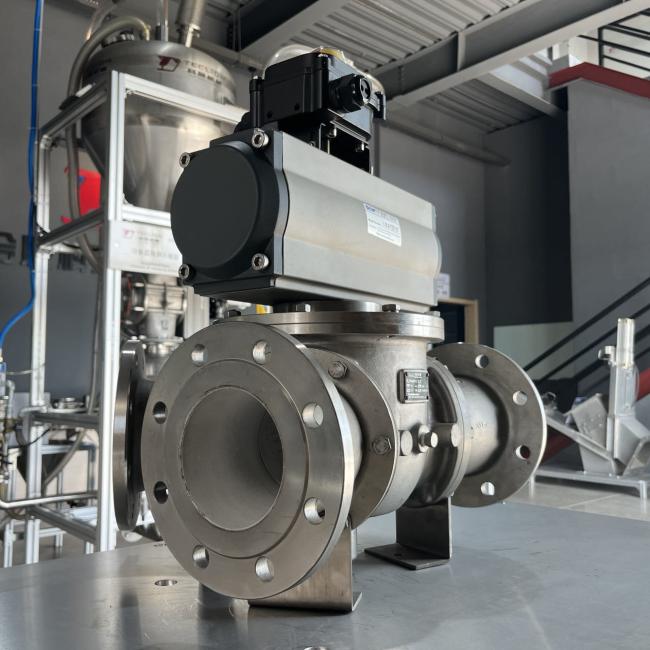

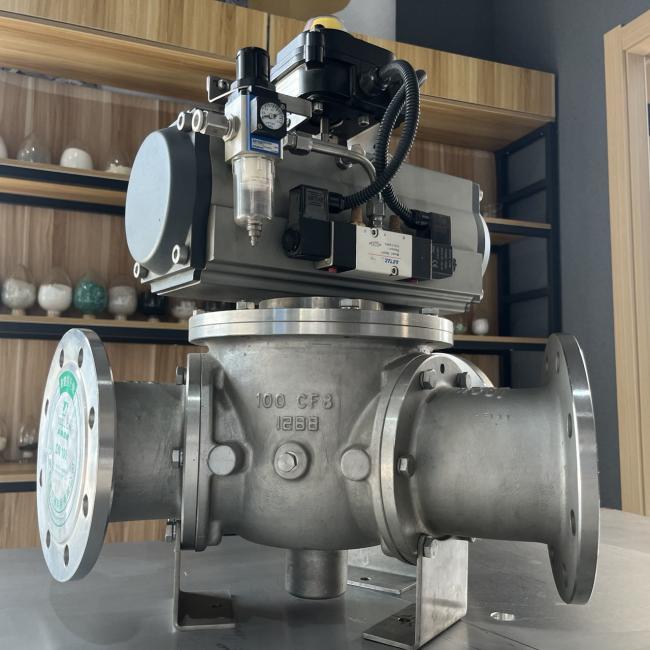

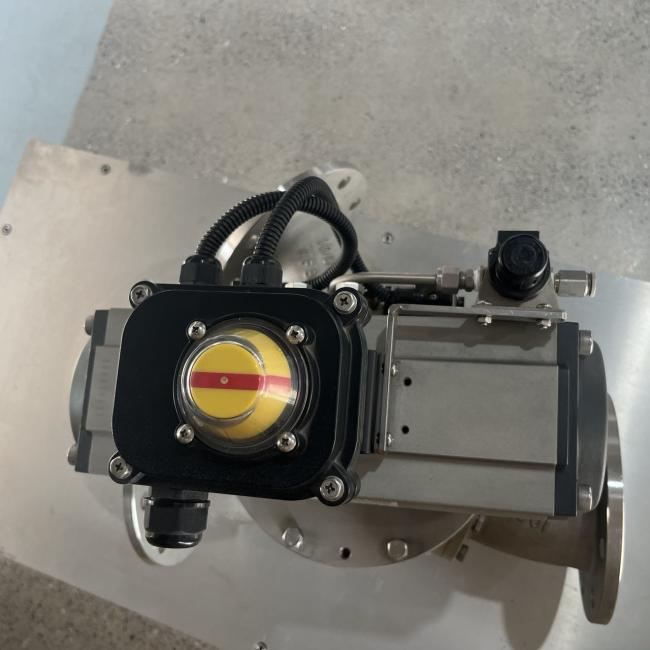

Product Pictures:
