316L Material Powder Conveying Ball Pneumatic Diverter Valve
Price:
99
MOQ:
1
Delivery Time:
35 working days
Brand:
TECLION
Product Description

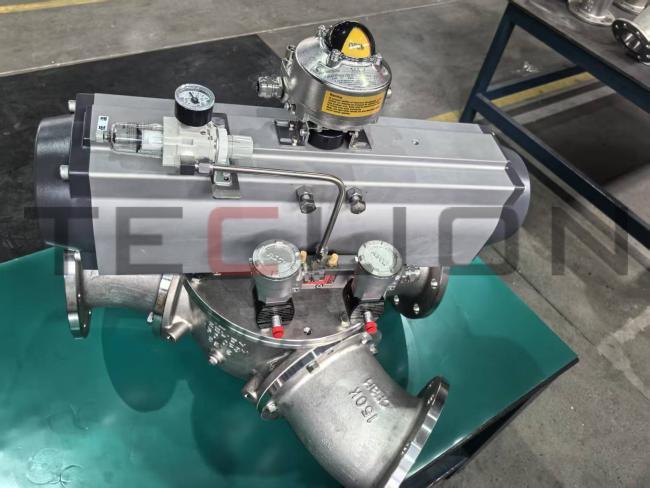

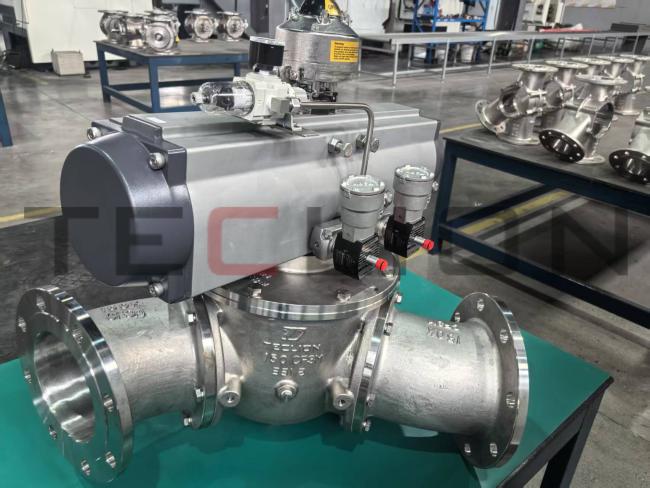

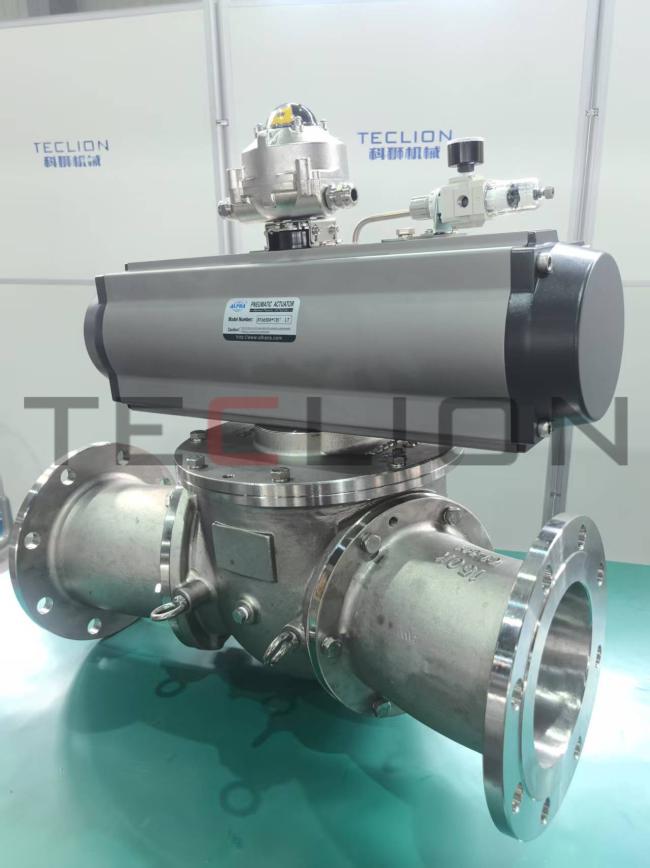

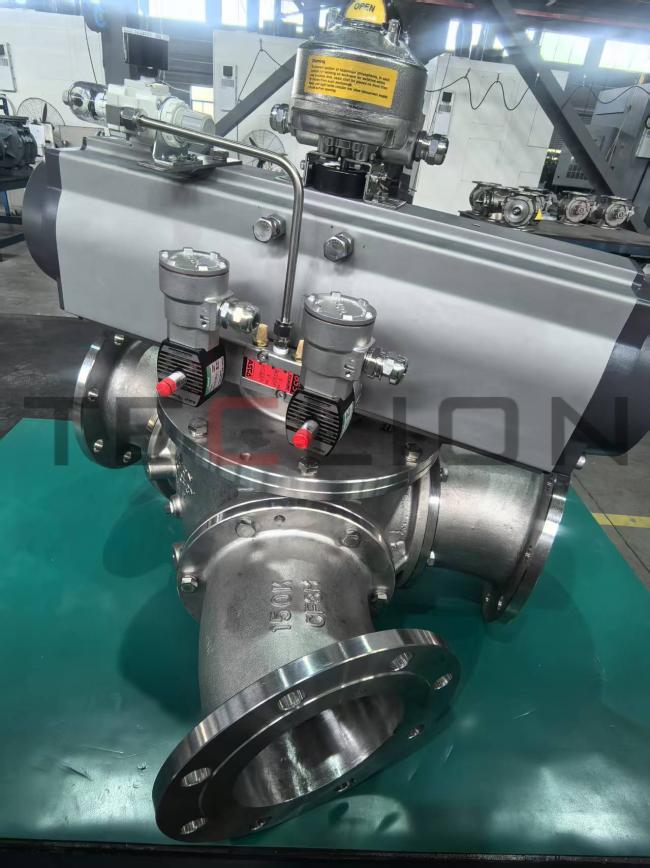

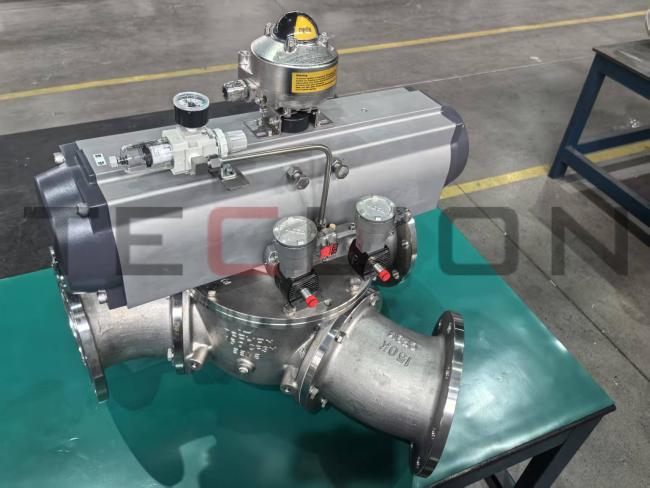

316L material powder conveying ball Pneumatic Diverter Valve
Product Description:
In the inner cavity of the valve body, the valve core can swing at a certain angle to achieve three-way, one in two out or two in one out.
The swing speed can be adjusted by adding a throttle valve (not standard), and generally the factory reversing speed is less than 8s.
Ball Pneumatic Diverter Valve Product Features:
1)Three port seal
2)Smooth channel without undulations or dead corners
3)Flow direction indication is concise and clear
4)Can be used at any position of dense phase transportation pipelines
5)Suitable for explosion-proof areas
Product Parameters:
| No | Item | Note |
| 1 | Valve type | DBK diverter valve |
| 2 | Size | DN50-300 |
| 3 | Application | Pneumatic transmission pipeline and gravity discharge reversing |
| 4 | Media | Powders or granular products |
| 5 | Customized support | OEM, ODM, OBM, Software reengineering |
