22kw Hydraulic Rock Drill for Fast Drilling Drill Hole Depth 100m Shank Types T38/T45
Price:
Negotiable
MOQ:
5
Delivery Time:
Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays
Product Description

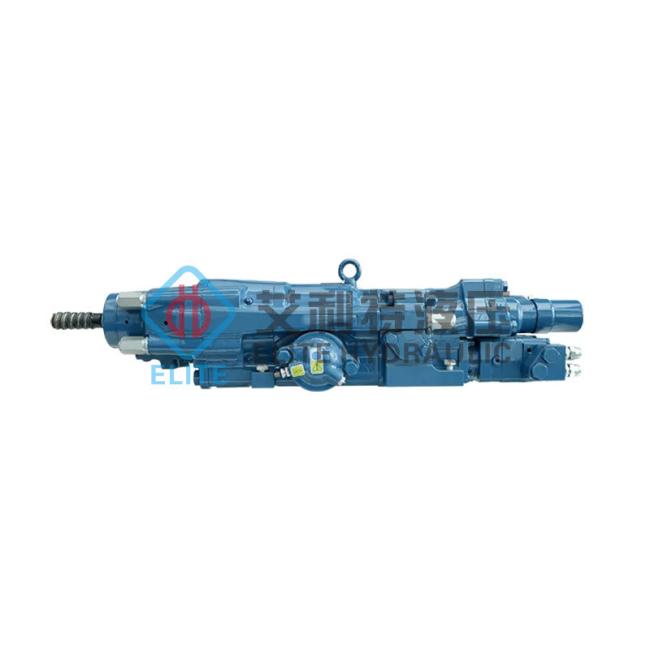

HA22L/D rock drill
Product Description
The HA22L/D Rock Drill is a simply designed hydraulic rock drill introduced for underground production drilling applications. Its high drilling speed, good drill rod economy, reliable quality, high safety, and low failure rate make it a preferred rock drilling equipment for mining by domestic and international customers.
Key Specifications:
Impact Power: 22 kW
Drilling Diameter: 33-76 mm
Dimensions: 1008*251*223mm
Shank Types: T38/T45
Product Details
High Production Efficiency and Reduced Operating Costs of Hydraulic Rock Drills
The efficient hydraulic dual-damping system not only increases production efficiency but also provides excellent protection for the drilling tools and rock drill during operation. Maintenance intervals can reach up to 800 impact hours, significantly reducing customer operating costs.
Independent Lubrication of Hydraulic Rock Drill Drive Head Increases Productivity
The drive head's independent lubrication and pressure oil film lubrication on all engagement surfaces, along with edge bolt technology, not only enhance productivity but also reduce downtime interruptions.
Simple and Stable Design of Hydraulic Rock Drills
The robust and simple design ensures consistent performance, with fewer parts and settings, reducing complexity and making maintenance and repairs straightforward.
![22kw Hydraulic Rock Drill for Underground Production Drilling Machines]()
![22kw Hydraulic Rock Drill for Underground Production Drilling Machines]()
![22kw Hydraulic Rock Drill for Underground Production Drilling Machines]()
![22kw Hydraulic Rock Drill for Underground Production Drilling Machines]()
![22kw Hydraulic Rock Drill for Underground Production Drilling Machines]()
![22kw Hydraulic Rock Drill for Underground Production Drilling Machines]()
![22kw Hydraulic Rock Drill for Underground Production Drilling Machines]()
![22kw Hydraulic Rock Drill for Underground Production Drilling Machines]()
![22kw Hydraulic Rock Drill for Underground Production Drilling Machines]()
Product Description
The HA22L/D Rock Drill is a simply designed hydraulic rock drill introduced for underground production drilling applications. Its high drilling speed, good drill rod economy, reliable quality, high safety, and low failure rate make it a preferred rock drilling equipment for mining by domestic and international customers.
Key Specifications:
Impact Power: 22 kW
Drilling Diameter: 33-76 mm
Dimensions: 1008*251*223mm
Shank Types: T38/T45
Product Details
High Production Efficiency and Reduced Operating Costs of Hydraulic Rock Drills
The efficient hydraulic dual-damping system not only increases production efficiency but also provides excellent protection for the drilling tools and rock drill during operation. Maintenance intervals can reach up to 800 impact hours, significantly reducing customer operating costs.
Independent Lubrication of Hydraulic Rock Drill Drive Head Increases Productivity
The drive head's independent lubrication and pressure oil film lubrication on all engagement surfaces, along with edge bolt technology, not only enhance productivity but also reduce downtime interruptions.
Simple and Stable Design of Hydraulic Rock Drills
The robust and simple design ensures consistent performance, with fewer parts and settings, reducing complexity and making maintenance and repairs straightforward.
Technical Parameters
| HA22L/D (YYG-22/1550) Rock Drill | ||
| Structure | ||
| Dimension (include shank) | mm*mm*mm | 1008X292X233 |
| Weight | KG | 180 |
| Center Height | mm | 88 |
| Shank | - | T38E/T45E |
| Hole Diameter | mm | 64-102 |
| Impact Functions | ||
| Max. Impact Power | KW | 22 |
| Oil Inlet Pressure | Bar | 220 |
| Impact Frequency | HZ | 53 |
| Flow | L/min | 105 |
| Impact Energy | J | 400 |
| Rotation Functions | ||
| Displacement | CC | 160/250 |
| Rotation Speed | Rpm | 0-215/0-135 |
| Max. Torque | Nm | 1000/1550 |
| Oil Inlet Pressure | Bar | 210/200 |
| Flow | L/min | 75 |
| Others | ||
| Water Pressure | Bar | 8-25 |
| Water Flow | L/min | 40-120 |
| Air Lubrication Pressure | Bar | 3 |
| Lubrication Air Flow | L/S | 7 |
