25kw Hydraulic Drifter for Mining and Tunneling Drill 24h After-sales Service
Price:
Negotiable
MOQ:
5
Delivery Time:
Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays
Product Description

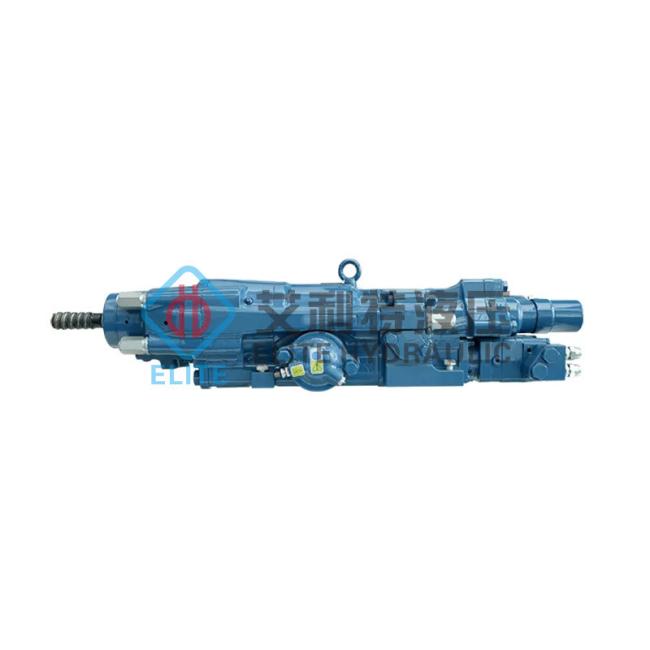

HA25LX rock drill
Product Description
The HA25LX is a hydraulic rock drill specifically designed for heavy-duty, continuous deep hole drilling. It features a powerful built-in hydraulic anti-jamming device suitable for rock conditions prone to drill rod jamming. The anti-jamming extraction device utilizes impact energy to recoil jammed drill rods out of the rock.
Key Specifications:
Impact Power: 25 kW
Drilling Diameter: 76-115 mm
Shank Types: T45E/T51E/TDS76
Impact Piston Design: The impact piston is designed to match the dimensions of the drill rod, effectively minimizing impact stress and prolonging equipment lifespan.
Efficient Hydraulic Dual-Damping System and Floating Joint: Equipped with an efficient hydraulic dual-damping system and a floating joint, significantly enhancing the productivity of the rock drill while improving the economic efficiency of the drill rod by reducing wear and replacement frequency.
Powerful Infinitely Variable Speed Bi-Directional Motor: The rock drill features a powerful infinitely variable speed bi-directional motor, providing high torque output and excellent speed control, making it suitable for a wide range of challenging conditions and boosting operational efficiency.
![25kw Hydraulic Drifter for Mining, Tunneling Drill]()
![25kw Hydraulic Drifter for Mining, Tunneling Drill]()
![25kw Hydraulic Drifter for Mining, Tunneling Drill]()
![25kw Hydraulic Drifter for Mining, Tunneling Drill]()
![25kw Hydraulic Drifter for Mining, Tunneling Drill]()
![25kw Hydraulic Drifter for Mining, Tunneling Drill]()
![25kw Hydraulic Drifter for Mining, Tunneling Drill]()
![25kw Hydraulic Drifter for Mining, Tunneling Drill]()
![25kw Hydraulic Drifter for Mining, Tunneling Drill]()
Product Description
The HA25LX is a hydraulic rock drill specifically designed for heavy-duty, continuous deep hole drilling. It features a powerful built-in hydraulic anti-jamming device suitable for rock conditions prone to drill rod jamming. The anti-jamming extraction device utilizes impact energy to recoil jammed drill rods out of the rock.
Key Specifications:
Impact Power: 25 kW
Drilling Diameter: 76-115 mm
Shank Types: T45E/T51E/TDS76
Product Details
Impact Piston Design: The impact piston is designed to match the dimensions of the drill rod, effectively minimizing impact stress and prolonging equipment lifespan.
Efficient Hydraulic Dual-Damping System and Floating Joint: Equipped with an efficient hydraulic dual-damping system and a floating joint, significantly enhancing the productivity of the rock drill while improving the economic efficiency of the drill rod by reducing wear and replacement frequency.
Powerful Infinitely Variable Speed Bi-Directional Motor: The rock drill features a powerful infinitely variable speed bi-directional motor, providing high torque output and excellent speed control, making it suitable for a wide range of challenging conditions and boosting operational efficiency.
Technical Parameters
| HA25LXRock Drill | ||
| Structure | ||
| Dimension | mm*mm*mm | 1320X318X265 |
| Weight | KG | 250 |
| Center Height | mm | 122 |
| Shank | - | T45E/T51E/TDS76 |
| Hole Diameter | mm | 76-115 |
| Impact Functions | ||
| Max. Impact Power | KW | 25 |
| Oil Inlet Pressure | Bar | 230 |
| Impact Frequency | HZ | 42-55 |
| Flow | L/min | 110 |
| Impact Energy | J | 590/450 |
| Rotation Functions | ||
| Displacement | CC | 250/315 |
| Rotation Speed | Rpm | 135/110 |
| Max. Torque | Nm | 1550/1970 |
| Oil Inlet Pressure | Bar | 210 |
| Flow | L/min | 75 |
| Others | ||
| Water Pressure | Bar | 20 |
