High Performance Torque Planetary Non-Steering Axle for Engineering Equipment
Price:
Negotiable
MOQ:
5
Delivery Time:
Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays
Product Description
Elite, committed to building a world-class drivetrain brand, strives to become a well-known manufacturer of planetary gearboxes, transfer cases and axles. With more than 20 years of experience in transmission design and manufacturing, Elite will provide you with customized gearboxes, transfer cases and axle solutions for any specific application.
Advantages

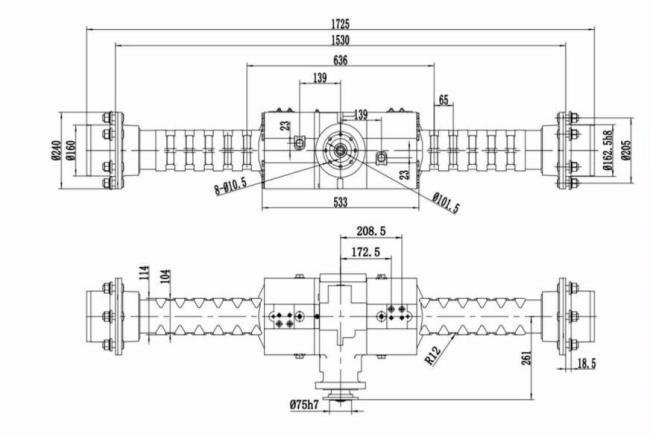

Drawing
![Planetary Non-Steering Axle with High Performance Replacing of Dana Spicer 111]()
Parameter
![Planetary Non-Steering Axle with High Performance Replacing of Dana Spicer 111]()
![Planetary Non-Steering Axle with High Performance Replacing of Dana Spicer 111]()
![Planetary Non-Steering Axle with High Performance Replacing of Dana Spicer 111]()
![Planetary Non-Steering Axle with High Performance Replacing of Dana Spicer 111]()
![Planetary Non-Steering Axle with High Performance Replacing of Dana Spicer 111]()
![Planetary Non-Steering Axle with High Performance Replacing of Dana Spicer 111]()
Advantages
| 1 | For service braking, it adopts a fully enclosed wet multi-disc braking,with hydraulic release and spring braking, ensuring reliable braking and a long service life for the brake | |
| 2 | For parking braking, it adopts spring for braking and hydraulic system for releasing, which can serve as service braking in the case of emergency to ensure driving safety | |
| 3 | Manual brake release is possible when the vehicle is being towed | |
| 4 | Its advanced structural design and reliable quality make it widely applicable in mining machinery and construction machinery, especially suitable for narrow, low, and muddy working surfaces | |
| 5 | Our axle parts are completely interchangeable with the American Dana axle111 parts. | |
Drawing
Parameter
| Parameter | Unit | Value |
| Maximum brake pressure | Mpa | 8 |
| Parking brake-releasing pressure | Mpa | 1.5-3 |
| Maximum cooling pressure | Mpa | 0.07 |
| Speed ratio of main reducer | I | 29:9 |
| Speed ratio of wheel reducer | I | 4.235:1 |
| Total speed ratio | I | 13.646 |
| Maximum static bearing capacity | N | 100000 |
| Maximum dynamic bearing capacity | N | 60000 |
