48pcs LED Lamps and 7.5KW Exhaust Fan CE Approved Spray Booth for Automotive Painting
Price:
$9,480.00/sets >=1 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
wintai
Product Description
Product Description

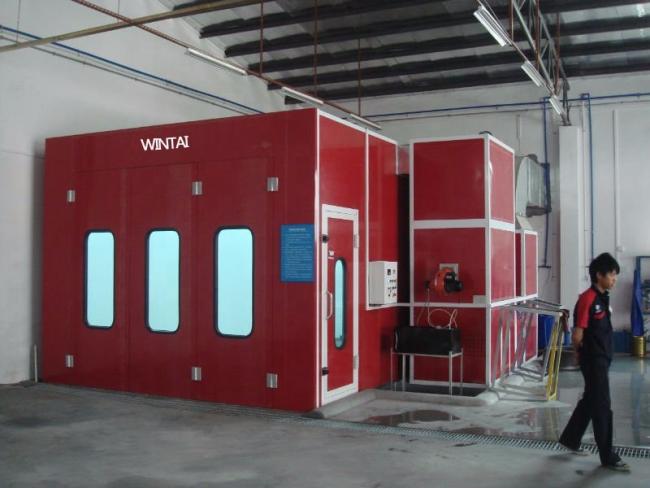

CE approved spray booth car painting room automotive spray and baking booth
Model External Size (m) 7x5.3x3.4 Internal Size (m) 6.9x3.9x2.7 Air Flow (m3/h) 24000 Air Speed (m/s) 0.25(no load), Power (kw) 16 Vehicle Suited Saloon Car Jeep

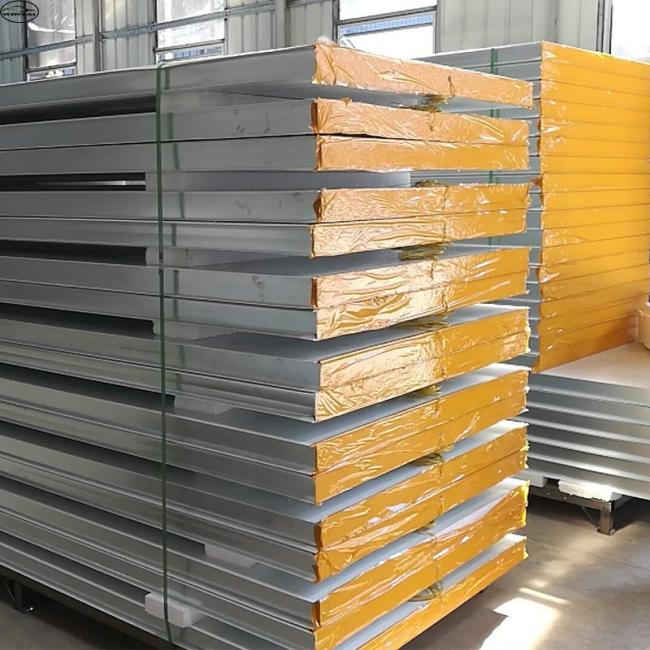

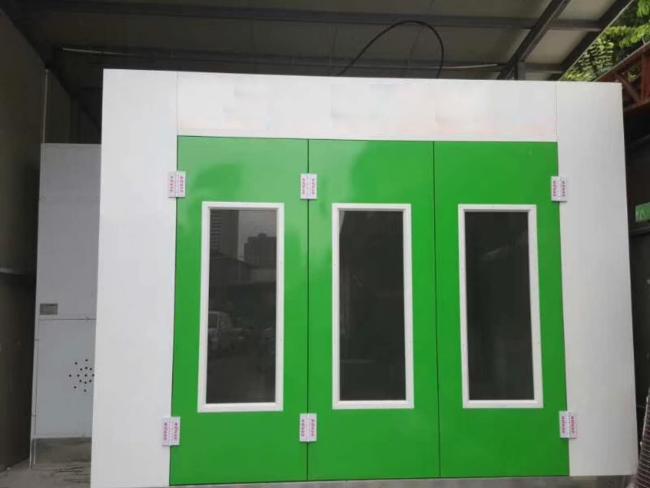

1. Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. with 0.426mm thickness colorful steel board outside, Galvanized steel as roof panel. 2. Basement: Galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter & 3 rows of checkered plates. 2 pcs of ramps. 3. Door: 3 pcs of luxury sheet metal front doors . Size: 3000(w) x 2650(h). 1 pc of emergency door. 4. Air Circulation System: 1pc of 7.5KW European type intake fan, 1pc of 7.5KW European type exhaust fan. BELIMO 20N electric damper. 5. Burner: Italy Riello G20 diesel burner, Max. temperature at 80。C. 6. Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%. 7. Lighting System: Ceiling light has 32 pcs of 18w LED lamps. Side light has 16 pcs of 18w LED lamps. 8. Air Purification: Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%. 9. Pollution Control System: Multi-layer fiberglass filter
Specification
item | value |
Type | Spray Booths |
Power | 16 |
External Size | 7x5.3x3.4M |
Internal Size | 6.9x3.9x2.7M |
Voltage | 380V/50HZ |
Disc Dia. | NM |
No Load Speed | NM |
Place of Origin | China |
Guangdong | |
Brand Name | wintai |
Model Number | WW0900 |
Warranty | 1 year warranty |
Air intake fan | 1pc of 7.5KW European type intake fan |
Air exhaust fan | 1pc of 7.5KW European type exhaust fan |
Burner | G20 diesel burner |
Lighting System | 48pcs LED lamps |
Air Flow (m3/h) | 24000 |

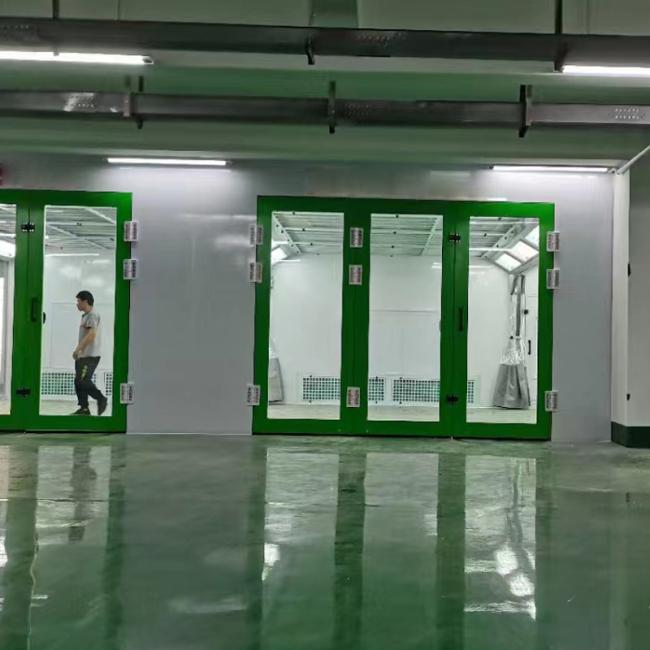

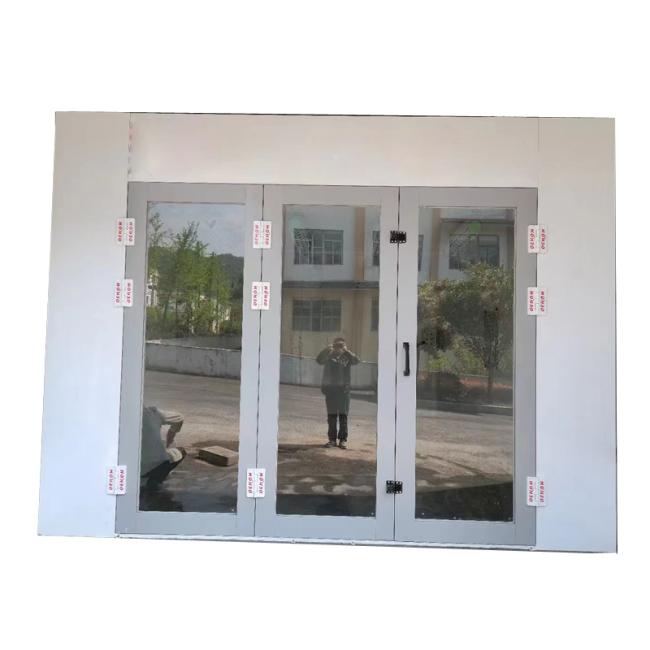

door | big watch window |
Packing & Delivery
standard export package
