220V Diesel Burner Car Spray Booth With Internal Size 6900*4000*2700mm
Price:
$8,318.00/sets >=1 sets
MOQ:
1
Delivery Time:
25
Brand:
WINTAI
Product Description
220V 380V CE Approved Diesel Burner Car Spray Booth with Internal Size 6900*4000*2700mm
Product Description
CE approved painting booth High-efficient diesel burner car spray booth
Product Application
This high quality diesel/infrared car spray booth with turbo fan is widely used in automotive, furniture and other industry.
Product Application
This high quality diesel/infrared car spray booth with turbo fan is widely used in automotive, furniture and other industry.
It creats a perfect dustless space for painting and baking cars, furniture and other products. It uses centrifugal fans as intake & exhaust fans. It uses 3 ROWS OF GRIDS and 2 ROWS of checkered plates so the air can be recycled more quickly. LPG/GAS/diesel burner or infrared lamps are optional.
Main Features Configuration:
1)Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. Colorful steel skin boards 0.426mm thickness. Galvanized steel roof panel.

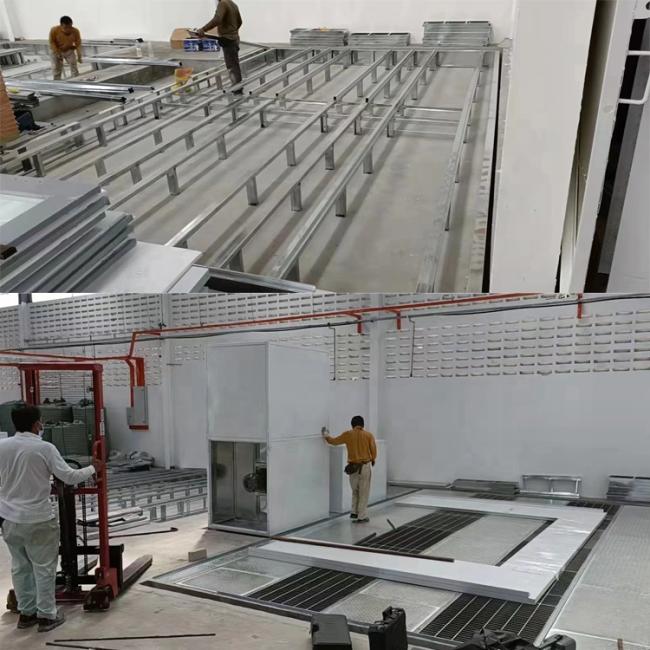

2) Basement: Galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter & 3 rows of checkered plates. 2 pcs of ramps.
3)Door: 3 pcs of front doors with aluminum frame. Size: 3000(w) x 2650(h). 1 pc of emergency door.
4)Air Circulation System: 1x7.5kw turbo fan as intake fan, 1x5.5kw turbo fan as exhaust fan. BELIMO 20N electric damper.
5)Burner: Italy Riello G20 diesel burner, 200000Kcal/h. The heating time 5-7min(20-60.C). Max. temperature at 80.C. Fuel consumption is 4-5kg/vehicle.
6) Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%. 7)Lighting System: Ceiling light has 32 pcs of 18w LED lamps. Side light has 16 pcs of 18w LED lamps. 900 Lux.
8)Air Purification: Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture
granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.
9)Pollution Control System: Multi-layer fiberglass filter.
Main Features Configuration:
1)Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. Colorful steel skin boards 0.426mm thickness. Galvanized steel roof panel.
2) Basement: Galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter & 3 rows of checkered plates. 2 pcs of ramps.
3)Door: 3 pcs of front doors with aluminum frame. Size: 3000(w) x 2650(h). 1 pc of emergency door.
4)Air Circulation System: 1x7.5kw turbo fan as intake fan, 1x5.5kw turbo fan as exhaust fan. BELIMO 20N electric damper.
5)Burner: Italy Riello G20 diesel burner, 200000Kcal/h. The heating time 5-7min(20-60.C). Max. temperature at 80.C. Fuel consumption is 4-5kg/vehicle.
6) Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%. 7)Lighting System: Ceiling light has 32 pcs of 18w LED lamps. Side light has 16 pcs of 18w LED lamps. 900 Lux.
8)Air Purification: Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture
granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.
9)Pollution Control System: Multi-layer fiberglass filter.
External Size (m) 7.02x5.3x3.40
Internal Size (m) 6.9x4.0x2.7
Air Volume 24000
Air Flow (m3/h) 0.3-0.5
Power (kw) 14
Specification
|
item
|
value
|
|
Type
|
Spray Booths
|
|
Power
|
16KW
|
|
External Size
|
7000*5450*3350mm
|
|
Internal Size
|
6900*3900*2650mm
|
|
Voltage
|
220V/380V
|
|
Disc Dia.
|
NM
|
|
No Load Speed
|
NM
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
WINTAI
|
|
Model Number
|
WW0802
|
|
Warranty
|
1 year
|
|
Color
|
red,white, orange,blue
|
|
Wall
|
50mm
|
|
Heating System
|
diesel/gas/LPG burner
|
|
External Size
|
7000*5450*3350mm
|
|
Internal Size
|
6900*3900*2650mm
|
|
Air Flow
|
24000
|
|
Air Speed
|
0.3-0.5
|
|
Power
|
16KW
|
|
Vehicle Suited
|
Saloon Car Jeep
|
|
Certification
|
ce
|
Packing & Delivery
standard export package
