NM Disc Dia. European Automotive Car Paint Booth with LED Lights and CE Approval
Price:
$9,280.00/sets >=1 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
WINTAI
Product Description
NM Disc Dia. European Automotive Car Paint Booth with LED Lights and CE Approval
Product Overview

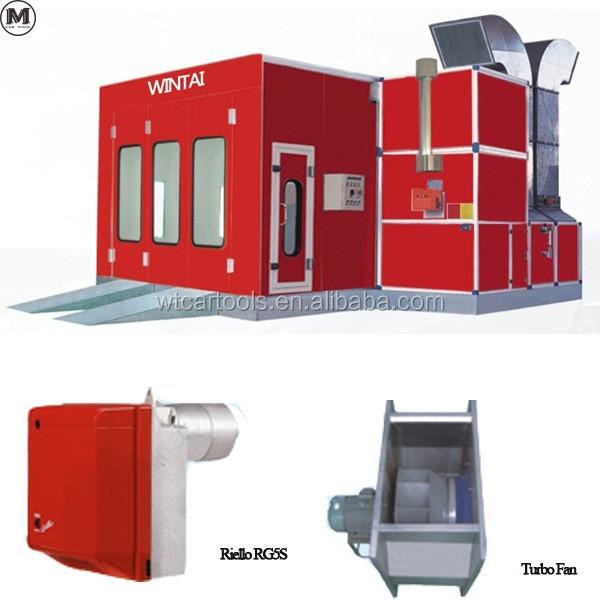

This European type diesel spray booth with turbo fan is widely used in automotive, furniture and other industries. It creates a perfect dust-free space for painting and baking cars, furniture, and other products. The system uses turbo fans as intake & exhaust fans for easy maintenance and features active carbon filtration for cleaner emission air.
Main Features
- Wallboard: Sandwich style EPS (expanded polystyrene) 50mm thickness with 0.476mm colorful steel skin boards. Galvanized steel roof panel.
- Basement: Galvanized steel sheet and square steel pipe construction with 3 rows of grids with floor filter & 2 rows of checkered plates. Full ramps included.
- Door: 3 luxury front doors with 0.8mm thickness colorful steel skin (3000mm W x 2600mm H). 1 emergency door with watching window and aluminum frame.
- Air Circulation System: 1 x 7.5kW direct drive intake fan, 1 x 5.5kW direct drive exhaust fan. BELIMO 20N electric damper.
- Burner: Italy Riello RG5S diesel burner, 260,000 Kcal/h. Heating time 4-5 minutes (20-60°C). Maximum temperature 80°C. Fuel consumption 5-6kg/vehicle.
- Heat Exchanger: Made of stainless steel with 85% heat exchange rate.
- Lighting System: Ceiling light with 32 pcs of 16W LED lamps. Side light with 16 pcs of 16W LED lamps. 1200 Lux illumination.
- Air Purification: Dual filtering structure with M pattern nonwoven primary filter bags (captures granules >10μm) and ceiling filter (captures granules >5μm). Air cleanliness reaches 98%.
- Pollution Control System: Special M pattern Active Carbon pocket Filter System.
Technical Specifications
| Model | External Size (m) | Internal Size (m) | Air Flow (m³/h) | Air Speed (m/s) | Power (kW) | Vehicle Suited |
|---|---|---|---|---|---|---|
| WW0900 | 7 x 5.45 x 3.4 | 6.9 x 3.9 x 2.7 | 25,000 | 0.3-0.5 | 15 | Saloon Car, Jeep |
Packaging & Delivery
Wallboard: EPS standard, rockwool optional
Package: Bubble paper protection
Packaging Details: Each part is labelled by part number for easy identification from packing list
Package: Bubble paper protection
Packaging Details: Each part is labelled by part number for easy identification from packing list
