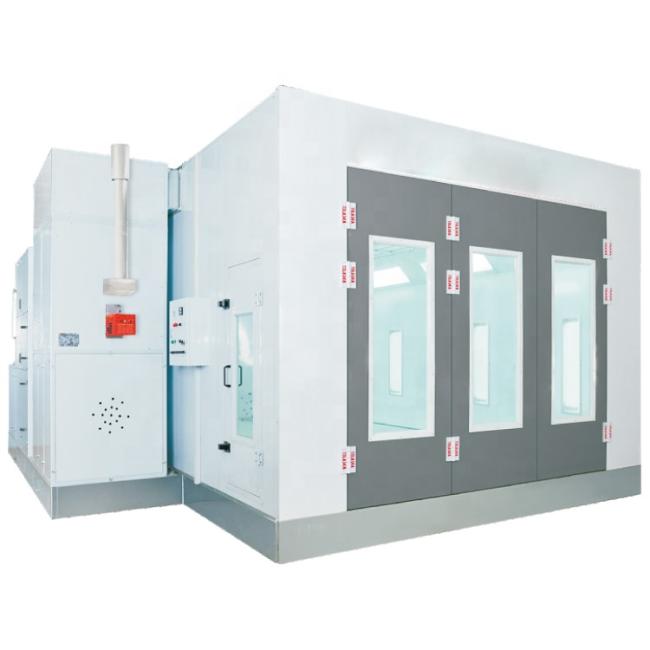

External Size 7x5.45x3.35m Car Spray Booth Baking Oven CE Approved for Auto Paint Room
Price:
$9,480.00/sets >=1 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Wintai
Product Description
Product Description
High Quality Car Spray Booth Baking Oven auto paint room
Configuration:

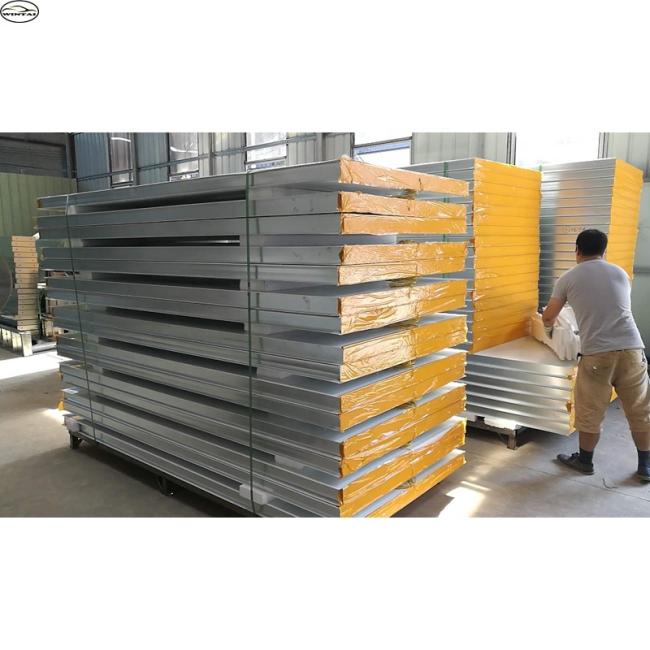

1. Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness.
Galvanized steel roof panel.

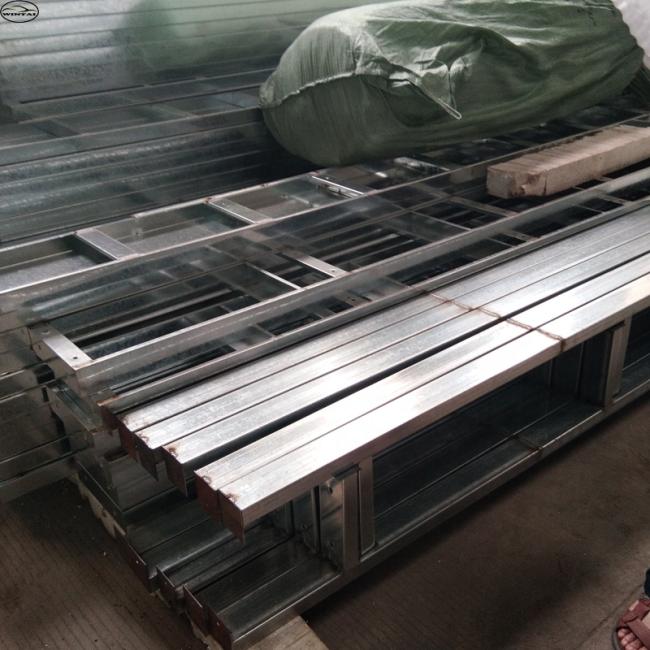

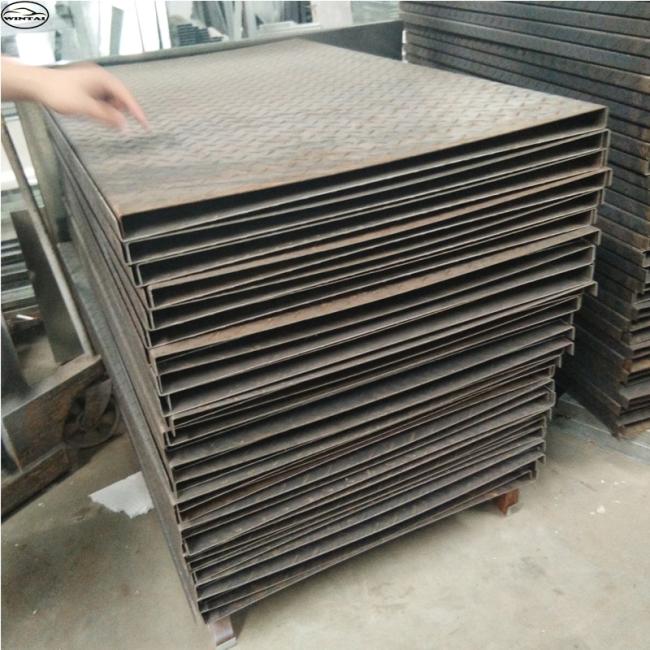

2.Basement: Galvanized steel sheet and square steel pipe construction. 3 rows of grids with floor filter & 2 rows of checkered
plates. Full ramps.
3.Door: 3 pcs of luxury front doors with 0.8mm thickness colorful steel skin Size: 3000(w) x 2650(h). 1 pc of emergency door. Watching window with aluminum frame.

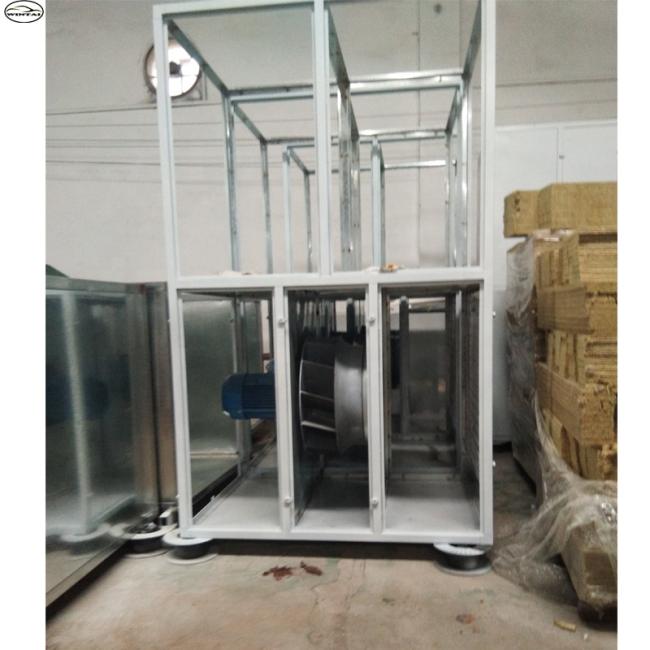

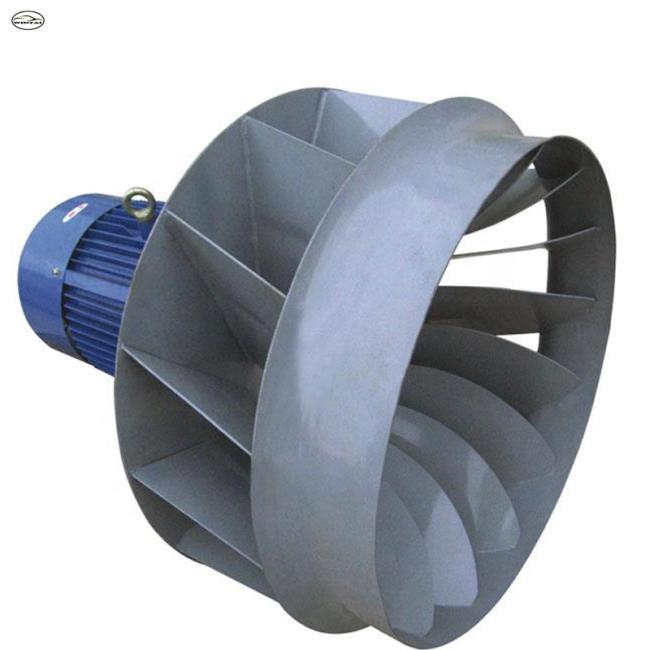

4.Air Circulation System: 1 x 7.5kw direct drive intake fan, 1x7.5kw direct drive exhaust fan. BELIMO 20N electric damper.
5. Burner: Italy Riello RG5S diesel burner, 260000Kcal/h. The heating time 4-5min
(20-60 C). Max. temperature at 80 C. Fuel consumption is 5-6kg/vehicle.
6. Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%.
7.Lighting System: Ceiling light has 32 pcs of 16w LED lamps. Side light has 16 pcs of 16w LED lamps.1200 Lux.
8. Air Purification: Dual filtering structure. The primary filter is M pattern nonwoven filter bags. It can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.
Configuration:
1. Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness.
Galvanized steel roof panel.
2.Basement: Galvanized steel sheet and square steel pipe construction. 3 rows of grids with floor filter & 2 rows of checkered
plates. Full ramps.
3.Door: 3 pcs of luxury front doors with 0.8mm thickness colorful steel skin Size: 3000(w) x 2650(h). 1 pc of emergency door. Watching window with aluminum frame.
4.Air Circulation System: 1 x 7.5kw direct drive intake fan, 1x7.5kw direct drive exhaust fan. BELIMO 20N electric damper.
5. Burner: Italy Riello RG5S diesel burner, 260000Kcal/h. The heating time 4-5min
(20-60 C). Max. temperature at 80 C. Fuel consumption is 5-6kg/vehicle.
6. Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%.
7.Lighting System: Ceiling light has 32 pcs of 16w LED lamps. Side light has 16 pcs of 16w LED lamps.1200 Lux.
8. Air Purification: Dual filtering structure. The primary filter is M pattern nonwoven filter bags. It can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.
Specification
item | value |
Type | Spray Booths |
Power | 15kw |
External Size | 7x5.45x3.4 |
Internal Size | 6.9x3.9x2.7 |
Voltage | NM |
Disc Dia. | nm |
No Load Speed | 0.3-0.5 |
Place of Origin | China |
Guangdong | |
Brand Name | Wintai |
Model Number | WW0900 |
Warranty | 1year |
Model | WW0900 |
External Size (m) | 7x5.45x3.35 |
Internal Size (m) | 6.9x3.9x2.65 |
Air Flow (m 3 /h) | 25000 |
Air Speed (m/s) | 0.3-0.5 |
Power (kw) | 15 |
Vehicle Suited | Saloon Car Jeep |
Door | 3 pcs of luxury front doors |
Burner | Italy RielloRG5S |
Max. temperature | 80 C |
Packing & Delivery
Standard Export Packages
