Direct Disc Dia. nm Car Painting and Baking Spray Booth with G10 Diesel Burner
Price:
$7,598.00/sets >=1 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
wintai
Product Description
Product Description

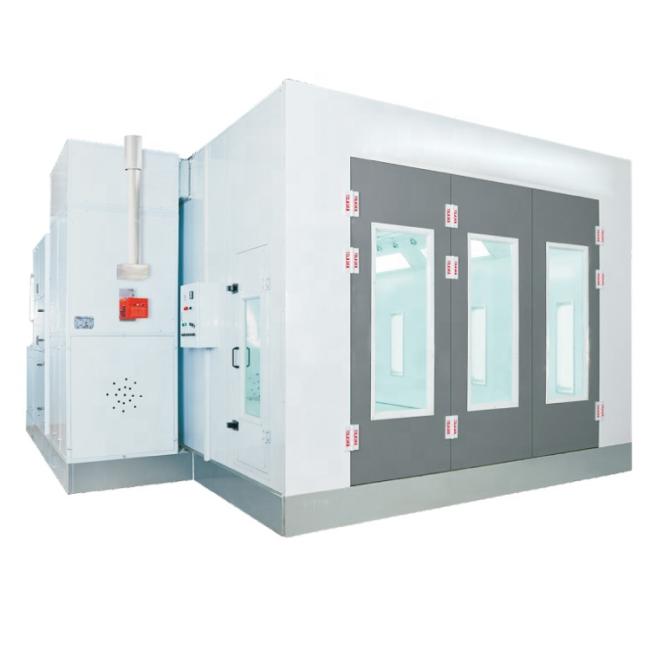

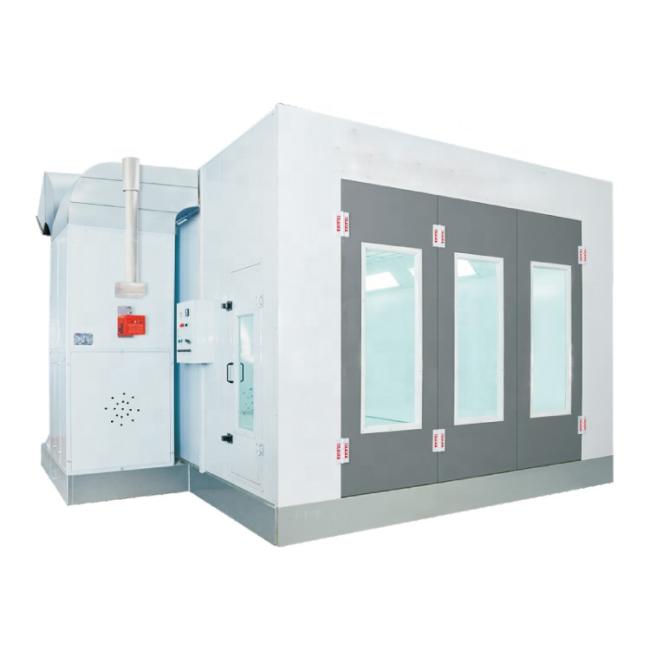

Guangzhou Factory direct economic spray booth car painting and baking booth
Model External Size (m) 7x5.3x3.4
Internal Size (m) 6.9x4.0x2.7
Air Flow (m3/h) 18000
Air Speed (m/s) 0.35(no load),
Power (kw) 9.5
Power (kw) 9.5
Vehicle Suited : Saloon Car Jeep

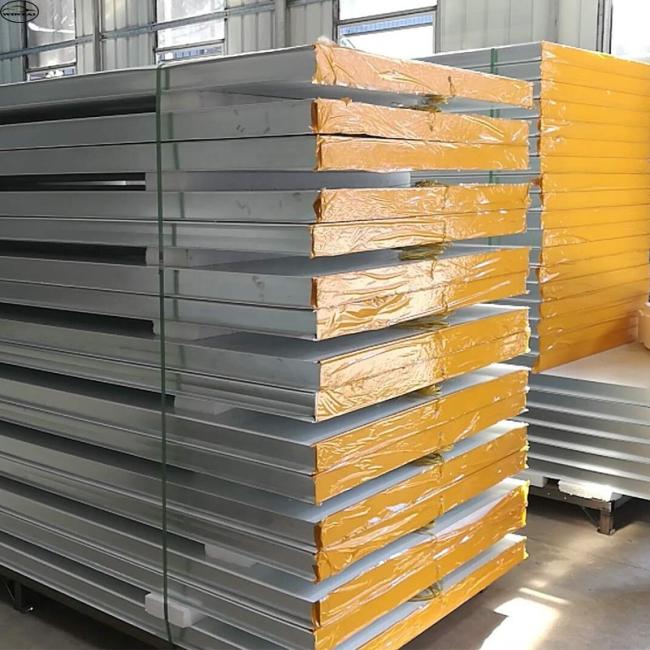

1. Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. colorful
steel board outside, Galvanized steel as roof panel.
steel board outside, Galvanized steel as roof panel.
2. Basement: Galvanized steel sheet and square steel pipe construction. 2
rows of grids with floor filter & 3 rows of checkered plates. 2 pcs of ramps.
rows of grids with floor filter & 3 rows of checkered plates. 2 pcs of ramps.
3. Door: 3 pcs of luxury sheet metal front doors with super big watching window .Size: 3000(w) x 2650(h). 1 pc of emergency door.
4. Air Circulation System: 1pc of 4KW European type intake fan, 1pc of 4KW European type exhaust fan. BELIMO 20N electric damper.
5. Burner: Italy Riello G10 diesel burner, Max. temperature at 80。C.
6.Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%.
7. Lighting System: Ceiling light has 24 pcs of 18w LED lamps. Side light is optional
8. Air Purification: Dual filtering structure. The primary filter can capture granules larger
than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%. 9.
Pollution Control System: Multi-layer fiberglass filter
than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%. 9.
Pollution Control System: Multi-layer fiberglass filter
Specification
item | value |
Type | Spray Booths |
Power | 9.5KW |
External Size | 7020*5300*3400mm |
Internal Size | 6900*4000*2700mm |
Voltage | 220V/380V |
Disc Dia. | nm |
No Load Speed | 0.35m/s |
Place of Origin | China |
Guangdong | |
Brand Name | wintai |
Model Number | WW0602 |
Warranty | 12months |
diesel burner | G10 |
Air intake | 18000m3/h |
Air exhausted | 18000m3/h |
wallboard | colorful steel with EPS |
