CE Certified Car Spray Booth with Air Circulation System 1 x 7.5kw Direct Drive Intake Fan
Price:
$9,480.00/sets >=1 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
WinTai
Product Description
CE Certified Car Spray Booth with Air Circulation System 1 x 7.5kw Direct Drive Intake Fan
Product Overview
CE approved Guangzhou Car Spray Painting Room WW0900 designed for professional automotive painting applications with advanced air filtration and temperature control systems.
Technical Specifications
- Wallboard: Sandwich style EPS (expanded polystyrene) 50mm thickness with 0.476mm colorful steel skin boards and galvanized steel roof panel
- Basement: Galvanized steel sheet and square steel pipe construction with 3 rows of grids with floor filter & 2 rows of checkered plates, full ramps
- Door System: 3 luxury front doors with 0.8mm thickness colorful steel skin (3000mm W x 2600mm H), 1 emergency door, viewing window with aluminum frame
- Air Circulation System: 1 x 7.5kw direct drive intake fan, 1 x 7.5kw direct drive exhaust fan, BELIMO 20N electric damper
- Burner: Italy Riello RG5S diesel burner, 260,000 Kcal/h, heating time 4-5 minutes (20-60°C), maximum temperature 80°C, fuel consumption 5-6kg/vehicle
- Heat Exchanger: Stainless steel construction with 85% heat exchange rate
- Lighting System: Ceiling: 32 pcs of 16w LED lamps, Side: 16 pcs of 16w LED lamps, 1200 Lux illumination
- Air Purification: Dual filtering structure with primary M pattern nonwoven filter bags (captures granules >10μm) and ceiling filter (captures granules >5μm), achieving 98% air cleanliness
Model Specifications
| Model | External Size (m) | Internal Size (m³) | Air Flow (m³/h) | Air Speed (m/s) | Power (kw) | Vehicle Suited |
|---|---|---|---|---|---|---|
| WW0900 | 7 × 5.45 × 3.35 | 6.9 × 3.9 × 2.65 | 25,000 | 0.3-0.5 | 15 | Saloon Car, Jeep |

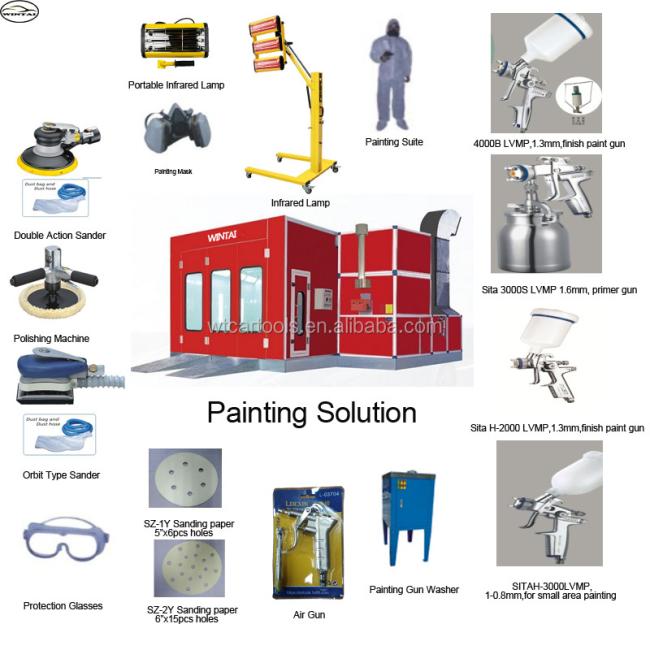

Product Image
