130 Bar Touch Free Car Wash Machine Top-Performing Automatic Car Wash Equipment Output Power 1500W For Optimal Cleaning Brushless Car Wash Equipment
Price:
$26,800.00/sets >=1 sets
MOQ:
1
Delivery Time:
25
Brand:
WinTai
Product Description
130 Bar Touch Free Car Wash Machine - Top-Performing Automatic Car Wash Equipment
Automatic Car Wash Equipment System
This headache-free machine is designed to enhance your business operations. With minimal maintenance requirements and high-quality components, this system delivers reliable performance. Total weight: 3.0 tons, volume: 11 cubic meters.
Optional Features
Waste water recycling system: saves 85% water
Self-service payment system
Colorful lights system
Washing Modes
Fine Mode (5 minutes/car):
- Start
- Chassis/wheel rim flushing
- Colorful high foam detergent spraying
- High pressure car body flushing
- Shampoo spraying
- High pressure car body flushing
- Wax spraying

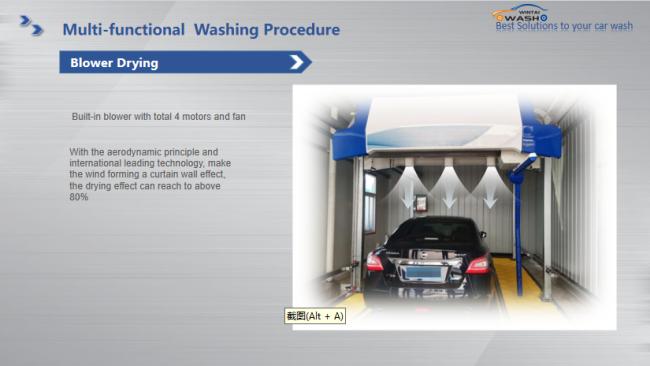

- Drying
- End
Fast Mode (2 minutes/car):
- Start
- Chassis/wheel rim flushing
- Colorful high foam detergent spraying
- High pressure car body flushing
- Drying
- End
Technical Specifications
| Item | Parameters | Function | Remark |
|---|---|---|---|
| Machine Size (L*W*H) | 3670mm*1330mm*1300mm | Self-parking and detecting system | √ |
| Pump Size (L*W*H) | 1280mm*740mm*600mm | Digital anti-collision system | √ |
| Chemical station size (L*W*H) | 1160mm*470mm*1350mm | All degree rotary high pressure flushing | √ |
| Max Vehicle Suitable | 6000*2500*2080mm | Chassis flushing | √ |

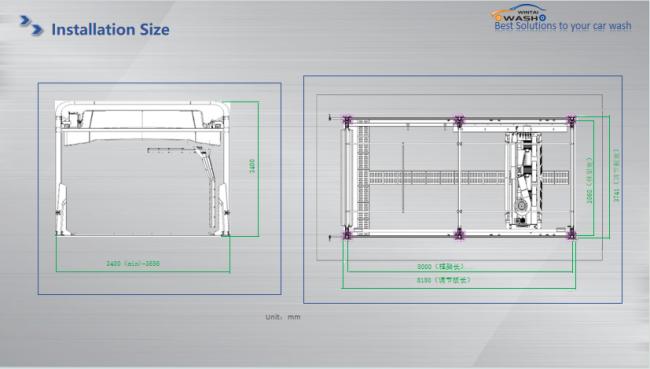

| Installation (L)-Frame Length | 7500mm~8000mm | Detergent spraying | √ |
| Installation (W) | 3350mm~3686mm | Colorful/high foam detergent spraying | √ |
| Installation (H) | 3300mm-3400mm | Wax spraying system | √ |
| Total Weight/volume | ≥3300kgs/≥8.5m³ | Built-in automatic drying system | √ |
| Power Requirement | 380V/25KW or other voltage | LED indication light guide system | √ |
| Air Switch | 100A | Operation permission setting function | √ |
| Total Power | 13KW/24.5KW | Self-service payment system | √ |
| Water Pump Motor Power | 18.5KW/pressure 100Bar, 100-100 Bar Adjustable, Simens | Voice Prompts function | √ |
| Fan Motor Power | 5.5KW/set x4sets | Car washing counting function | √ |
| Horizontal Motor Power | 0.55KW asynchronous frequency conversion speed regulation | Antifreeze system | √ |
| Cross Motor Power | 1KW digital servo motor | Oil-free system | √ |
| Rotation motor Power | 1KW digital servo motor | Equal pressure anti-blocking nozzle | √ |
| Chemical Proportion Motor Power | 0.37KW | Safe alarm system | √ |
| Central Processing unit PLC | Industrial intelligent digital control system | Automatic Standby function | √ |
| Drive system | variable frequency speed control+digital servo driver | ||
| Inspection system | Intelligent three-dimensional detection system | ||
| Running speed | 27 seconds/360 degree one circle | Self-service payment system | . |
| Water consumption | 65-200L/car | Colorful Lights | . |
| Electricity consumption | 0.4-1KW.H/car | Water Recycle System | . |
√ Standard | . Optional
Optional: Sewage Purification and Recycling System
Optional: Self-service Payment System
