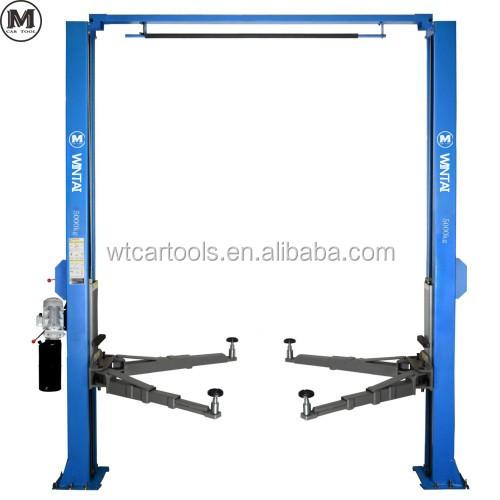

5000KGS 380v 2 Post Car Hoist Double Cylinder Hydraulic For SUV Minibus
Price:
$1,700.00/sets 1-9 sets
MOQ:
1
Delivery Time:
15
Brand:
WINTAI
Product Description
110v 220v 240v 380v Optional Clear Floor 2 Post Car Hoist for SUV Minibus 5000KGS
Product Description
Product Application
5000KGS high quality clear floor 2 post car hoist for SUV minibus is widely used in garage, auto maintenance shop
Main Features
Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity.

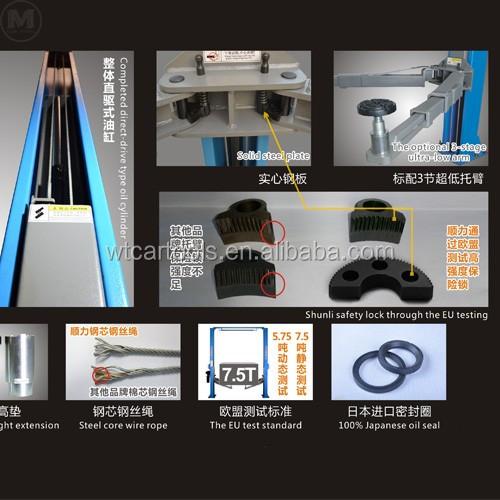

Japanese oil sealing elements, overload protection, international brand oil pipe.

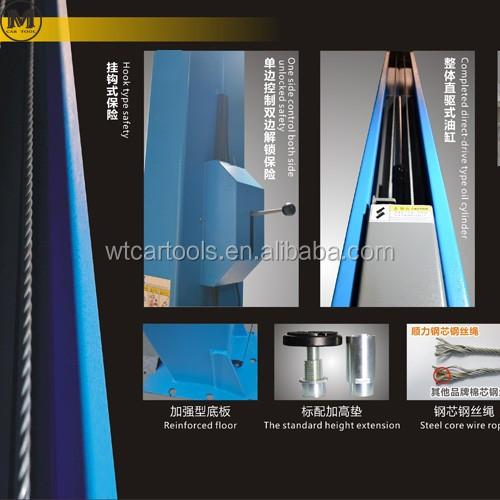

Direct driven by twin cylinders with safety steel wire as synchronization.
Polymer wear-resistance slider
Single side control both sides unlock safety, arm locks with tooth type ratchet, multi-safety device, more reliable.
Gantry type, no obstruction on the floor.
Roof protection safety device, automatic arm lock by built in ratchet tooth.
Shot blasting and high temperature baking powder coated surface finish.
Pass CE 7.5T static test and 5.7T dynamic test.
Japanese oil sealing elements, overload protection, international brand oil pipe.
Direct driven by twin cylinders with safety steel wire as synchronization.
Polymer wear-resistance slider
Single side control both sides unlock safety, arm locks with tooth type ratchet, multi-safety device, more reliable.
Gantry type, no obstruction on the floor.
Roof protection safety device, automatic arm lock by built in ratchet tooth.
Shot blasting and high temperature baking powder coated surface finish.
Pass CE 7.5T static test and 5.7T dynamic test.
Parameter:
| Model | 250L |
| Lifting Capacity | 5.0T |
| Min Height | 85mm |
| Lifting Height | 1850mm |
| Rise Time | 50s |
| Descending Time | 30s |
| Motor Power | 2.2KW |
| Voltage | 220V/380V |
| Total Height | 3900mm |
| Inner Width | 3000mm |
| Total Width | 3560mm |
Details
Related Products

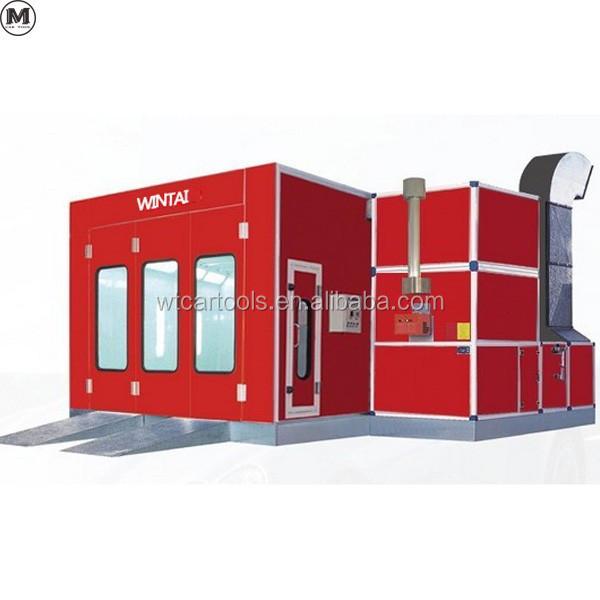

Spray Booth
91.8% Response Rate

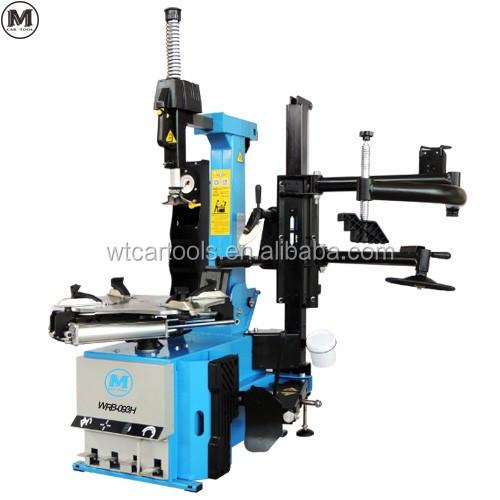

Automatic Tire Changer
