2850mm Width Between Columns CE Approved Clear Floor Gantry Hoist for 4200kg Car Lift
Price:
$1,299.00/sets >=5 sets
MOQ:
5 sets
Delivery Time:
Negotiable
Brand:
wintai
Product Description
Product Overview

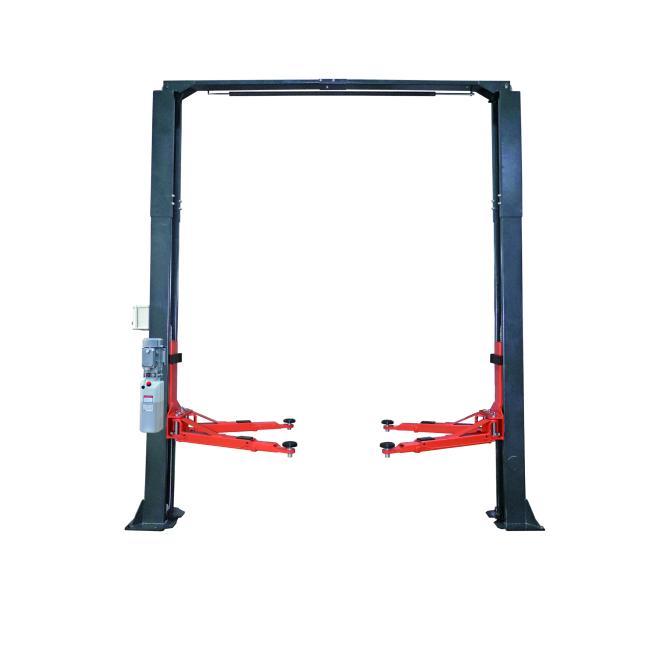

CE approved clear floor two post car lift gantry hoist 4200kgs
CE approval. 4,200Kg (9,300LBS.) lifting capacity. Dual-point lock release by manual and 24V low voltage operation. Durable chain drive cylinder in each column carries with anti-surge valves. Standard with 4 two-stage lifting arms. Screw-up rubber pads with min height 95mm (3 3/4”).
Standard with curtain inside column and foot guard. Standard with high limit switch. 1920mm (75 9/16”) lifting height suitable for various operators. Overhead safety protection device. Automatic arms restraints. Professional powder coating.
FEATURES AT A GLANCE
1. The adapter is ultra-thin design, the minimum height from the ground is 95mm(3 3/4”), which is more suitable for the maintenance and lifting work of low-chassis vehicles. 2. The maximum height is 3835mm(151”), and the effective height is 3700mm(145 11/16”), which is more suitable for the lifting of vehicles with high roof. 3. The inner pulley of the column is installed on the side of the oil cylinder. Even if the retaining ring falls off, the oil cylinder is only 10mm(3/8”) from the shaft end, which can effectively prevent the pulley from coming out. 4. The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam. 5. Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can ensure strong adhesion, bright color and beautiful.
Right elevation
Left elevation

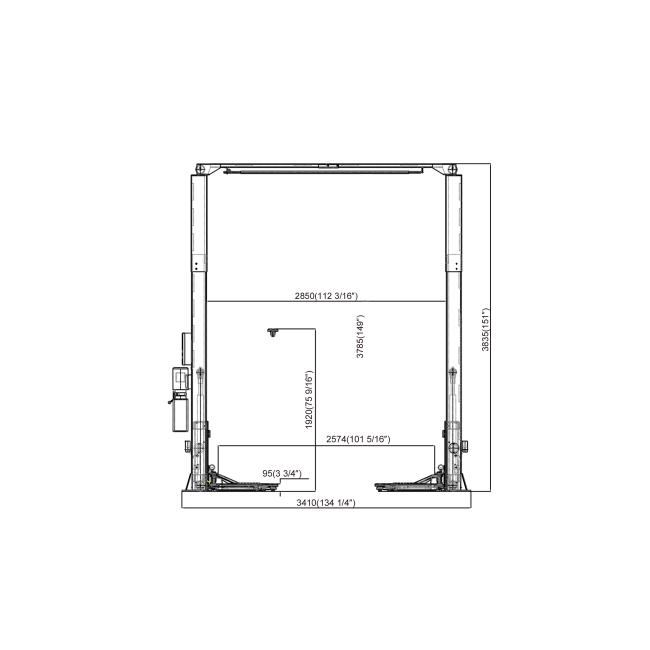

Front elevation
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | lifting capacity | 4,200kgs (9,300LBS) |
2 | lifting time | ≤55S |
3 | lifting height | 1920mm (75 9/16”) |
4 | minimum height | 95mm (3 3 /4”) |
5 | total height | 3835mm (151”) |
6 | Width Between Columns | 2850mm (112 1/4”) |
7 | Total Width | 3410mm (134 1/4”) |
8 | Gross Weight | 652kgs (1,437LBS) |
PRODUCT CONFIGURATION

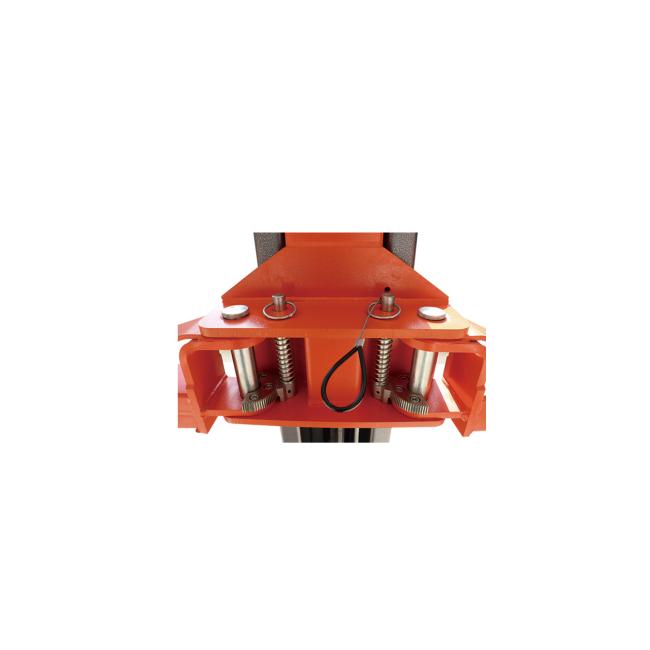

dual point lock release
extension adapter
optional 3-step arms
