120 Bar Fully Automatic 4 Air Dryeres Car Wash Water Recycling System 360 Touch Free Car Wash 24-hour Service Automatic Car Washing Robot
Price:
To be discussed
MOQ:
1
Delivery Time:
15-25days
Brand:
WINTAI
Product Description
FS360 Fully Automatic Car Wash System
Product Overview
This 120-bar fully automatic car wash system features 4 air dryers and water recycling capabilities, providing 24-hour service with 360-degree touch-free cleaning. The intelligent automatic car washing robot is designed for hassle-free operation and business optimization.
Special Feature: This headache-free machine enhances your business with minimal maintenance requirements. We prioritize component quality throughout the system, which has a total weight of 2.8 tons and occupies 8 cubic meters.
Design Features
- Streamlined Design: Beautiful shape with modern, simple aesthetics that combine mechanical excellence with practical functionality
- Stable Structure: Smooth overall construction with reasonable walking trolley design ensuring stable and safe machine operation
- Quality Materials: Exquisite material selection balancing firmness and lightness for simplicity and durability
360° Rotating Arm Technology
- CAE Optimized Design: Computer-aided simulation ensures proper nozzle placement and angle to prevent water hedging and maintain cleaning effectiveness
- Intelligent Operation: Smart distance calculation with safety and collision prevention features, providing equalized pressure, consistent distance, and uniform speed washing
- Complete Cleaning Cycle: High-pressure water pre-wash, shampoo application, wax coating with 360-degree coverage, and final drying
Technical Specifications
| Product Name/Model | FS360 Intelligent Version |
|---|---|
| Three Phase Electricity/Overall Power | 380V/38Kw |
| Power Requirements | 380V/22Kw/50Hz |

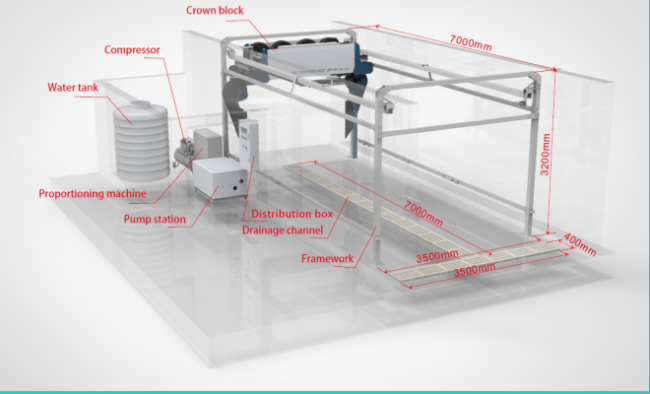

| Installation Requirements | 7000×3800×3200 mm |
| Maximum Car Wash Size | 5600×2500×2050 mm |
| Installation Costs | Free Installation Guidance |
| Hanging Rail Length | 7000 mm |
| Overall Weight/Volume | 2100 kg / 12 m³ |
| Central Processing Unit | Embedded Central Processing Unit Industrial Control |
| 360° Rotary Flushing | 304 Stainless Steel Rotating Arm |
| Main Water Pump Motor/Power | 380V/15kw |
| Fan Motor/Power | 5.5kw×4 |
| High Pressure Flushing Pressure | 60-100 kg |
| Rinse Cycle Time | 28 Seconds |
| Car Wash Time | Quick Washing: 2 min / Fine Washing: 5 min |
| Liquid Consumption | Metering Pump / 20-50 ml |
| Power Consumption | 0.3-0.8 kWh per wash |
| Water Consumption | 80-150 L per wash |
