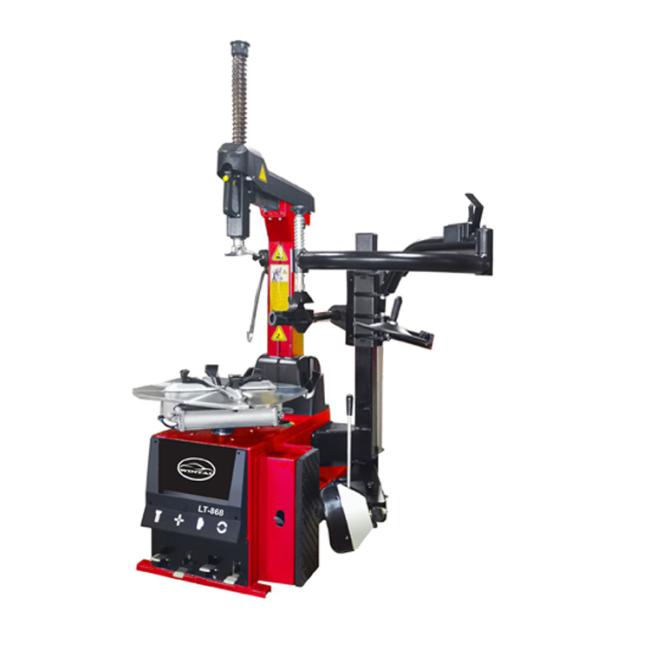

26 Inch Large Auto Tire Changer Enhanced Auxiliary Arm Car Tyre Changer Machine Automatic Positioning Function Automotive Tire Machine
FEATURE
Standard equipped with RA390 assist arm which adopted tire
pressing block for the rim centering,easy and convenient operation
Double bending column,5mm steel plate,assure high intensity.
26nich turntable ,suitable for mounting/demounting more larger and wider tires
The internal structure is strengthened ,and the machine is more stable
Pneumatically operated tilting column,automatic positioning,oneumatic locking
Assist arm installation holes have be kept in advance,
convenient to add an assit arm at any time.
Bead breaker arm equipped with 200mm cylinder,can be adjustable provide
more bead breaker force suitable for various tyres and run-flat tyres
TECHNICAL DATA
| Power supply | 110V/220V/380V 50/60HZ |
| Motor power | 0.75KW/1.1KW |
| Operating pressure | 0.8-1MPa |
| Outside clamping | 11-24" |
| Inside clamping | 12-26" |
| Max.wheel diameter | 41"/1100mm |
| Max.wheel width | 13"/330mm |
| Operating pressure | 8-10bar |
| Bead break force | 2500Kgf |
| Noise | less than 70db |
| Net/Cross weight | 300/ 320kgs |
| Packing size | 1000x800x950mm 1280x380x320mm |
Alloy claw and 75 cylinder
Wear-resistantplate forturntable
Bead breaker arm can be adjustable
Reinforced right side helparm
