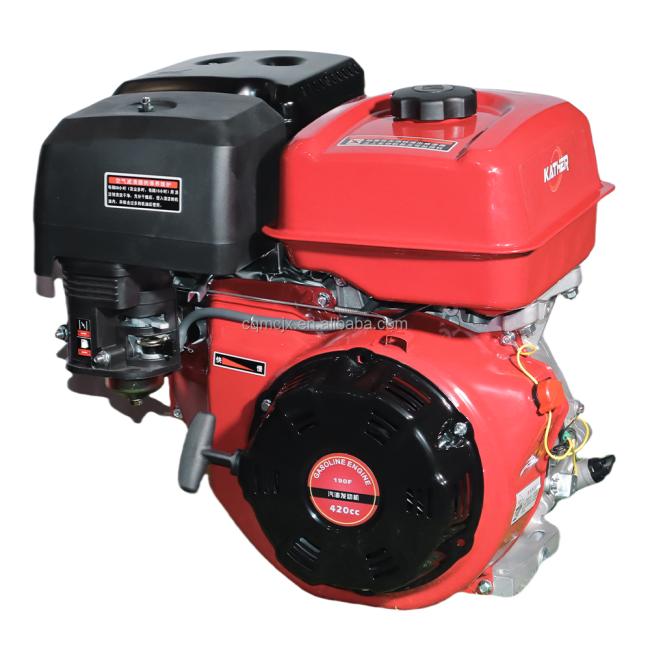

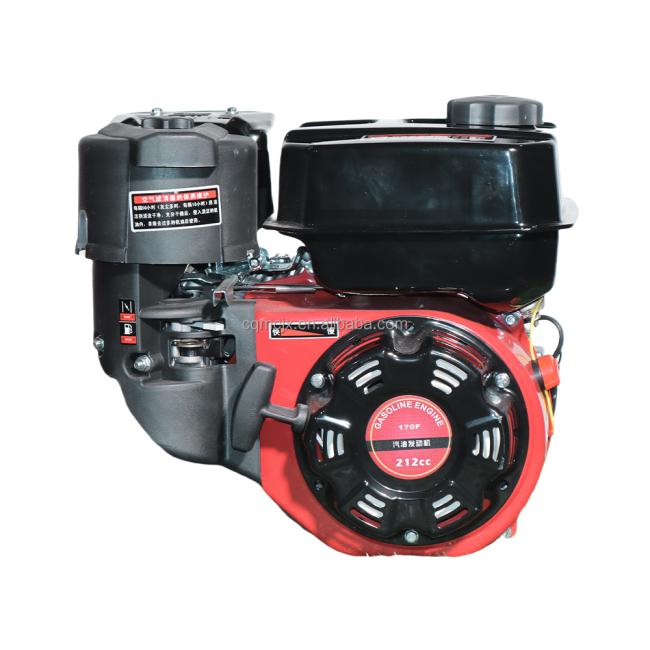

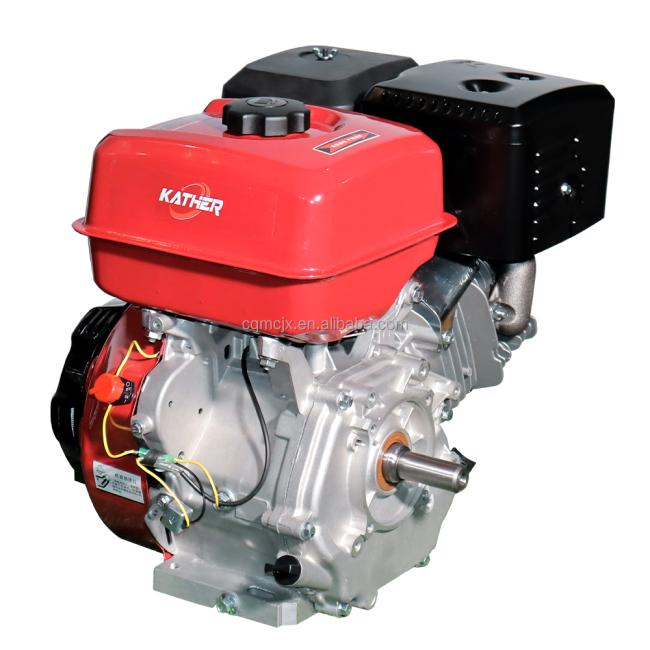

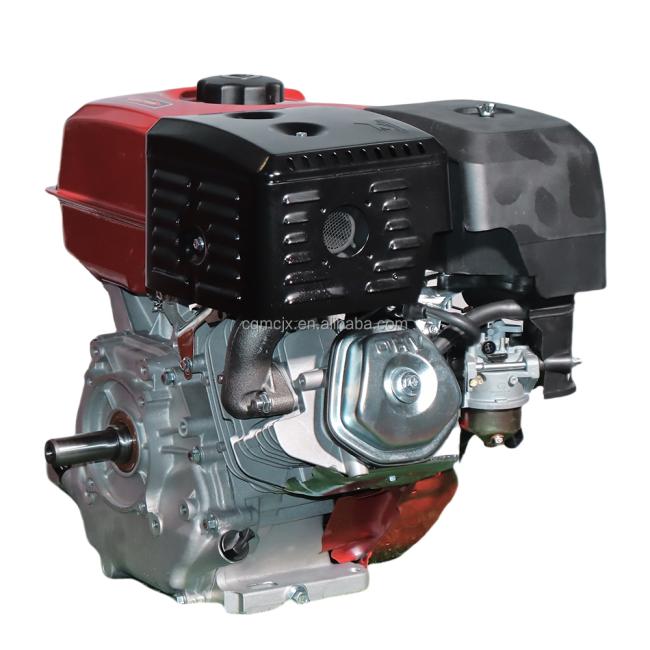

4kw/6hp Air-cooled 4-stroke 170f 190f Gasoline Engine 212cc 420cc Single Cylinder
Price:
$49.99 - $112.99/units
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
KATHER
Product Description
Product name | MCG170F-A Gasoline Engine | MCG190F Gasoline Engine |
Bore x Stroke | 70x55mm | 90*66mm |
Displacement | 212CC | 420cc |
Compression Ratio | 8.5 : 1 | 8.3:1 |
Max. Power | 4.3kW/3600(r/min) | 8.5kW/3600(r/min) |
Rated Power | 4.0kW/3600(r/min) | 8.0kW/3600(r/min) |
Mini.Idle Revolutions | 1440±100(r/min) | 1440±100(r/min) |
Max. Torque/Revolutions | 9.5Nm/2500(r/min) | 22Nm/2500(r/min) |
Starting System | Recoil Starter | Recoil Starter |
Fuel consumption | ≤395g/kWh | ≤374g/kWh |
Lubrication consumption | ≤6g/kW-h | ≤6g/kWh |
Fuel tank capacity | 3.6L | 6.5L |
Lubrication capacity | 0.6L | 1.1L |
FuelType | 90# and higher | 90# and higher |
LubricationType | 15W-40 | 15W-40 |
Packing size | 38*35*38cm | 50x45*50cm |
Packaging weight | 18kg | 35kg |
Engine:
1. The engine is composed of two major mechanisms, the crank linkage and the gas distribution mechanism, and five major systems, such as cooling, lubrication, ignition, fuel supply, and starting system. The working principle of the engine is intake-compression-injection-combustion-expansion-work-exhaust. Most modern automobiles use a reciprocating piston internal combustion engine, which burns fuel inside the engine cylinders and converts the resulting heat energy into mechanical energy. Engines play a vital role in modern life and industry, and their efficient operation directly affects the performance and efficiency of mechanical equipment. Different types of engines have advantages and disadvantages according to their design and purpose, and the choice of the right type of engine depends on the specific needs of the application. 2. Engines have many different application scenarios, depending largely on their type and design. Engines are used in a wide range of automobiles, trucks, motorcycles, and other land vehicles to provide power to drive the vehicle. Engines are used to propel ships, including commercial vessels, yachts, fishing boats, and more.
Q1:Are you a factory or a trading company?
A:We are a factory.
Q2:What is the main products of your factory?
A:We are a factory.
Q3:Where is your factory located?
A:Agricultural railcar,Tiller&Cultivator,Generator,Water pump,Engine,Lawn Mower,Snow Blower,Rotary Tiller,Chainsaw,Garden Machinery,etc.
Q4:Do you support customization?What's the MOQ?
A:Of course, We have 15 years of production customization experience in OEM/ODM. 1 set
Q5:How can i order and make payment?
A:Once clear your requirement which product is ideal for you.We will send proformainvoice to you.You can pay via Trade Assurance,T/TBank,WesernUnion,Credit Card or Paypal as you like.
Q6:What are your payment terms?
A:T/T 30% deposit, 70% balance to be paid when the goods are ready. If you have special payment needs, please discuss with our sales staff first.
Q7:How long is your warranty?
A:1 year or 1000 hours warranty whichever comes first except the wearing and tearing parts.We suggest customers buy some wearing and tearing parts in each order.
