24vdc Hydraulic Power Unit 1.2KW Lightweight Hydraulic Pump Unit For Pallet Jack Use
-
Hydraulic Station 24V DC Control 1.2 KW 2200PSI Lightweight Hydraulic Pump For Pallet Jack Use
1. Production details: This hydraulic power unit is a single-acting operation one, which has a 8 quart plastic tank and designed with a 24VDC motor that can provide strong power for Pallet Jack use.
2. Easy to use: This hydraulic power unit has been fully assembled in advance. and wiring is simple but reliable, and additional SAE#6 connectors included in the package.
3. Unique design: This hydraulic power unit adopts lightweight design, which is more environmentally friendly and energy-efficiently. and has a higher stability, greatly improve the service life.
4. Rapid response: This hydraulic power unit has a powerful motor and pump, which is quick to start and quick to output oil, without latency time.

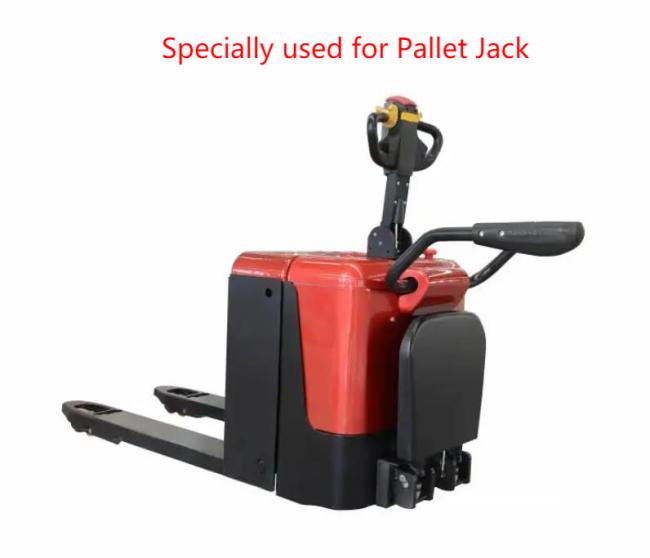

5. Wide application: This power unit is widely used in Pallet Jack, with high working efficiency.
- Specification:
| Description | Specification | Optional | |
| 1 | Application Scenario | Pallet Jack | — |
| 2 | Operating Handle | Yes | — |
| Wireless Romote Control | No | Optional | |
| 3 | Voltage/DC or AC | 24VDC | DC:24V, 48V, 60V, 72V; |
| Moter Power | 1.2kW | 0.75kW ~ 4.0kW, Customizable | |
| 4 | Blocks | 1 | — |
| Operation Mode | single-Acting | — | |
| 5 | Nominal Flow | 0.26 ~ 5.5GPM | |
| System Pressure | 2200psi | Adjustable | |
| 6 | Tank Capacity | 8 Quart | 0.75 ~ 25Quart, Customizable |
| Tank Material | Plastic | Metal | |
| Tank Shape | Rectangular | Cylindrical | |
| Mount Position | Vertical mount | Horizontal mount | |
| 7 | Connector Size | SAE #6 | — |
| Connector Spare Parts | 2 | — |
- Application:
![]()
![]()
