Automatic Plastic Woven Bags Hot And Cold Integrated Sewing Machine
Automatic Plastic Woven Bags Hot And Cold Integrated Sewing Machine, Smokeless Knife Up And Down
Features:
1.Auto pneumatic fabric roll loading, static elimination device.
2.EPC for woven bag and liner bag.
3.Printing mark tracking, bag length contrlolled by servo system.
4.Hot cutting, auto mouth open.
5.Cold cutting, Servo system control (Optional)
6.Auto alarm for serving thread break, abnormal bag sending and folding.
7.Liner Bag automatic bottom sealing, cutting and inserting.
8.PLC centralized control, Touch screen display parameter setting and record.
9.High quality imported/ domestic sewing machine.
10.Inverter control speed, Auto bag counting, folding, transportation.
Technical Parameters:
| Model | UW-700 |
| Max.Width of cutting bag | 700mm |
| Diameter of unwinding cloth | ≤φ1200mm |
| Length of cutting bag | 500-1300mm |
| Production capacity | 15-25pcs/min |
| Stitch Range | Double thread, chain |
| Length of stitch | 5-14mm |
| Fold wigth of bag bottom | 20-30mm |
| Max. dia. of unwinding | 1200mm |
| Power | 18KW |

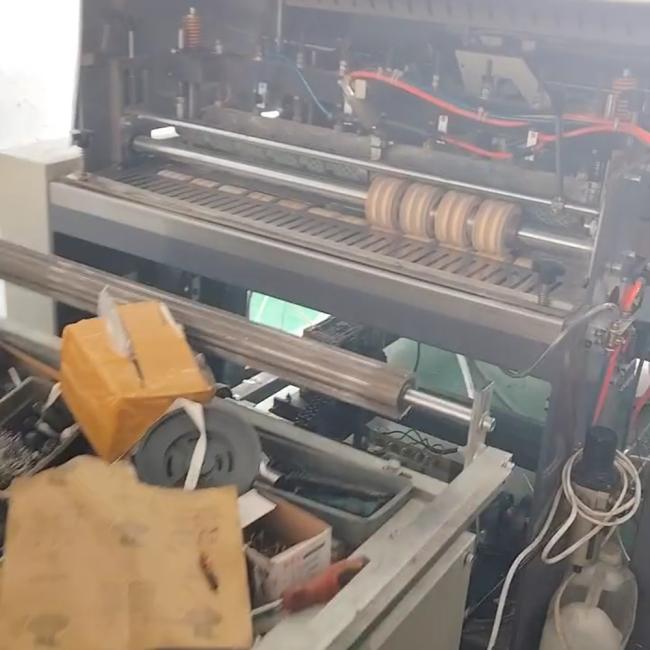

Machine Photo:
FAQ:
1. Are you manufacturer or trading company?
We are a specialized manufacturer.
2. Is your machine automatic or manual ?
Automatic.
3. How do you control the quality?
Professional QC team comply with TQM insure you the quality. Each step is in compliance to the standards. At the same time, we will take photos or shoot video for you.
4. What is the machine warranty?
One Year.
5. How long is the delivery time?
It's about 15-30 days.
6. Do you provide customized?
Sure, we can design the equipment according to the data of the structural section you provide. We are professional sheet metal forming machine designer and manufacturer.
