4mm PVDF Anti-Static Aluminum Composite Panel with UV Radiation Protection and More than 5 Years Warranty
PVDF aluminium composite panel is a type of architectural cladding material made from a combination of two thin and rigid aluminum sheets bonded to a non-aluminum core. The panels are coated with a layer of PVDF (Polyvinylidene Fluoride) paint, which provides exceptional durability. Also it boasts outstanding weather resistance, capable of withstanding solar radiation and various weather conditions as well as environments affected by industrial pollution.
Durability
The PVDF aluminum composite panel is known for its exceptional durability, which makes the panel resistant to scratches, dents, and other types of damage. It maintains its appearance for a long time without fading or corroding, making it ideal for long-lasting projects.
Weather resistance
PVDF aluminum composite panels have strong resistance to environmental and climate conditions. Its resistance to rain, wind, and snow makes it ideal for both indoor and outdoor use. It also resists UV radiation, which prevents fading and discoloration over time.
Chemical resistance
PVDF aluminum composite panel is also resistant to a wide range of chemicals, making it suitable for use in industrial and chemical environments. This makes the panel ideal for structures that are susceptible to chemical spills, such as manufacturing plants or laboratories.
Fireproof and easy to install
PVDF is strong fire-resistant, making it suitable for use in high-risk structures such as hospitals, schools, and public buildings. The panels are lightweight and easy to cut, making installation simple and fast. They can also be easily affixed to walls or other surfaces using adhesive or mechanical fixing systems.
| Aluminum Skin Thickness: | 0.03mm-0.50mm |
| Total Panel Thickness: | 2.5mm-6mm |
| Width: | 1000mm, 1220mm (regular), 1250mm, 1300mm, 1500mm, 1550mm, 1575mm (maximum) |
| Length: | Up to 5800mm |
| Standard Size: | 1220mm (width)*2440mm (length) |

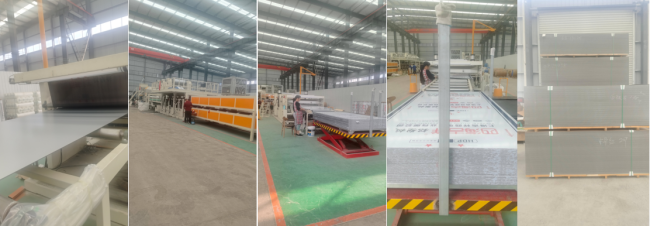

| Production Capability: | 100,000sqm / month |
| Inner core: | Normal non toxic polyethylene, one side unbroken polyethylene, two side unbroken polyethylene, virgin LDPE, B1 non-combustible mineral filled core, A2 non-combustible mineral filled core |

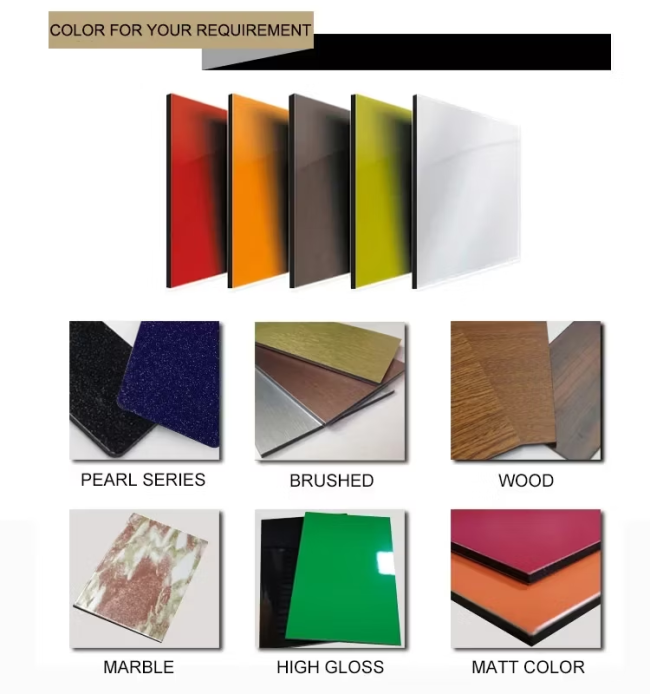

Non-standard sizes and special colors are available depending on customers' offers.

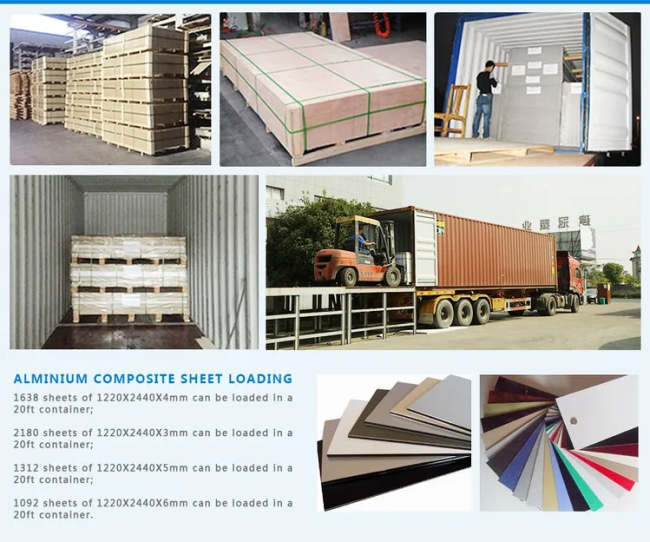

- The Aluminum Composite Panel is packaged in wooden crates or pallets.
- Each panel is protected with a plastic film to prevent scratches and damage during transportation.
- The panels are stacked and secured with straps to ensure they stay in place during shipping.
- The Aluminum Composite Panel can be shipped by sea, air, or land.
- Our team will work with you to determine the best shipping method based on your location and timeline.
- We will provide you with a tracking number once the product has been shipped so you can monitor the delivery status.
- Please inspect the product upon delivery and contact us immediately if there are any issues.
![]()
