A2 FR Corrugated Aluminum Composite Panel For Exterior Wall Decoration Corrosion - Resistant
Price:
negotiable DOLLARS +square meter
MOQ:
300meter square
Delivery Time:
7-10days
Brand:
Alushang
Product Description
A2 FR Corrugated Aluminum Composite Panel for Exterior Wall Decoration
A2 Fire-Safety Classification ensures building protection with aluminum's corrosion-resistant properties.
Product Description
A2-grade aluminum corrugated sheets stand out in construction and industrial fields due to their high-quality materials and unique structure. Made from AA1100H24 and AA3003H24 aluminum alloy thin plates, they feature a corrugated structure formed through rolling with customizable dimensions.
Key Features
- Lightweight: Weighing around three-tenths as heavy as steel, they significantly decrease building loads while easing transportation and installation.
- Aesthetic Appeal: Available in various colors with a corrugated pattern that adds dynamic visual interest through light and shadow interaction.
- Corrosion Resistance: Self-healing oxide film provides protection against harsh conditions, with service life extending over 60 years with proper treatment.
- Mechanical Strength: Corrugated structure distributes stress evenly, offering good seismic performance and durability under external forces.
Product Dimensions
| Dimension | Available Size |
|---|---|
| Width | 1220mm, 1250mm, 1500mm |
| Length | Upon request, preferably < 5800mm |
| Panel thickness | 3mm, 4mm, 6mm |
| Aluminum thickness | Recommend 0.50mm, 0.60mm |
| Others | Accept custom sizes |
Comparative Table of Metal Exterior Materials
| Item | Alu. Composite Panel | Alu. Solid Panel | Alu. Corrugated Composite Panel |
|---|---|---|---|
| Material Skin | 0.50mm | 3.00mm | 0.50mm / 0.60mm |
| Thickness | 4mm | 3mm | 4mm, 6mm |
| Weight | 5.5Kg/㎡ | 8.1Kg/㎡ | 3.7Kg/㎡, 4.3Kg/㎡ |
| Light Weight | Good | Normal | Excellent |
| FR Function | Normal | Good | Good |

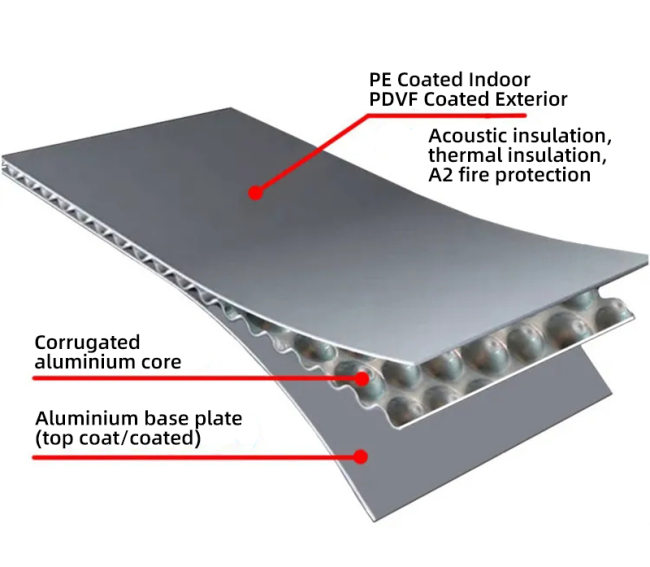

Structure

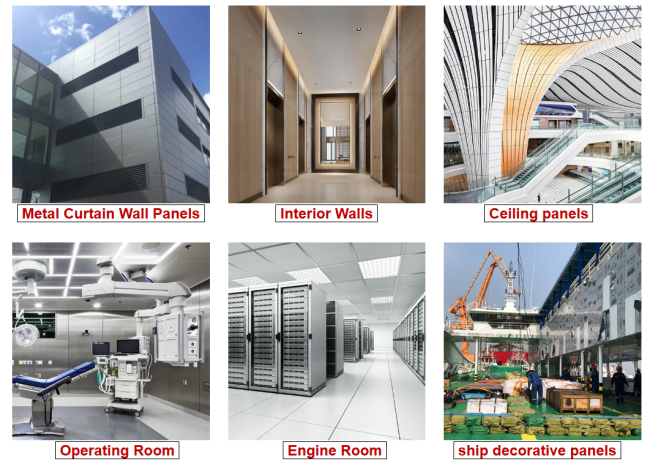

Applications
Widely used in construction for roofing and exterior wall cladding, industrial facilities for warehouses and factories, and transportation for vehicle bodies and interiors. Their lightweight, durable, and fire-resistant properties make them ideal for diverse applications.
Packaging & Shipping
Each panel is carefully wrapped in protective film and secured in specially designed wooden crates with shock-reducing materials. Multiple shipping options available to meet project requirements.
Thank you for your interest. We look forward to our cooperation!
