Ultra-Durable PVDF ACP: Superior Fade Resistance for Sunny Climates
Price:
negotiable
MOQ:
300meter square
Delivery Time:
15-20days
Brand:
Alushang
Product Description
Ultra-Durable PVDF ACP: Superior Fade Resistance for Sunny Climates
PVDF Aluminum Composite Panel (ACP): The Premium Building Facade Material
A PVDF Aluminum Composite Panel is a high-end sandwich panel used for modern building exteriors and signage. It consists of two thin aluminum sheets bonded to a plastic core, with the exterior coated in a super-durable PVDF (Polyvinylidene Fluoride) paint.

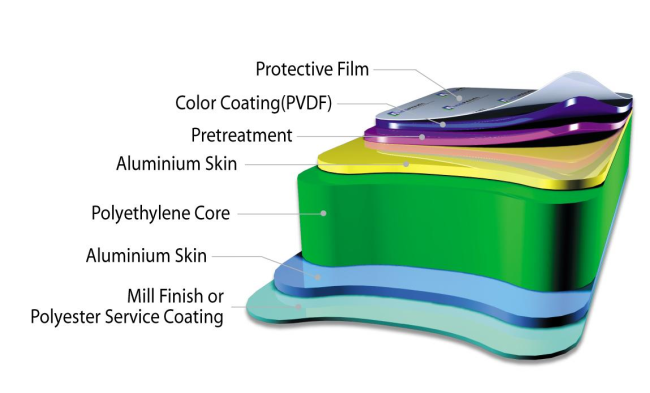

The "Sandwich" Construction Breakdown
| Layer | What It Is | Why It Matters |
|---|---|---|
| Top Coat | 70% PVDF resin paint (e.g., Kynar® 500) | Weather Shield: Resists sun, rain, pollution, and chemicals for decades without fading |
| Front Skin | Treated aluminum sheet (0.2-0.5 mm) | Provides structural surface for the coating and a metallic look |
| Core | Polyethylene (PE) or Fire-Retardant (FR) mineral-filled material | Critical: Standard PE is flammable; FR core is mandatory for safe building cladding |
| Back Skin | Aluminum sheet (often coated) | Completes the panel, provides insulation and moisture barrier |
Why PVDF Coating is Essential
PVDF isn't the panel itself—it's the premium paint system on the surface. Think of it as the protective armor that provides:
- Extreme UV resistance: Colors stay vibrant for 15-30 years
- Self-cleaning properties: Rain washes away dirt and grime
- Chemical resistance: Withstands acid rain, salt spray, and pollution
Without PVDF coating, the panel would fade and degrade much faster in outdoor environments.
Key Benefits at a Glance
Durability - Lasts decades with minimal maintenance
Design Flexibility - Available in any color, finish (metallic, matte), and shape
Lightweight - Reduces structural support costs
Cost-Effective - Cheaper than solid metal or stone cladding
Specifications and Sizes
| Aluminum Sheet Thickness | 0.07mm-0.45mm |
| Overall Panel Thickness | 3mm-7mm |
| Width Specifications | 950mm, 1220mm (regular); 1260mm, 1350mm; 1450mm, 1520mm, 1600mm (max) |
| Length Limit | Up to 5900mm |
| Standard Dimension | 1220mm (width) * 2440mm (length) |
| Monthly Production | 90,000 square meters |
| Core Types | (Eco-friendly polyethylene, single-sided unbroken PE, double-sided unbroken PE, original LDPE); B1 flame-retardant mineral core; A2 non-flammable mineral core |
| Custom Options | Non-standard sizes and unique color schemes available based on customer requirements |

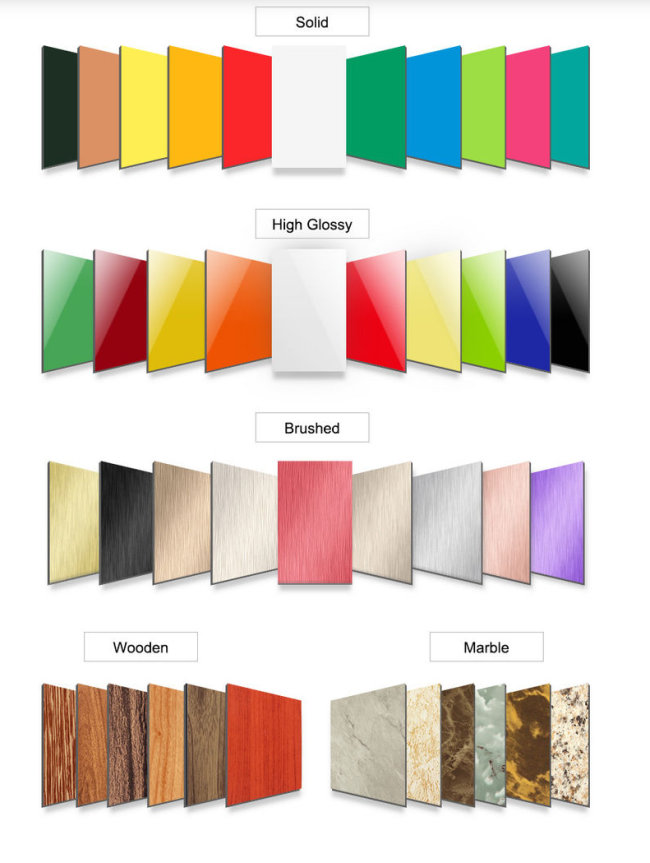

Our Main Related Products

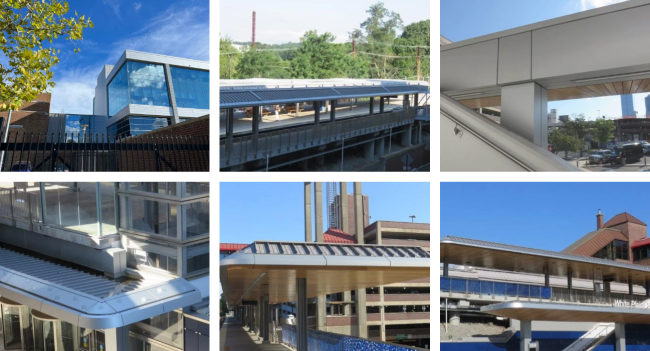

Common Applications
- Building Facades / Curtain Walls: The most common use, for both new construction and renovation
- Interior Cladding & Partitions: For modern, clean aesthetics in lobbies, airports, and offices
- Signage & Branding: For durable, lightweight signage and architectural lettering
- Column Covers & Canopies
- Transportation Hubs: Airports, bus stations (for durability and easy maintenance)
Packaging and Shipping
Packaging Measures: Each PVDF aluminum composite panel starts with a layer of industrial-grade protective film, shielding against abrasions and moisture during transit. Next, they're packed into sturdy plywood crates, constructed to withstand heavy stacking and long-haul shipping. Each crate is marked with bold, easy-to-read product information for quick identification at delivery. To further stabilize the load, all voids are filled with flexible foam inserts that conform to the panels' shape, ensuring no shifting occurs—so panels arrive in perfect condition, requiring no pre-installation repairs.
Shipping: We offer diverse shipping options to meet your needs. For international orders, we collaborate with trusted carriers to ensure safe and timely delivery. Urgent orders? Our expedited service has you covered. Our team closely monitors every shipment, ensuring your panels reach you intact. If you have questions, our customer service is always here to help.
