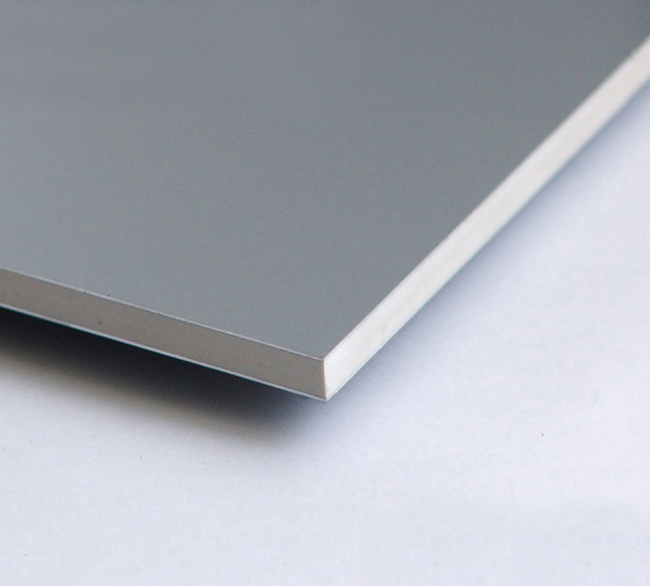

Fire Retardant B1 Class Aluminum Composite Panel PVDF Coating Exterior Wall Cladding Sheet
A heavy-duty, fire-resistant cladding solution specifically balanced for architectural safety and cost efficiency in Southeast Asian commercial projects.
Certified B1 Class Fire Performance: Formulated with a high-density, flame-retardant mineral core. Complies strictly with EN 13501-1 (Class B-s1, d0) and GB 8624 (Class B1), ensuring low smoke density and preventing rapid flame spread.
Architectural-Grade PVDF Finish: Coated with premium Fluorocarbon (PVDF) paint, providing extreme weather resistance against the intense UV, continuous humidity, and torrential rains of Malaysia and Vietnam. 15-20 years fade-free guarantee.
Structural Integrity for High-Rise Facades: Offered in heavy-duty 4mm thickness with robust aluminum skin (up to 0.50mm), engineered to deliver superior wind-load resistance and absolute flatness.
Honest Engineering Compliance: We provide real, reliable factory batch testing data. No over-promising on unverified ratings—just solid, proven B1 flame-retardant capabilities for compliant commercial building construction.
- Fire Rated Performance: Meets strict fire safety standards, suitable for high-rise buildings, commercial complexes and public facilities requiring fire protection.
- 70% PVDF Coating: High-purity PVDF content ensures superior weather resistance, UV resistance and color fastness, maintaining stable appearance for 20+ years.
- 3H Surface Hardness: Excellent scratch and impact resistance, reducing damage during transportation, installation and daily use.
- Lightweight & High-Strength: Easy to cut, process and install, saving labor and construction time.
- Versatile Aesthetics: Available in multiple colors, fitting various architectural styles for curtain walls and exterior cladding.
- Durable & Reliable: Anti-corrosion, anti-fading, environmental friendly and long service life, meeting international export quality standards.
| Technical Property | Specification Details | Compliance Standard |
| Standard Panel Size | 1220x2440mm (4x8 ft) / Custom lengths up to 6000mm | Architectural Grid Standard |
| Total Panel Thickness | 4.0mm / 5.0mm | High-rise Facade Gauge |
| Aluminum Skin Thickness | 0.30mm / 0.40mm / 0.50mm | Heavy-duty Wind Load |
| Core Material Type | Mineral-Filled Fire Retardant Core (FR-B1) | Non-toxic, Low Smoke Core |
| Fire Rating Classification | Class B-s1, d0 / Class B1 (Difficult to Flammability) | EN 13501-1 / GB 8624-2012 |
| Surface Finish Coating | PVDF Fluorocarbon (Double or Triple Layer) | Kynar 500 Resin Base |
| Outdoor Color Warranty | 15 - 20 Years | Defends against tropical weathering |

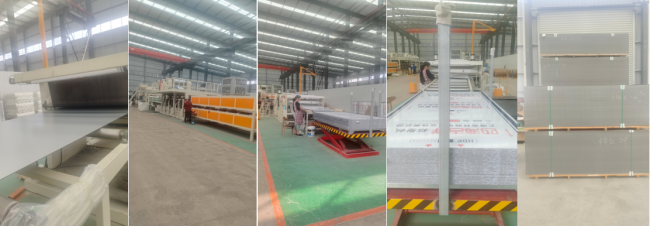

Experienced Fabrication and Strict Compliance:
At our workshop, 20 years of hands-on manufacturing expertise means we treat fire-retardant consistency as a safety-critical mission. Our technical team manually calibrates the core-lamination temperature profile and mineral mixing ratios to ensure that every single batch exhibits uniform density and flawless bonding strength. We strictly follow customer engineering blueprints and technical protocols, conducting rigid in-house checks on dimensional tolerance and peeling resistance before any container is loaded.

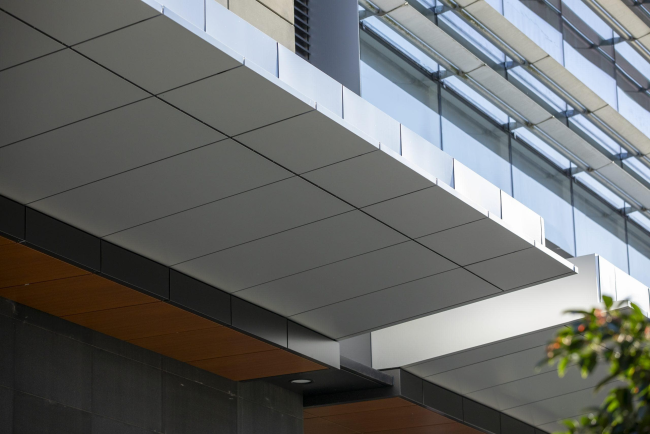

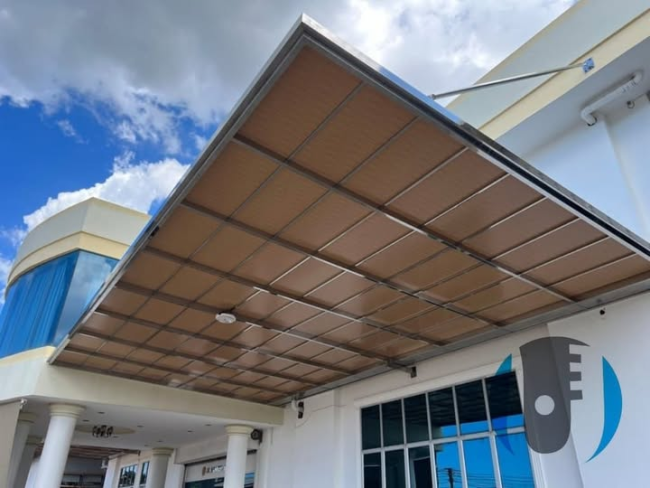

Our B1 Fire Retardant ACP is systematically engineered for commercial and public construction sectors where local building bylaws require verified fire-resistive materials:
High-Rise Commercial Facades & Office Towers
Shopping Malls & Retail Complex Exterior Claddings
Institutional Buildings: Schools, Exhibition Centers, and Corporate Headquarters
Public Infrastructure: Petrol Stations, Airport Terminal Spandrels, and Metro Station Entrances
- Panel installation and maintenance assistance
- Guidance on proper handling and storage
- Technical consultation for project-specific requirements
- Troubleshooting and issue resolution
- Training sessions for installers and contractors
Each panel is carefully wrapped in protective material and securely packed in sturdy cartons to prevent damage during transportation. Our experienced logistics team ensures timely and safe delivery.
