Residential And Commercial 395W Monocrystalline Silicon Panels
395W Monocrystalline Silicon Panels for and Reliability in Residential and Commercial
Product Description
The 182 P-type Monofacial Module is designed with a focus on reliability and performance, offering a power range of 395W to 410W. Its maximum efficiency of 21% ensures optimal energy output, even in challenging environments. The module features multi-busbar (MBB) half-cut cell technology, which enhances its resistance to shade and reduces the risk of hot spots. This series is constructed with an anodized aluminum alloy frame and a highly transparent tempered glass, providing robust durability against environmental factors such as sand, dust, salt mist, and ammonia. The use of high-efficiency PERC cells further increases the module's resistance to potential-induced degradation (PID), ensuring long-term performance stability.
| Electrical Performance Parameters |STC | |||||||||
| Model Type | 395D(HPM) 54(182) |
400D(HPM) 54(182) |
405DYHPM) 54(182) |
410D(HPM) 54(182) |
|||||
| Nominal Max.Power | Pmax(W) | 395 | 400 | 405 | 410 | ||||
| Max.Power Voltage | Vmp(V) | 30.75 | 30.95 | 31.15 | 31.35 | ||||
| Max.Power Current | Imp(A) | 12.85 | 12.93 | 13.01 | 13.09 | ||||
| OpenCircuit Voltage | Voc(V) | 36.77 | 36.97 | 37.17 | 37.37 | ||||
| Short Circuit Current | lsc(A) | 13.71 | 13.79 | 13.87 | 13.95 | ||||
| Module Efficiency | (%) | 20.23 | 20.48 | 20.74 | 21.00 | ||||
| Power Output Tolerance | (W) | 0~+5W | |||||||
| *STC:Iradiance 1000W/m²,Cell Temperature25℃,Air Mass AM1.5. *Power measurement tolerance ±3%. |
|||||||||
| ElectricalPerformance Parameters |NMOT | |||||||||
| Model Type | 395D(HPM) 54(182) |
400D(HPM) 54(182) |
405D(HPM) 54(182) |
410D(HPM) 54(182) |
|||||
| Nominal Max.Power | Pmax(W) | 290 | 295 | 300 | 305 | ||||
| Max.Power Voltage | Vmp(V) | 27.64 | 28.00 | 28.38 | 28.72 | ||||
| Max.Power Current | Imp(A) | 10.50 | 10.54 | 10.58 | 10.62 | ||||
| OpenCircuit Voltage | Voc(V) | 34.68 | 34.83 | 34.98 | 35.13 | ||||
| Short Circuit Current | lsc(A) | 10.94 | 11.07 | 11.19 | 11.24 | ||||
| ·NMOT:Irradiance 800W/m²,Cell Temperature 20℃,Wind Speed 1m/s. ·Power measurement tolerance ±3%. |
|||||||||
| Structure Performance | ||||||||
| Solar Cell Type | 182mm Mono-crystalline (Half Cell) | |||||||
| Solar Cel Arrangement | 108pcs(6×18) | |||||||

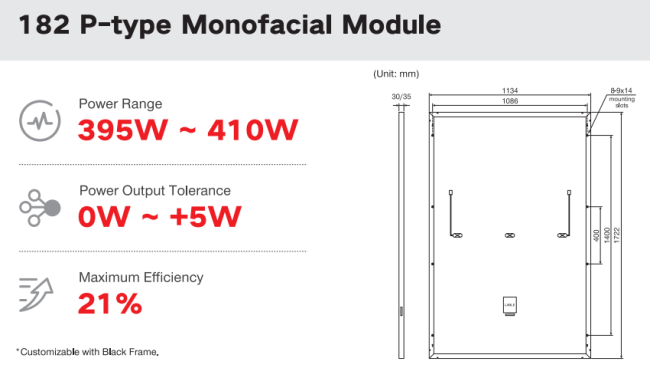

| Module Dimension | 1722×1134×35mm/30mm | |||||||
| Weight | 21.7kg(35mm)/20.6kg(30mm) | |||||||
| Front Glass | 3.2mm,highly transparent tempered glass with anti-reflective coating |
|||||||
| Back Sheet | White | |||||||
| Frame | Anodized Aluminum Alloy(White/Black) | |||||||
| Junction Box | IP68 rated | |||||||
| Diode Quantity | 3 pcs | |||||||
| Front side/Rear side | 5400pa/2400pa | |||||||
| Connector | MC4 Compatible | |||||||
| Per Pallet | 31pcs(35mm)/36pcs(30mm) | |||||||
| Per Container(40'HQ) | 806pcs(35mm)/936pcs(30mm) | |||||||
| Temperature Characteristics | ||||||||
| Nominal Module Operating Temperature | 44±2℃ | |||||||
| Temperature Coefficient (Isc) | +0.048% | |||||||
| Temperature Coefficient (Voc) | -0.26% | |||||||
| Temperature Coefficient (Pmax) | -0.34% | |||||||
| Maximum Parameters | ||||||||
| Working Temperature | -40~+85℃ | |||||||
| Maximum SystemVoltage | 1500V DC | |||||||
| Nominal Maximum Fuse Current | 25A | |||||||
Application
The 182 P-type Monofacial Module is ideal for large-scale solar projects, residential installations, and commercial applications where high efficiency and reliability are paramount. Its robust design and superior weather resistance make it well-suited for deployment in a variety of climates, including those with harsh conditions.
Shipping Methods:
Supports global air and sea shipping.
