415W Energy- Monocrystalline Silicon Panels for Ground-Mounted and Residential Solar Systems

Product Description:

The 182 N-TopCon Bifacial Module offers an impressive power range from 415W to 430W, with a power output tolerance of 0W to +5W. This module features a high maximum efficiency of 22.02%, making it an excellent choice for high-performance solar energy systems. The bifacial design allows for energy generation from both sides of the panel, significantly increasing overall energy yield, especially in installations with reflective surfaces.

Electrical Performance Parameters |STC
Model Type		415C(HBD) 54(182	420C(HBD) 54(182)	425C(HBD) 54(182)	430C(HBD) 54(182)
Nominal Max,Power	Pmax(W)	415	420	425	430
Max.Power Voltage	Vmp(V	31.18	31.42	31.65	31.88
Max.Power Current	Imp(A)	13.31	13.37	13.43	13.49
Open Circuit Voltage	VocV)	36.77	36.97	37.17	37.37
Short Circuit Current	lsc(A)	14.55	14.61	14.67	14.73
Module Efficiency	(%)	21.25	21.51	21.76	22.02
Power Output Tolerance	(W)		0-+5W
*STC:Iradiance 1000W/m², Cell Temperature 25℃,Air Mass AM1.5. ·Power measurement tolerance ±3%.
Electrical Performance Parameters |NMOT
Model Type		415C(HBD) 54(182)	420C(HBD) 54(182)	425C(HBD) 54(182)	430C(HBD) 54(182)
Nominal Max.Power	PmaxW)	311	315	319	323
Max.Power Voltage	VmpV)	29.41	29.61	29.82	30.02
Max.PowerCurrent	Imp(A)	10.58	10.64	10.70	10.76
Open Circuit Voltage	Voc(V)	34.30	34.49	34.68	34.87
Short Circuit Current	lsc(A)	11.80	11.85	11.90	11.95
*NMOT:Irradiance 800W/m²,Cell Temperature 20℃,Wind Speed 1m/s. 'Power measurement tolerance ±3%.
Structure Performance
Solar Cell Type		182mm N-TopCon Mono Cell(Half Cell)
Solar Cell Arrangement		108pcs(6×18)

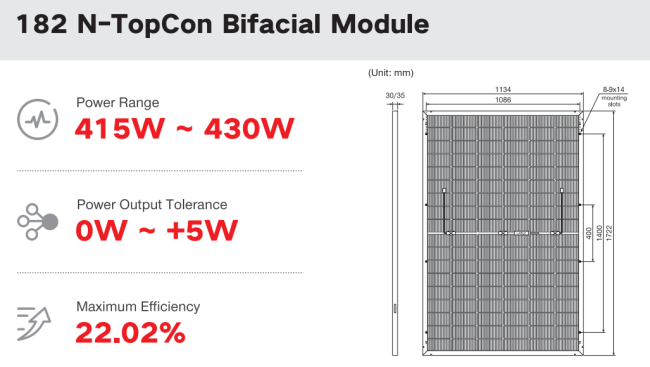

Module Dimension		1722×1134×35mm/30mm
Weight		24.1kg(35mm)/23.4kg(30mm)
Front Glass		2.0mm,highly transparent tempered glass with anti-reflectivecoating
Frame		Anodized Aluminum Alloy
Junction Box		IP68 rated
Cable		4mm²,portrait -+)) .landscape 1 (+()- Length can be customized
Diode Quantity		3 pcs
Front side/Rear side		5400pa/2400pa
Connector		MC4 Compatible
Per Pallet		31pcs(35mm)/36pcs(30mm)
Per Container(40'HQ)		806pcs(35mm)/936pcs(30mm)

Application:

This bifacial module is ideal for ground-mounted solar farms, commercial rooftop installations, and residential applications where space optimization and maximum energy generation are crucial. Its robust construction and advanced cell technology ensure reliable performance in a variety of environments, including areas with low light conditions.

Shipping Methods:

Supports global air and sea shipping.
