PB535 182mm Monocrystalline Silicon Panels for Large-Scale Commercial Solar Installations

Product Description:

The 182 P-type Bifacial Module offers a robust power range of 535W to 550W, ensuring high efficiency and reliable performance. With an impressive maximum efficiency of 21.29%, this module is designed to deliver superior energy output from both sides, maximizing comprehensive efficiency for your solar energy systems. Its innovative structure includes 144 pieces of 182mm mono-crystalline half cells arranged in a 6x24 configuration, housed within a durable anodized aluminum alloy frame. The 2.0mm thick, highly transparent tempered glass with anti-reflective coating further enhances the module's ability to absorb sunlight from all angles, boosting energy generation.

Electrical Performance Parameters |STC
Model Type		535D(HBD) 72(182)	540D(HBD) 72(182)		545D(HBD) 72(182)	550D(HBD) 72(182)
Nominal Max.Power	Pmax(W)	535	540		545	550
Max.Power Voltage	Vmp(V)	41.45	41.61		41.77	41.93
Max.Power Current	Imp(A)	12.91	12.98		13.05	13.12
Open Circuit Voltage	Voc(V)	49.40	49.52		49.64	49.78
Short Circuit Current	Isc(A)	13.80	13.87		13.94	14.01
Module Efficiency	(%)	20.71	20.90		21.10	21.29
Power Output Tolerance	(W)	0~+5W
*STC:Irradiance 1000W/m²,Cell Temperature 25℃,Air Mass AM1.5. ·Power measurement tolerance ±3%.
Electrical Performance Parameters |NMOT
Model Type		535D(HBD) 72(182)	540D(HBD) 72(182)		545D(HBD) 72(182)	550D(HBD) 72(182)
Nominal Max.Power	Pmax(W)	405	408		411	414
Max.Power Voltage	Vmp(V)	38.78	38.88		39.00	39.13
Max.Power Current	Imp(A)	10.42	10.47		10.52	10.57
Open Circuit Voltage	Voc(V)	47.18	47.37		47.56	47.75
Short CircuitCurrent	Isc(A)	11.15	11.21		11.26	11.31
·NMOT:Irradiance 800W/m²,Cell Temperature 20℃,Wind Speed 1m/s. ·Power measurement tolerance ±3%.
Structure Performance
Solar Cell Type		182mm Mono-crystalline (Half Cell)
Solar Cell Arrangement		144pcs(6×24)

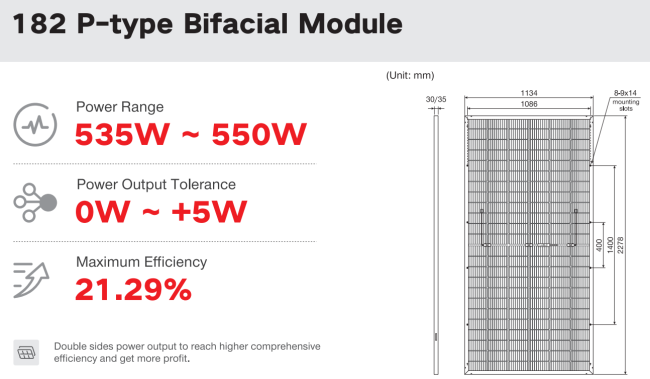

Module Dimension		2278×1134×35mm/30mm
Weight		32.3kg(35mm)/31.2kg(30mm)
Front Glass		2.0mm,highly transparent tempered glass with anti-reflective coating
Frame		Anodized Aluminum Alloy
Junction Box		IP68 rated
Cable		4mm²,portrait 4 (()- ,landscape11 ) (- Lengthcan be customized
Diode Quantity		3 pcs
Front side/Rear side		5400pa/2400pa
Connector		MC4 Compatible
Per Pallet		31pcs(35mm)/36pcs(30mm)
Per Container(40'HQ)		620pcs(35mm)/720pcs(30mm)

Application:

This module is ideal for large-scale commercial solar installations and utility-scale projects where space optimization and maximum output are critical. Its bifacial design makes it perfect for installations where reflective surfaces are available, such as rooftops or ground-mounted systems with light-colored surfaces, to capitalize on the additional energy generation from the rear side.

Shipping Methods:

Supports global air and sea shipping.
