Product Description

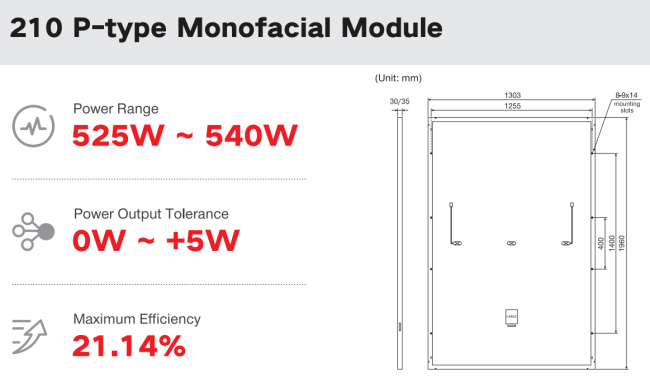

The 210 P-type Monofacial Module offers a power range of 525W to 540W with a maximum efficiency of 21.14%. This module is designed for high performance in a variety of environments, providing consistent and reliable power output with a tolerance of 0W to +5W. The use of 210mm monocrystalline half cells arranged in a 6x18 configuration enhances the module's efficiency and durability, making it ideal for both residential and commercial solar projects. The module's robust construction includes a 3.2mm highly transparent tempered glass front and an anodized aluminum alloy frame, ensuring long-term durability and resistance to environmental factors.
| Electrical Performance Parameters |STC | |||||||
| Model Type | 525D(HPM) 54(210) |
530D(HPM) 54(210 |
535D(HPM) 54(210) |
540D(HPM) 54(210) |
|||
| Nominal Max.Power | Pmax(W) | 525 | 530 | 535 | 540 | ||
| Max.Power Voltage | Vmp(V) | 30.10 | 30.30 | 30.50 | 30.70 | ||
| Max.Power Current | Imp(A) | 17.45 | 17.50 | 17.55 | 17.60 | ||
| OpenCircuitVoltage | Voc(V) | 36.80 | 37.20 | 37.60 | 37.80 | ||
| Short Circuit Current | Isc(A) | 18.34 | 18.38 | 18.42 | 18.46 | ||
| Module Efficiency | (%) | 20.56 | 20.75 | 20.95 | 21.14 | ||
| Power Output Tolerance | (W) | 0~+5W | |||||
| *STC:Irradiance 1000W/m²,Cell Temperature 25℃,Air Mass AM1.5. ·Power measurement tolerance ±3%. |
|||||||
| Electrical Performance Parameters |NMOT | |||||||
| Model Type | 525D(HPM) 54(210) |
530D(HPM) 54(210) |
535D(HPM) 54(210) |
540D(HPM) 54(210) |
|||
| Nominal Max.Power | Pmax(W) | 398 | 402 | 406 | 410 | ||
| Max.Power Voltage | Vmp(V) | 28.33 | 28.54 | 28.74 | 28.94 | ||
| Max.Power Current | Imp(A) | 14.05 | 14.09 | 14.13 | 14.17 | ||
| Open Circuit Voltage | Voc(V) | 34.40 | 34.60 | 34.80 | 35.00 | ||
| Short Circuit Current | Isc(A) | 14.80 | 14.84 | 14.88 | 14.92 | ||
| *NMOT:Irradiance 800W/m²,Cell Temperature 20℃,Wind Speed 1m/s. *Power measurement tolerance ±3%. |
|||||||
| Structure Performance | |||||||
| Solar Cell Type | 210mm Mono-crystalline(Half Cell) | ||||||
| Solar Cell Arrangement | 108pcs(6×18) | ||||||
| Modu|e Dimension | 1960×1303×35mm/30mm | ||||||
| Weight | 28.4kg(35mm)/27.3kg(30mm) | ||||||
| Front Glass | 3.2mm,highly transparent tempered glass with anti-reflective coating |
||||||
| Back Sheet | White | ||||||
| Frame | Anodized Aluminum Alloy | ||||||
| Junction Box | IP68 rated | ||||||
| Cable |               4mm²,portrait ) ,landscape m( ) (-Length can be customized |
||||||
| Diode Quantity | 3 pcs | ||||||
| Front side/Rear side | 5400pa/2400pa | ||||||
| Connector | MC4 Compatible | ||||||
| Per Pallet | 31pcs(35mm)/36pcs(30mm) | ||||||
| Per Container(40'HQ) | 558pcs(35mm)/648pcs(30mm) | ||||||
| Temperature Characteristics | |||||||
| Nominal Module Operating Temperature | 44±2℃ | ||||||
| Temperature Coefficient (Isc) | +0.048% | ||||||
| Temperature Coefficient(Voc) | -0.26% | ||||||
| Temperature Coefficient(Pmax) | -0.34% | ||||||
| Maximum Parameters | |||||||
| Working Temperature | -40~+85℃ | ||||||
| Maximum System Voltage | 1500V DC | ||||||
| Nominal Maximum Fuse Current | 30A | ||||||
Application
This module is suitable for large-scale ground-mounted solar power plants, commercial rooftops, and residential solar installations. Its high efficiency and power output make it an excellent choice for maximizing energy production in limited space. The module's strong mechanical load capacity and resistance to environmental stressors ensure reliable performance even in harsh conditions.
Shipping Methods
Supports global air and sea shipping.
