LSADC-M Series solar charger For Public Commercial Applications
LSADC-M Series Charger Ideal for Public and Commercial Applications
Product Description:

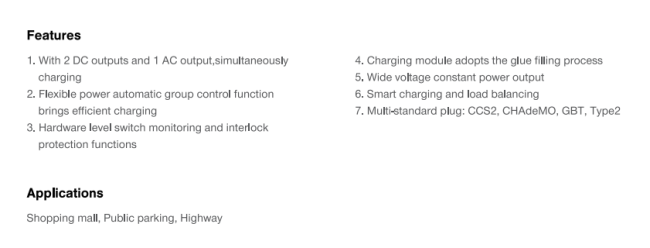

The LSADC-M series is an advanced AC&DC integrated charger designed to deliver a flexible, high-performance charging solution. With multiple output options (2 DC and 1 AC), it enables simultaneous charging, maximizing efficiency. The charger features a wide voltage constant power output, making it suitable for a range of electric vehicles, and it supports smart charging and load balancing. The LSADC-M series is also equipped with a multi-standard plug system (CCS2, CHAdeMO, GBT, Type2) to meet various vehicle charging standards globally. It is housed in a durable galvanized steel enclosure and features advanced protection measures, including hardware level switch monitoring and interlock protection.
| Model | LSADC-M-202/1000-A | LSADC-M-202/1000-B LSADC-M-180/1000-C | LSADC-M-180/1000-D | LSADC-M-180/1000-E | |
| Rated power | 1xCCS2:Max180kW 1xCHAdeMO:Max60kW 1xType2-Max22kW totat202kW | 1xCCS2:Max180kW 1xType2:Max22kW totat:202kW | 1xCCS2;Max180kW 1xCHAdeMo:Max60kW totat:180kW | 2xCCS2:Max180kW totat:180kW | 1xCCS2:Max180kW 1xGBT:Max180kW totat:180kW |
| AC voltage | 400VAC±10% | ||||
| Power supply | 3P+N+PE | ||||
| DC Max current | 1xCCS2:Max200A 1xCHAdeMO;Max125A 1xTyp2:Max32A | 1xCCS2:Max200A 1xType2,Max32A | 1xCCS2:Max200A 1xCHAdeMO:Max125A | 2xCCS2:Max200A | 2xCCS2:Max200A |
| AC/DC voltage | 1xCCS2:200-1000VDC 1xCHAdeMO:200-500VDC 1xType2:400VAC | 1xCCS2:200-1000VDC 1xType2:400VAC | 1xCCS2:200-1000VDC 1xCHAdeMO:200-500 VDC | 2xCCS2:200~1000VDC | 2xCCS2:200~1000VDC |
| Frequency | 50/60Hz | ||||
| Charge plug | CCS2+CHAdeMO+Type2 | CCS2+CCS2+Type2 | CCS2+CHAdeMO | CCS2+CCS2 | CCS2+GBT |
| Cable length | 5m(Optional) | ||||
| Enclosure | Galvanized Steel | ||||
| LED indicator | Green/Yellow/Blue/Red | ||||
| LCD display | 7"color LCD | ||||
| RFID | Non-contact (ISO/IEC14443 A) | ||||
| Start method | QR code/Card/BLE5.0/PnC | ||||
| Interface | BLE5.0/Ethernet/4G/WIFI(Optional) | ||||
| Protocol | OCPP1.6J/2.0J (Optional) | ||||
| Efficiency | ≥95%(Half load and above) | ||||
| Power factor | ≥0.98(Rated load) | ||||
| Voltage accuracy | s±0.5% | ||||
| Current accuracy | S±1% | ||||
| Energy meter | Accuracy level1.0 | ||||
| Emergency stop | Yes | ||||
| Protection grade | IP55 and IK10 | ||||
| Certification | CE,CB | ||||
| Standard | EN/IEC 61851-1,EN/IEC 61851-23,IEC61851-24,EN/IEC 61851-21-1 | ||||
| Installation | Wall mounted/Floor mounted | ||||
| Cooling | Forced air cooling | ||||
| Temperature | -25C~+55℃ | ||||
| Humidity | 5%~95% | ||||
| Atitude | ≤2000m | ||||
| Product size | 850×850×1800(W×D×H,mm) | ||||
| Net weight | 324kg | 324kg | 318kg | 318kg | 318kg |
| Remarks:specifications are subject to change without notice | |||||
Application:
The LSADC-M series is ideal for use in shopping malls, public parking lots, and highway charging stations, providing a powerful and versatile charging solution for public and commercial electric vehicle applications.
Shipping Methods
Supports global air and sea shipping.
