IP65 Hybrid Inverter For Outdoor Installation In Solar Energy Systems
Hybrid Inverter with IP65 Rating for Outdoor Installation in Solar Energy Systems
Product Description:

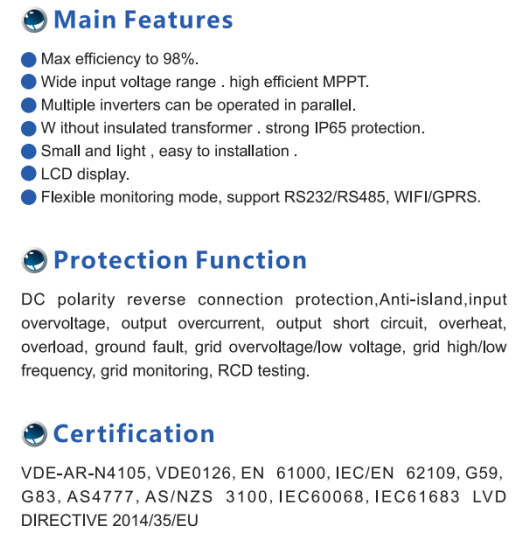

The hybrid inverter is designed to deliver maximum efficiency of up to 98% while supporting wide input voltage ranges with high-efficiency MPPT technology. This product is designed for solar PV systems, allowing multiple inverters to be connected in parallel to increase output capacity. It features strong IP65 protection, making it suitable for outdoor installation, and is small and lightweight for ease of installation. The inverter is compatible with RS232, RS485, and GPRS monitoring options, offering flexible communication modes. This makes it ideal for home, commercial, and industrial solar energy applications.
| DCINPUT | ||||
| Max.DC input power | 3200W | 5400W | 5500W | 10500W |
| Max.DCinput voltage | 500VDC | 500VDC | 850VDC | 850VDC |
| Max.DC input current | 13A | 26A | 15A | 30A |
| Power off/on voltage | 100V/200VDC | 100V/200VDC | 200V/300VDC | 200V/300VDC |
| OUTPUT(AC) | ||||
| Rated Power | 3000W | 5000W | 5000W | 10000W |
| Rated voltage | 110V/230VAC | 110V/230VAC | 380V±40V | 380V±40V |
| Frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| Phase number | Single Phase L+N+PE | Single Phase L+N+PE | Three Phase L+N+PE | Three Phase L+N+PE |
| Power Factor | 1 | 1 | 0.99 | 0.99 |
| Max Current | 13.6A | 23A | 7.5A | 15A |
| CurrentTHD(AT Rated Power) | <3.5% | <3.5% | <3.5% | <3.5% |
| Max Efficiency | 97.3% | 97.6% | 98% | 98% |
| Europe Efficiency | 96% | 97.1% | 97% | 97% |
| STRUCTURE | ||||
| Protection Degree | IP65 | IP65 | IP65 | IP65 |
| Cooling Method | Natural Cooling | Natural Cooling | Interlligent Air Cooling | Interlligent Air Cooling |
| Display | LCD | LCD | LCD | LCD |
| Isolation type | Non-isolated | Non-isolated | Non-isolated | Non-isolated |
| Topology No Transformer NoTransformer No Transformer No Transformer | ||||
| InputTermina | MC4 | MC4 | MC4 | MC4 |
| Output Termina Connector terminals | Connector terminals Connector terminals Connector terminals | |||
| Data interfaces | RS232/RS485 WiFI/GPRS(Optional) |
RS232/RS485 WiFi/GPRS(Optional) |
RS232/RS485 WiFi/GPRS(Optional) |
RS232/RS485 WiFi/GPRS(Optional) |
| GENERAL PARAMETERS | ||||
| Noise <50dB <50dB <50dB <50dB | ||||
| Night power Consumption | <0W | <0W | <0W | <0W |
| Operation temperature Range -10℃-60℃ -10℃~60℃ -10℃~60℃ -10℃~60℃ | ||||
| Storage temperature | -15℃~60℃ | -15℃~60℃ | -15℃~60℃ | -15℃~60℃ |
| Relatve humidity 0~100% 0~100% 0~100% 0~100% | ||||
| Altitude | ≤2000m | ≤2000m | ≤2000m | ≤2000m |
| Size(W*H*D) 335*365*150mm 405*415*190mm 405*560*260mm 420*610*260mm | ||||
| Wei ght | 14kg | 22kg | 38kg | 42kg |
| Note:can be customized according to customer requirements | ||||
Application:
This hybrid inverter is ideal for a variety of solar energy applications, including residential, commercial, and industrial settings. Its ability to operate multiple inverters in parallel and support remote monitoring makes it suitable for both small and large-scale solar power systems. The advanced protection functions, including anti-island, input/output voltage regulation, and grid monitoring, ensure the safety and stability of the energy supply. It is particularly effective in locations with variable grid conditions or where solar energy is the primary energy source.
Shipping Methods
Supports global air and sea shipping.
