Product Description

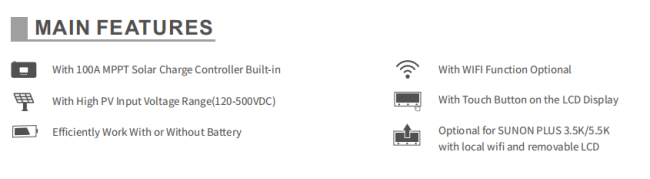

The SUNON ECO Series Hybrid Inverter is a powerful and versatile solution designed for solar energy systems. With pure sine wave output, it ensures high efficiency and reliable performance. The inverter is capable of operating with or without a battery, making it suitable for various applications, including grid-tied or off-grid systems. It supports a wide PV input voltage range (90-450VDC), ensuring compatibility with different solar panel configurations. Integrated with a built-in MPPT solar charge controller, this model optimizes energy harvest and storage, ensuring maximum efficiency. Featuring user-friendly LCD operation, the inverter is easy to monitor and configure, providing flexibility for solar energy storage and distribution.
| MODEL | SUNON PRO 3.5K | SUNONPRO 5.5K |
| Therated power | 3500VA/3500W | 5500VA/5500W |
| BATTERY | ||
| Battery Voltage | 24 VDC | 48 VDC |
| Low Battery Alarming Voltage | 22 VDC | 44VDC |
| Low Battery Cut offProtection Voltage | 21 VDC | 42 VDC |
| Low Battery Recovery Voltage | 23 VDC | 46 VDC |
| Floating Charge Voltage | 27VDC | 54 VDC |
| OverchargeProtection | 32 VDC | 64 VDC |
| INPUT | ||
| Voltage | 230 VAC | |
| Selectable Voltage Range | 90-280VAC(Appliances),170-280VAC(UPS) | |
| Frequency Range | 50 Hz/60 Hz(Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation(Ball.Mode) | 230 VAC±5% | |
| Surge Power | 7000VA | 11000VA |
| No Load Current | 1.0A | 1.1A |
| Efficiency(Peak) | >90% | |
| Transfer Time | 10ms (UPS);20 ms(Appliances) | |
| Waveform | Pure sine wave | |
| MPPT SOLAR CHARGER&ACCHARGER | ||
| Maximum PVArray Power | 5000W | 6000W |
| MPPT Range at Operation Vol. | 120-450VDC | |
| Maximum PVArray OpenCircuitVol. | 500VDC | |
| Number of MPPT Trackers/Max Output Current | 100A | |
| Maximum AC Charge Current | 80A | |
| Maximum Charge Current | 100A | |
| Maximum Efficiency | 98% | |
| BEST PANELCONFIGUTATION | ||
| Best Panel Configuration | 300Wp*9pcs*36V(2700Wp)*2Parallel | 330Wp*9pcs*36V(2970Wp)*2Parallel |
| PHYSICAL | ||
| Dimension,D*W*H(mm) | 481*313*117 | |
| Packing Size,D*W*H(mm) | 543*394*204 | |
| Net Weight(kgs) | 9.8 | 10.5 |
| Gross Weight (kgs) | 11 | 11.7 |
| OPERATING ENVIRONMENT | ||
| Humidity | 5%to 95%Relative Humidity(Non-condensing) | |
| Operating Temperature | 0℃-50℃ | |
Application
The SUNON ECO Series Hybrid Inverter is ideal for residential and commercial solar energy systems. It can be used for both grid-tied and off-grid solar installations, providing reliable power even during grid outages. It is also compatible with various battery types (GEL, AGM, Lithium), making it suitable for energy storage systems. With the built-in WiFi/GPRS module (optional), it offers remote monitoring capabilities via mobile devices, ensuring seamless energy management and efficiency optimization.
Shipping Methods
Supports global air and sea shipping.
