Highly And Flexible SUNPOLO 8.2KW 11KW Hybrid Inverters For Residential Commercial Industrial
Highly and Flexible SUNPOLO 8.2KW SUNPOLO 11KW Hybrid Inverters for Residential Commercial and Industrial
Product Description:

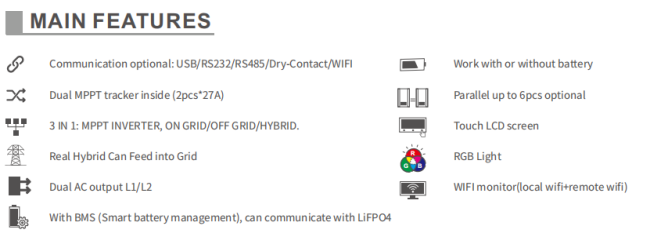

The SUNPOLO 8.2KW & SUNPOLO 11KW Hybrid Inverter is a highly versatile energy solution designed for both on-grid and off-grid applications. Equipped with dual MPPT trackers, it allows optimal performance with a PV input range of 90-450VDC. This inverter offers seamless switching between grid-tie and hybrid operations, ensuring efficient energy conversion with a peak efficiency of up to 96%. Its robust design supports a maximum solar input power of up to 12,000W (for the 8.2KW model) and 11,000W (for the 11KW model), making it perfect for larger installations. The built-in BMS (Battery Management System) ensures compatibility with various battery types, including Lead Acid, Lithium-Ion, and more, providing reliable energy storage and management.
| MODEL | SUNPOL⁰8.2KW | SUNPOLo11KW |
| Basical information | ||
| Rated AC Output Power | 8200W | 11000W |
| Grid-TieOperation | ||
| PVInput (DC) | ||
| NominalDC VoltMax DC Voltage | 360VDC/450VDC | |
| Start-up Voltage/Initial Feeding Voltage | 80VDC | 120VDC |
| MPPT Voltage Range | 90-450VDC | |
| No.of MPPT Tracker/Max.Input Current | 27A*2(MAX40A) | |
| Max.PV Input Power | 12000W(6000W*2) | 11000W(5500W*2) |
| Grid Output (AC) | ||
| Nominal Output Volt | 220Vac/230Vac/240Vac,Single Phase | |
| Output Voltage Range | 184V-265Vac or 195-253V(Selectable) | |
| NominalOutput Current | 40A(Max.2nd Output Current) | 47.8A |
| Power Factor | >0.9 | |
| Efficiency | ||
| Max.Conversion Efficiency(DC/AC) | 96% | |
| Off-Grid Operation | ||
| ACInput (AC) | ||
| AC Start-up Voltage/Auto Restart Volt. | 120Vac-140Vac/180Vac | |
| Acceptable Input Voltage Range | 90-280Vac or 170-280Vac | |
| Max.AC Input Current | 60A | 60A |
| Battery Mode Output(AC) | ||
| Nominal Output Volt | 220Vac/230Vac/240Vac | |
| Waveform | Pure sine wave | |
| Efficiency(DC to AC) | 93% | |
| Battery &Charger | ||
| Battery Type Supported | Lead Acid/NRLA/AGM/Deep Cycle/Gel/Flooded/Tubular/Lithium-lon | |
| Nominal Battery Voltage | 48Vdo | |
| Max Solar Charge Current | 150A | 150A |
| MaxAC Charge Current | 150A | 150A |
| MaxTotal Charge Current | 150A | 150A |
| Genera | ||
| Physica | ||
| ProductsDimension,DXWXH(mm) | 552*422*152 | 552*422*152 |
| Product Net Weight(kgs) | 18.8 | 19.1 |
| Product GrossWeight(kgs) | 20.9 | 21.3 |
| Packing Dimension,D XWXH(mm) | 700mm*510*mm*232mm,1PC/CTN | 696mm*567mm*243mm,1PC/CTN |
| Parallel functions | Yes,MAX.6pcs | Yes,MAX.6pcs |
| Communication Interface | RS232,USB,WIFI | RS232,USB,WFI |
| Environment | ||
| Humidity | 5%to 95%Relatve Humidity(Non-condensing) | |
| Operating Temperature | -10℃ to 50℃ | |
| Storage Temperature | -15℃ to 60℃ | |
Application:
This inverter is ideal for residential, commercial, and industrial applications where high power and flexibility are required. With its ability to work with or without batteries, it can be deployed in areas with unstable grids, providing backup power during outages. Its grid-tied mode offers the ability to feed excess solar power back to the grid, making it a suitable option for energy-conscious users aiming to reduce energy costs and carbon footprint.
