530W Durable Monocrystalline Silicon Panels for Residential and Commercial Rooftop Systems
530W Durable Monocrystalline Silicon Panels for Residential and Commercial Rooftop Systems
Product Description
This series of monocrystalline silicon solar panels offers high efficiency, durable performance, and enhanced resistance to harsh environmental conditions. With half-cell technology, these panels significantly reduce energy losses caused by shading and improve overall performance in weak light environments such as cloudy days or early mornings. The advanced construction materials and innovative design ensure excellent mechanical strength, allowing the panel to withstand wind loads up to 2400 Pa and snow loads up to 5400 Pa. Additionally, these panels incorporate Anti-PID technology, ensuring long-term reliability and lower degradation rates, making them a reliable option for residential and commercial solar projects.
| ELECTRICALPERFORMANCE | ||||||||||||
| ElectricalParametersatStandardTestConditions(STC) | ||||||||||||

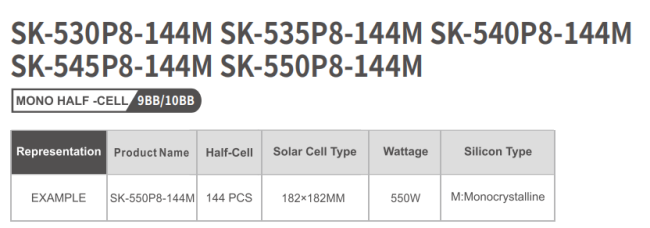

| ModuleType | SK-530P8-144M | SK-535P8-144M | SKSK-540P8-144M | SK-545P8-144M | SK-550P8-144M | |||||||
| PowerOutput(Pmax/W | 530W | 535W | 540W | 545W | 550W | |||||||
| Power Output Tolerances | ±3% | ±3% | ±3% | ±3% | ±3% | |||||||
| ModuleEficiency(m) | 20.50% | 20.70% | 20.89% | 21.09% | 21.30% | |||||||
| VoltageatPmax(Vmp/V) | 40.8V | 41V | 41.19V | 41.38V | 41.57V | |||||||
| Current atPmax(lmp/A | 12.99A | 13.05A | 13.11A | 13.17A | 13.23A | |||||||
| Open-circuitVoltage(Voc/V | 48.81V | 49.02V | 49.21V | 49.43V | 49.62V | |||||||
| Shont-circuitCurrent(isc/A) | 13.83A | 13.88A | 13.93A | 13.98A | 14.03A | |||||||
| STC:1000W/mirradiance,25'℃moduletemperature,AM1.5g SpecturmaccordingtoEN60904-3. | ||||||||||||
| Electricalparameters at NMOT(Irradiance 800W/m2,ambienttemperature 20℃,AM=1.5,wind speed1m) | ||||||||||||
| ModuleType | SSK-530P8-144M | SK-535P8-144M | SK-540P8-144M | SK-545P8-144M | SK-550P8-144M | |||||||
| PowerOutput(Pmax/W) | 394W | 398W | 402W | 405W | 409W | |||||||
| Voltage atPmax(Vmp/M) | 38.5V | 38.6V | 38.8V | 38.9V | 39.0V | |||||||
| Current atPmax(mp/A) | 10.23A | 10.3A | 10.36A | 10.42A | 10.48A | |||||||
| Open-circuitVoltage(Voc/V) | 46.1V | 46.2V | 46.4V | 46.5V | 46.7V | |||||||
| Short-circuitCurrent(Isc/A | 11.06A | 11.12A | 11.17A | 11.23A | 11.29A | |||||||
| ThermalCharacteristics | |||||||
| Nomaloperatingcelltemperature | NOCT | ℃ | 45±2 | ||||
| TemperaturecoeffidencyofPmax | Y | %/'C | -0.35 | ||||
| Temperature coeffidencyofVoc | βvoc | 9%/℃ | -0.27 | ||||
| Temperature coeffidencyoflsc | alsc | %/C | 0.05 | ||||
| Temperature coeffidencyofVmpp | βvmpp | 9%/C | -0.42 | ||||
| Construction Materials | |||
| Frontcoverimaterial/thickness | ow-iron tempered glass/3.2mm | ||
| Cellquantity/material) | 144PCSMonoPerc(182MM) | ||
| Frame(Materials | anodized aluminumalloy/silvericlear | ||
| Junction box(protectiondegree) | ≥IP65 | ||
| Cable length/cross-5ectional area | 300mm/4mm2 | ||
| OperatingConditions | ||
| Max.systemvoltage | 1500Vdc | |
| Max.serdestuseating | 20A | |
| Operatingtemperaturerange | 40'Cto 85'℃ | |
| Max.staticload,front(e.g.snow) | 5400Pa | |
| Max.staticload,back(e.g,wind | 2400Pa | |
| Max.hailstoneimpact(diameter | 25mm/23m/s | |
| General Characteristics | |||||||
| Products Dimension(L/W/H) | 2279*1134*35mm | ||||||
| Weight | 28.5KGS | ||||||
| QTYofper pallet | 3lpes per palle | ||||||
| Packaging boxdimensions | 2330*1150*1270MM | ||||||
| No.ofpalletsfor 40HQcontainers | 20 Pallets(620PCS,GW:940KG5) | ||||||
| Note:Thispubliccation summarizesproductwarrantyandspecications whichare subjecttochangewithoutnotice. | |||||||
Application
These monocrystalline silicon panels are ideal for large-scale solar installations, rooftop systems for both residential and commercial buildings, and solar farms. Their high durability and efficiency make them suitable for areas with variable weather conditions, including high wind and heavy snow. The panels' ability to perform well under weak light conditions ensures maximum power output even in less sunny environments, making them perfect for regions with less direct sunlight.
Shipping Methods
Supports global air and sea shipping.
