465W-485W Monocrystalline Silicon Panels for Residential and Commercial Solar Systems
465W-485W Monocrystalline Silicon Panels for Residential and Commercial Solar Systems
Product Description:

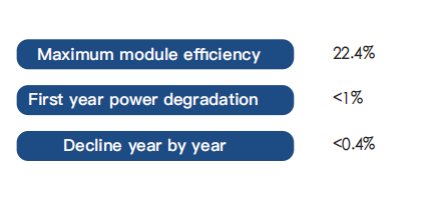

This 465W-485W Monocrystalline photovoltaic module is designed for high efficiency and reliable performance. With a power output up to 485W and an efficiency of 22.4%, it guarantees excellent energy generation even in weak light conditions such as cloudy, morning, or sunset. The module features PID resistance, ensuring long-term reliability and minimal power degradation. It also comes with robust mechanical properties to withstand wind and snow loads, providing durability against extreme environmental conditions.
| Mechanical specifications | |||||
| Cell Type | TOPCON 182*91mm | OPERATING PARAMETR | |||
| No.OfCells | 120 M(6*20) | Max.System Voltage | 1500V/DC | ||
| Junction Box | IP68.3 diodes | Operation Temperature | -40℃-85℃ | ||
| Frame | Anodized frame | Max.Snow Load(Front) | 5400Pa | ||
| Weight | 24Kg±3% | Max.Wind Load(Front) | 3600Pa | ||

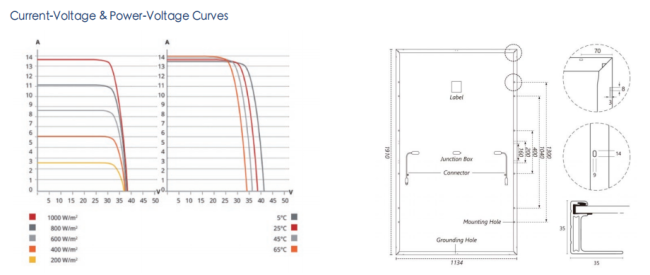

| Dimension | 1910*1134*30mm | NOCT | 45±2℃ | ||
| Cable | 4mm²,350mm in length,canbe customized | Customizablē | AIIblack Double glass | ||
| Glass | Single glass,3.2mm high transmission,antireflection coating | ||||
| Electrical Characteristics | |||||
| Module Type | 120M | ||||
| STC NOCI SIC NOCT SIC NOCT SIC NOCI SIC NOCI | |||||
| Maximum Power(Pmax) | 465W 350W 470W 353W 475W 357W 480W 361w 485W 365W | ||||
| Maximum Power Voltage (Vmp) | 35.02V 32.75V 35.21V 32.92V 35.4V 33.09V 35.59V 33.26V 35.78V 33.41V | ||||
| Maximum Power Current (imp) | 13.28V 10.69V 13.35V 10.73V 13.42V 10.79V 13.49V 10.86V 13.56V 10.93V | ||||
| Open-circuit Voltage (Voc) | 42.23A 40.06A 42.42A 40.2A 42.61A 40.34A 42.8A 40.48A 42.99A 40.6A | ||||
| Short-circuit Curent (lsc) | 13.92A 11.35A 13.98A 11.42A 14.04A 11.49A 14.1A 11.56A 14.16A 11.63A | ||||
| 79.11% 79.26% 79.41% 79.56% 79.70% | |||||
| Module Efficiency SIC(%) |
21.47% 21.70% 21.93% 22.16% 22.39% |
||||
| TemperatureCharacteristcs | |||
| NMOT | 45+2℃ | ||
| Temp Coefficient of ISC | +0.05%/℃ | ||
| Temp Coefficient of VOC | -0.28%℃ | ||
| Temp Coefficientof Pmax | -0.34%℃ | ||
| Modules/Pallet | 36Pieces | ||
| Modules/40Contoiner | 864Pieces | ||
| Pockaging Description | 24Pallets Tota=(36+36)*12=864Pieces | ||
Application:
This photovoltaic module is ideal for both residential and commercial solar energy systems. It is especially suited for installations requiring high power output and efficiency. With enhanced performance in low light, the module can be used in various regions with varying sunlight exposure.
Shipping Methods
Supports global air and sea shipping.
