Intel Celeron J6412 Industrial Fanless PC With Dual LAN And DDR4 Up To 16GB
Intel Celeron J6412 Industrial Fanless PC With Dual LAN And DDR4 Up To 16GB
Celeron J6412 Industrial PC Description:
This industrial fanless mini PC also features a small and compact design that doesn't take up too much space and can be easily installed in a variety of tight locations, providing great flexibility for your industrial layout.
The fanless nature of this mini PC brings a number of advantages. Firstly, it operates in complete silence without any noise interference, making it ideal for noise-sensitive industrial locations such as laboratories and control rooms. Secondly, the fanless design reduces the wear and tear of mechanical parts and the risk of failure, improving the reliability and stability of the device, enabling it to operate stably for long periods of time in harsh industrial environments.
Whether in smart manufacturing, intelligent transportation, energy management or other industrial areas, this industrial fanless mini PC with Intel Celeron J6412 processor will be your ideal choice to provide powerful computing support and reliable performance for your industrial applications.
Celeron J6412 Industrial PC Details:
|
CPU |
Intel Celeron J6412 4 Cores 4 Threads Processor, 2.60 GHz Burst Frequency, 1.5 MB L2 Cache, 10W TDP |
|
GPU |
Intel® UHD Graphics for 10th Gen Intel® Processors |
|
Memory |
1*DDR4 SODIMM RAM, Max Up To 16GB |
|
Hard Disk |
1*SATA SSD/HDD 6GB/S, 1*M2 NGFF 2280 SSD |
|
Ethernet |
2*RTL8111H LAN, Support wake-on LAN, PXE Boot. |
|
Expansion Slot |
1*M2 Slot, Supports WIFI/ Bluetooth module |
|
Operating System |
Windows 10, Windows 11, Linux, etc. |
|
I/O Interface |
2*USB3.0, 2*USB2.0, 2*COM (COM1: RS232, COM2: RS232/485, Set via BIOS), 1*VGA, 1*HDMI, 1*DC12V, 1*SPK, 1*MIC, 1*Power Switch |
|
Power |
1*DC 12V 5A |
|
Material |
Aluminium Alloy |
|
Installation Method |
Support Desktop/ Wall Mount |
|
Size/ Weight |
136mm * 126mm * 37mm/ About 0.65KG |
|
Operating Temperature |
-20℃ ~ +65℃ |
|
Storage Temperature |
-20℃ ~ +75℃ |
|
Operating Humidity |
5% ~ 95% relative humidity (No Condensation) |
Celeron J6412 Industrial PC Processor:
This mini-PC is powered by the Intel Celeron J6412 processor with a powerful 4-core, 4-thread architecture and a burst frequency of up to 2.60 GHz. With a burst frequency of up to 2.60 GHz, it is capable of handling a wide range of complex industrial tasks quickly.
1.5 MB of L2 cache further enhances data processing efficiency and ensures fast system response. With a thermal design power consumption of only 10W, the processor delivers powerful performance with low power consumption.

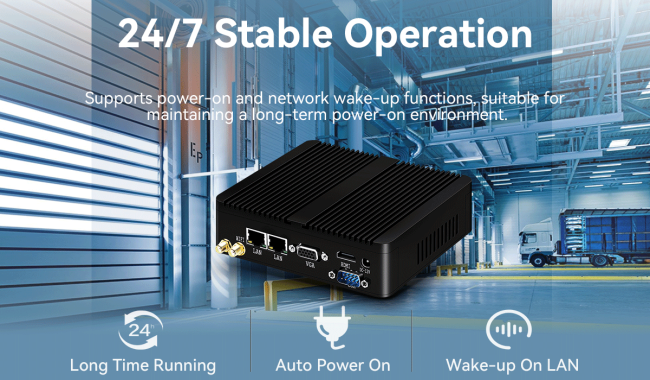

Celeron J6412 Industrial PC Stable Operation:
It supports the automatic power-on function. This means that without human intervention, the device can automatically start up at a preset time or under specific conditions, greatly improving work efficiency. Secondly, our industrial computer is capable of 7×24 hours stable operation.
In addition, the Wake-on-LAN function brings you great convenience. When you need to remotely control or manage the equipment, you can send a wake-up signal through the network, so that the dormant industrial computer can quickly start and enter the work state.

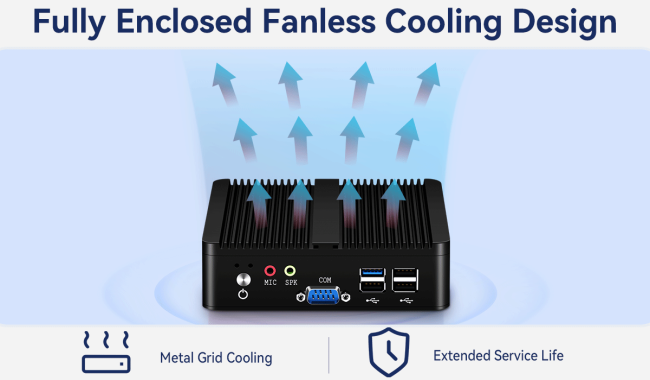

Celeron J6412 Industrial PC Cooling Method:
Fanless grid cooling solution, fully enclosed metal casing design, more to prevent dust from entering the host internal, greatly improving operational stability and extending the service life.

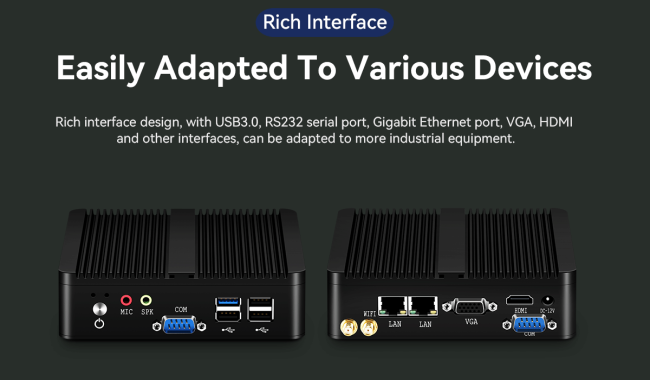

Celeron J6412 Industrial PC Rich Interface:
Equipped with rich interface, such as: 2*USB3.0, 2*USB2.0, 2*COM (COM1: RS232, COM2: RS232/485, Set via BIOS), 1*VGA, 1*HDMI, 1*DC12V, 1*SPK, 1*MIC and 1*Power Switch.
